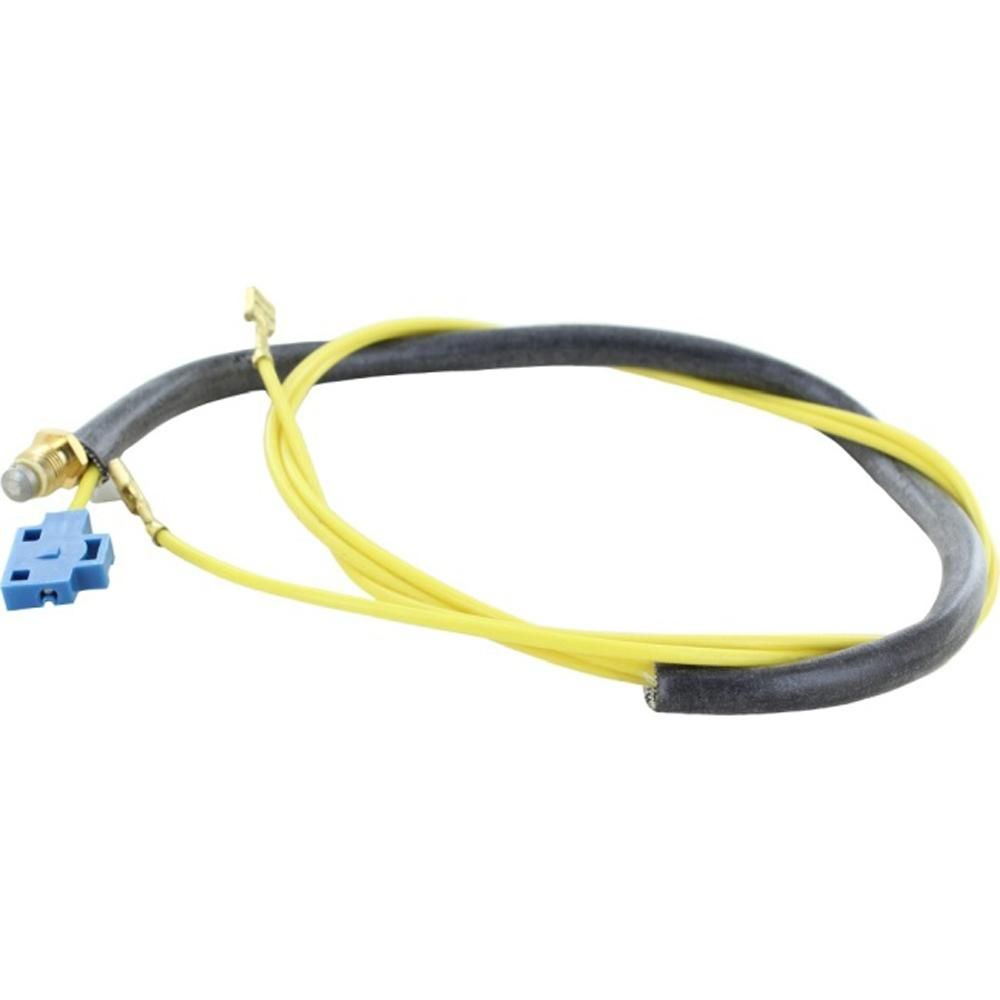

Ideal Thermocouple Assembly Series 3 Concord 056249
Ideal 056249 internal thermocouple assembly for Commercial Concord Series 3 appliances, holding the pilot flame and gas valve open.
At a glance
- Part type: Thermocouple assembly, internal
- Appliance family: Ideal Commercial Concord Series 3
- Also known as 1170796
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£42.88
£35.73 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 056249 is an internal thermocouple assembly used in Ideal Commercial Concord appliances. The thermocouple sits in the pilot flame and generates the small voltage that keeps the gas valve open, so the pilot stays lit and the main burner can fire safely. It is a safety-critical gas component and is listed for Concord Series 3 equipment.
Signs this part needs replacing
- The pilot flame dies as soon as the control knob is released
- The pilot lights but the main burner will not fire
- Repeated lockouts or unexpected shutdowns while the appliance is running
- The pilot flame looks weak, yellow or unstable
- The thermocouple probe is sooted, corroded or has a burnt, discoloured tip
Before you order
- Check the appliance model and series against the compatibility list, as Concord Series 3 and Series 4 assemblies are not interchangeable.
- Note the GC number from the appliance data badge so the correct variant can be confirmed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Thermocouples |
|---|---|
| Appliance family | Commercial Concord Series 3 |
Compliance
| Manufacturer part number (MPN) | 056249 |
|---|---|
| GC number | 790-001 |
| Barcode / EAN | 5022140562496 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1170796 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD C140 SERIES 3 | 41-407-01 | 41-407-01 | — | — |
| IDEAL COMMERCIAL CONCORD C140 SERIES 3A | 41-407-08 | 41-407-08 | — | — |
| IDEAL COMMERCIAL CONCORD C140 SERIES 4 | 41-407-83 | 41-407-83 | — | — |
| IDEAL COMMERCIAL CONCORD C140P SERIES 4 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD C170 SERIES 3 | 41-407-02 | 41-407-02 | — | — |
| IDEAL COMMERCIAL CONCORD C170 SERIES 3A | 41-407-09 | 41-407-09 | — | — |
| IDEAL COMMERCIAL CONCORD C170 SERIES 4 | 41-407-84 | 41-407-84 | — | — |
| IDEAL COMMERCIAL CONCORD C170P SERIES 4 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD C200 SERIES 3 | 41-407-03 | 41-407-03 | — | — |
| IDEAL COMMERCIAL CONCORD C200 SERIES 3A | 41-407-10 | 41-407-10 | — | — |
Showing 10 of 29 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
