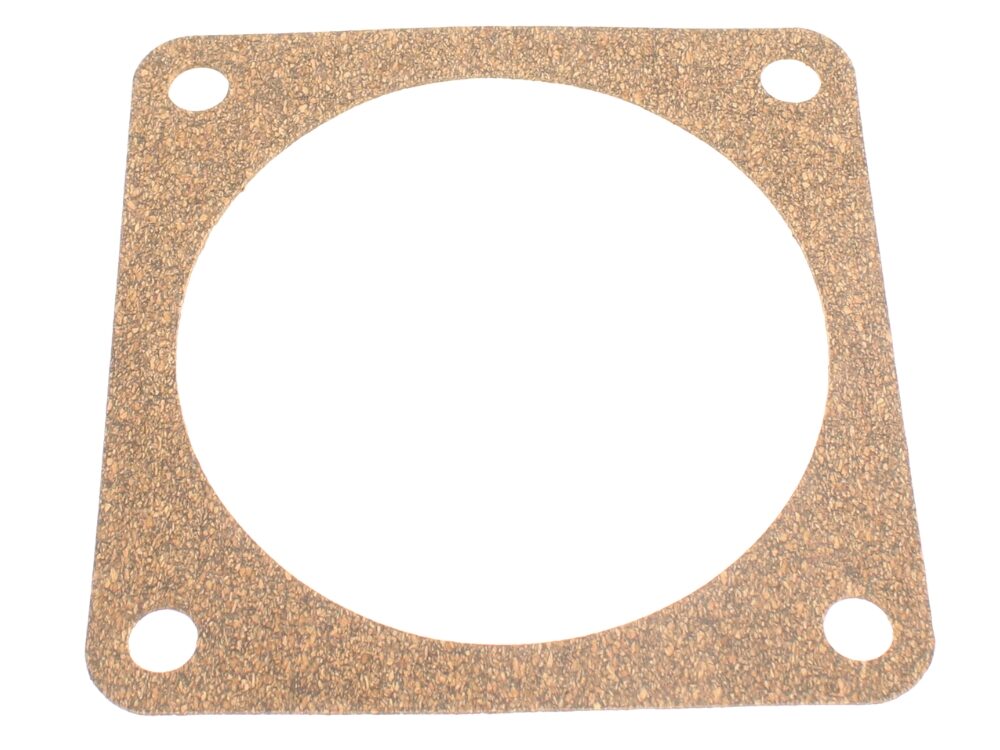

Ideal Venturi Burner Gasket 013761
Venturi burner gasket for Ideal Commercial Super Plus and Module Super Plus DBI boilers, part 013761.
At a glance
- Part type: Venturi / burner gasket
- Also known as 1170542
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£11.45
£9.54 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 013761 is a venturi burner gasket used on Ideal Commercial gas boilers. It sits at the burner/venturi joint, where it seals the air and gas path so the burner receives a correctly proportioned mixture. The part is listed against the Ideal Commercial Super Plus and Module Super Plus DBI ranges.
Signs this part needs replacing
- Visible cracking, hardening or flattening of the gasket material at the burner joint
- Soot deposits or discolouration around the venturi and burner faces
- Unstable or rough burner flame, or a flame that will not hold steady across the burner
- Combustion readings drifting outside the expected range on a service check
- Signs of a leaking joint, such as staining or a smell of gas at the burner assembly
Before you order
- Confirm the GC number on the appliance data badge matches 41-415-68 or 41-415-69 before ordering
- Check the boiler model and serial number against the compatibility list, as the same part number can appear across several Super Plus variants
- Inspect the burner and venturi faces while the joint is open and replace any other seals disturbed during the strip-down
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Venturi / burner gasket |
|---|
Compliance
| Manufacturer part number (MPN) | 013761 |
|---|---|
| GC number | 41-415-69 |
| Barcode / EAN | 5022140137618 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1170542 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IDEAL SUPER PLUS | — | — | — | |
| IDEAL COMMERCIAL MODULE SUPER PLUS DBI | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 DBI | 41-415-68 | 41-415-68 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 200/S | 41-415-68 | 41-415-68 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 300/3 | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 300/3 ALT | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 300/3 AT | 41-415-69 | 41-415-69 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 300/3 DBI | 41-415-69 | 41-415-69 | — | — |
Showing 10 of 15 compatible appliances.
