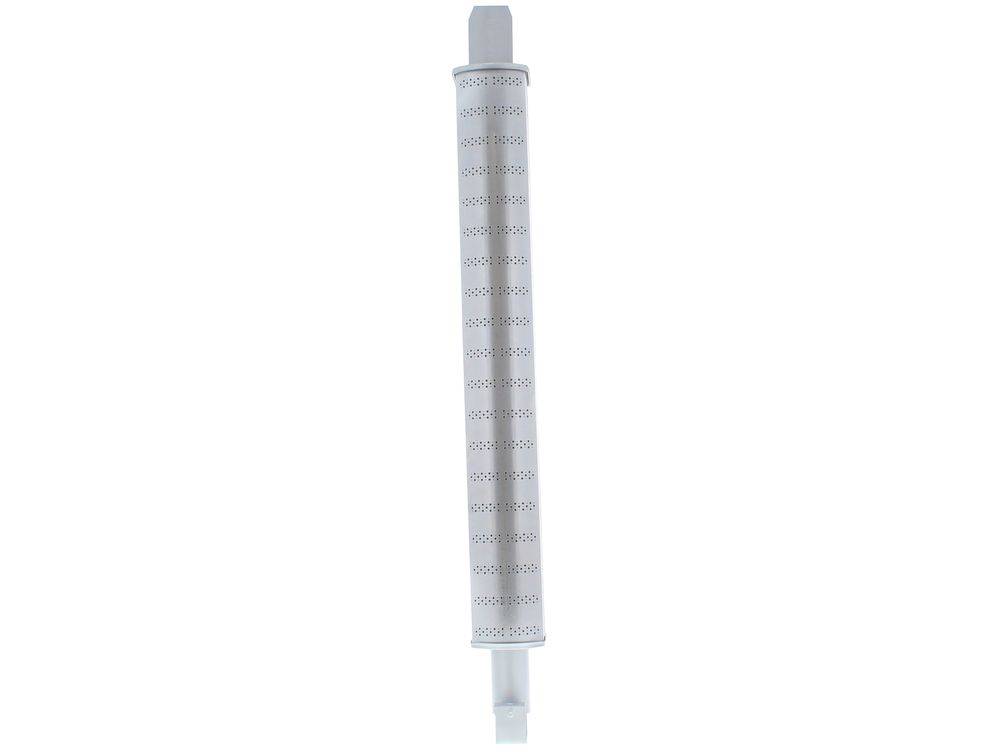

Ideal End Burner Bar 013561
Ideal 013561 end burner bar for Concord CX310 and CX340 commercial boilers, forming part of the burner assembly. Gas part.
At a glance
- Part type: Burner and burner controls
- Also known as 1170507, N7380
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£297.61
£248.01 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 013561 is an end burner bar, a component of the burner assembly used in Ideal commercial Concord CX series boilers. It forms the end section of the burner bar arrangement, where gas is delivered along the burner head for combustion. As a gas-carrying part, it is replaced as part of burner servicing or repair when the existing bar is damaged, distorted or blocked.
Signs this part needs replacing
- Uneven flame pattern along the burner head, with one end running weak or not at all
- Sooting or discolouration concentrated at the end of the burner bar
- Boiler locking out or failing to establish a stable flame on ignition
- Combustion readings drifting outside the expected range for the appliance
- Visible distortion, cracking or blockage in the burner bar itself
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant
- Cross-reference the alternative numbers 1170507 and N7380 if the original marking is worn
- Inspect burner seals and gaskets at the same time, as these are normally disturbed during removal
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner And Burner Controls |
|---|
Compliance
| Manufacturer part number (MPN) | 013561 |
|---|---|
| GC number | 790-048 |
| Barcode / EAN | 5022140135614 |
| Commodity code | 8416 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1170507, N7380 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX310 SERIES 1 | 41-415-12 | 41-415-12 | — | — |
| IDEAL COMMERCIAL CONCORD CX310 SERIES 2 | 41-421-38 | 41-421-38 | — | — |
| IDEAL COMMERCIAL CONCORD CX310P SERIES 1 - PROPANE | 41-415-12 | 41-415-12 | — | — |
| IDEAL COMMERCIAL CONCORD CX310P SERIES 2 - PROPANE | 41-421-38 | 41-421-38 | — | — |
| IDEAL COMMERCIAL CONCORD CX340 SERIES 1 | 41-415-13 | 41-415-13 | — | — |
| IDEAL COMMERCIAL CONCORD CX340 SERIES 2 | 41-421-33 | 41-421-33 | — | — |
| IDEAL COMMERCIAL CONCORD CX340P SERIES 1 - PROPANE | 41-415-13 | 41-415-13 | — | — |
| IDEAL COMMERCIAL CONCORD CX340P SERIES 2 - PROPANE | 41-421-33 | 41-421-33 | — | — |
| IDEAL COMMERCIAL CONCORD CXC110 | 41-421-19 | 41-421-19 | — | — |
| IDEAL COMMERCIAL CONCORD CXC110P - PROPANE | — | — | — |
Showing 10 of 13 compatible appliances.
