Ideal

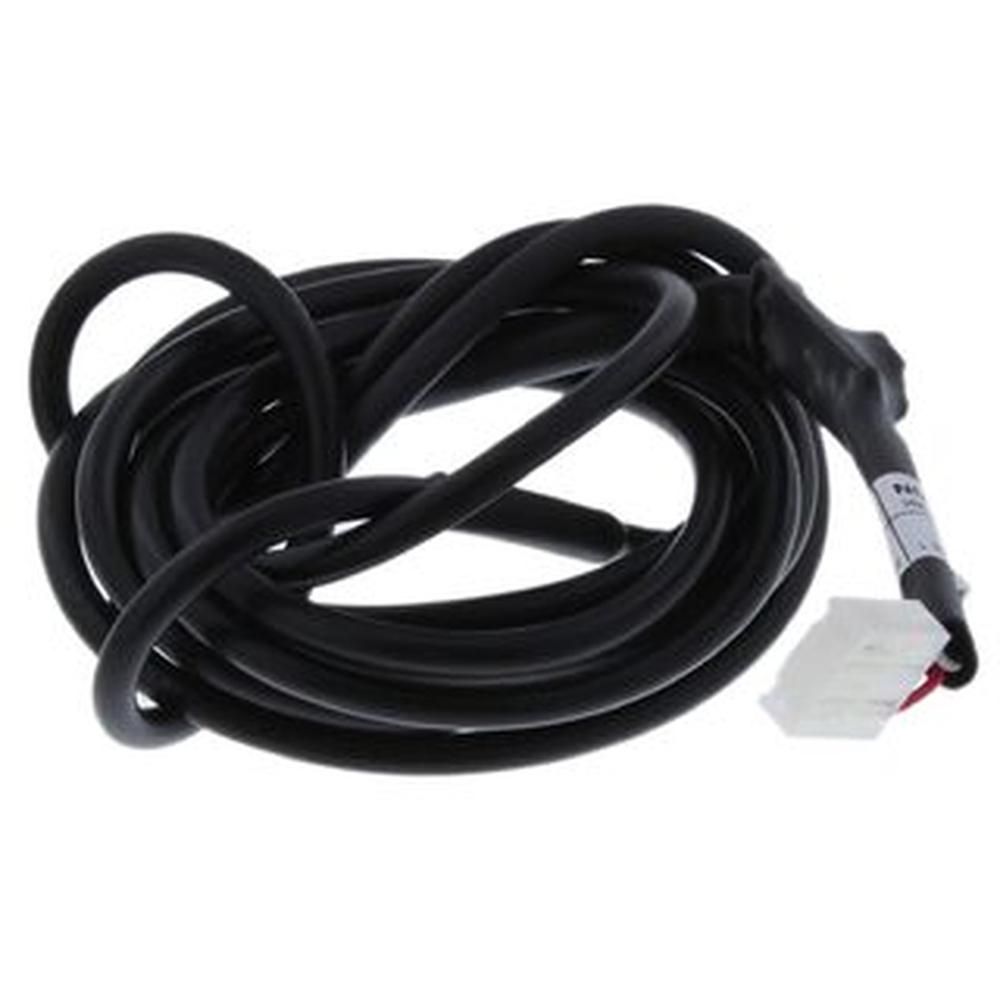

Ideal Sensor Assembly St4 013459
Ideal 013459 St4 sensor assembly for Concord CX commercial boilers, a direct replacement temperature sensor for reliable control.
At a glance
- Part type: Sensor assembly, St4
- Also known as 702001, 1170494
£208.73
£173.94 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 013459 is a St4 sensor assembly supplied by Ideal for use in its commercial boiler range. It forms part of the appliance's temperature sensing and control circuit, feeding readings back to the boiler controls so that firing and modulation respond correctly to demand. It is listed under the thermostats, thermistors and sensors spare part group.
Signs this part needs replacing
- Boiler locks out or fails to fire despite a call for heat
- Temperature readings that are erratic, stuck or clearly out of step with the flow and return
- Fault codes relating to sensor or temperature circuit faults
- Short cycling, where the burner fires and cuts out repeatedly over a short period
- Overheating or inconsistent hot water and heating output on the affected appliance
Before you order
- Confirm the appliance model and GC number against the compatibility list, as several Concord CX variants use different sensor arrangements
- Check the existing sensor and its wiring connector against the part number 013459 before fitting
- Note the alternative numbers 1170494 and 702001, which may appear on older documentation or labels
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 013459 |
|---|---|
| GC number | 790-478 |
| Barcode / EAN | 5022140134594 |
| Alternative numbers | 702001, 1170494 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 100 SERIES 3 | 41-387-66 | 41-387-66 | — | — |
| IDEAL COMMERCIAL CONCORD CX 100P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 40 SERIES 3 | 41-387-60 | 41-387-60 | — | — |
| IDEAL COMMERCIAL CONCORD CX 40P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 70 SERIES 3 | 41-387-63 | 41-387-63 | — | — |
| IDEAL COMMERCIAL CONCORD CX 70P SERIES 3 - PROPANE | — | — | — |
Showing 10 of 19 compatible appliances.
