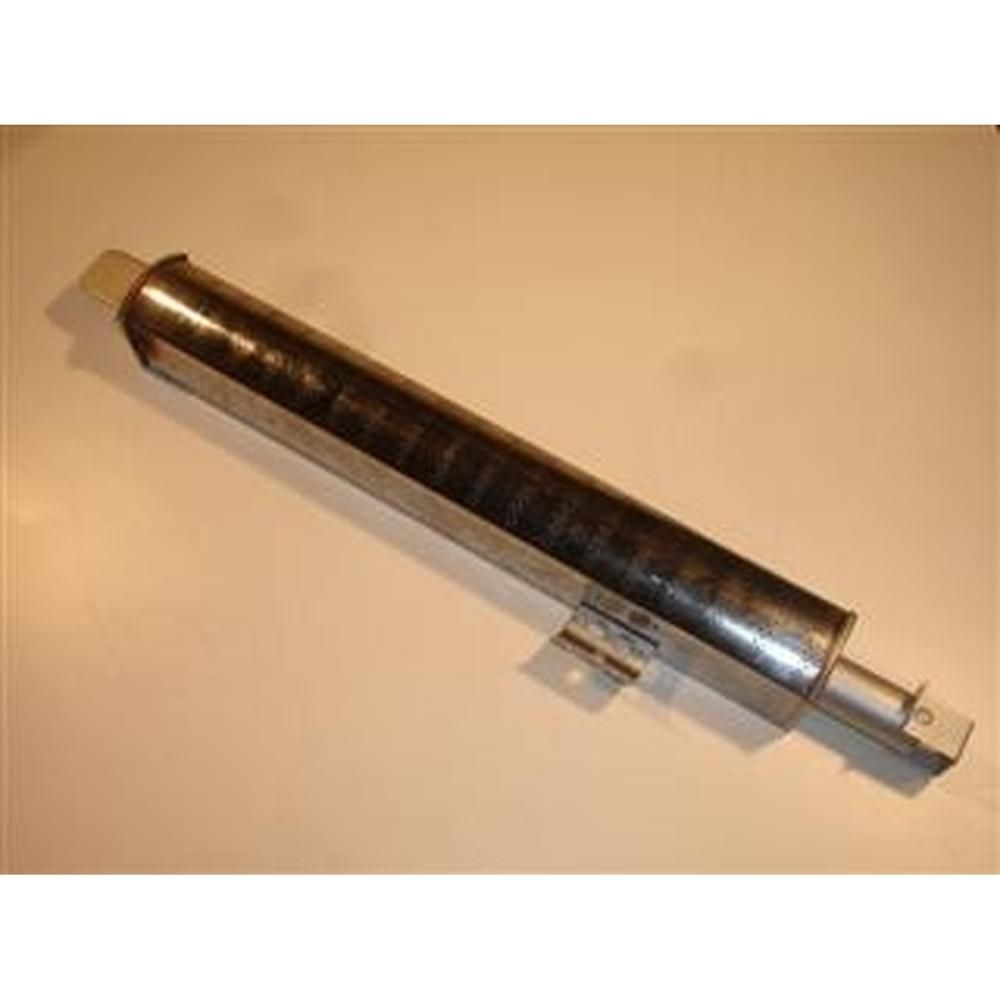

Ideal Burner Assembly CX310 CX340 013215

This is an Ideal burner assembly, supplied as a burner bar for the Concord CX310 and CX340 commercial appliance range. It forms part of the combustion circuit, distributing gas across the burner surface so that a stable, even flame is produced during operation. The part is listed under Ideal spare reference 013215 and carries the alternative number 1170463.

• Uneven flame pattern along the burner bar, with some ports lighting and others staying cool
• Yellow or lazy flame instead of a clean blue flame, often with visible sooting on the burner surface
• Combustion readings drifting out of tolerance, particularly rising carbon monoxide levels
• Repeated lockouts or flame failure on start-up that trace back to the burner rather than the ignition or gas valve
• Visible cracking, distortion, corrosion or blocked ports on the burner bar itself

• Confirm the appliance model and GC number against the compatibility list, as the CX310 and CX340 use different GC references
• Check the existing burner bar against part number 013215 and alternative number 1170463 before ordering
• Inspect any burner gasket or seal at the same time, as these are commonly disturbed when the burner bar is removed
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
