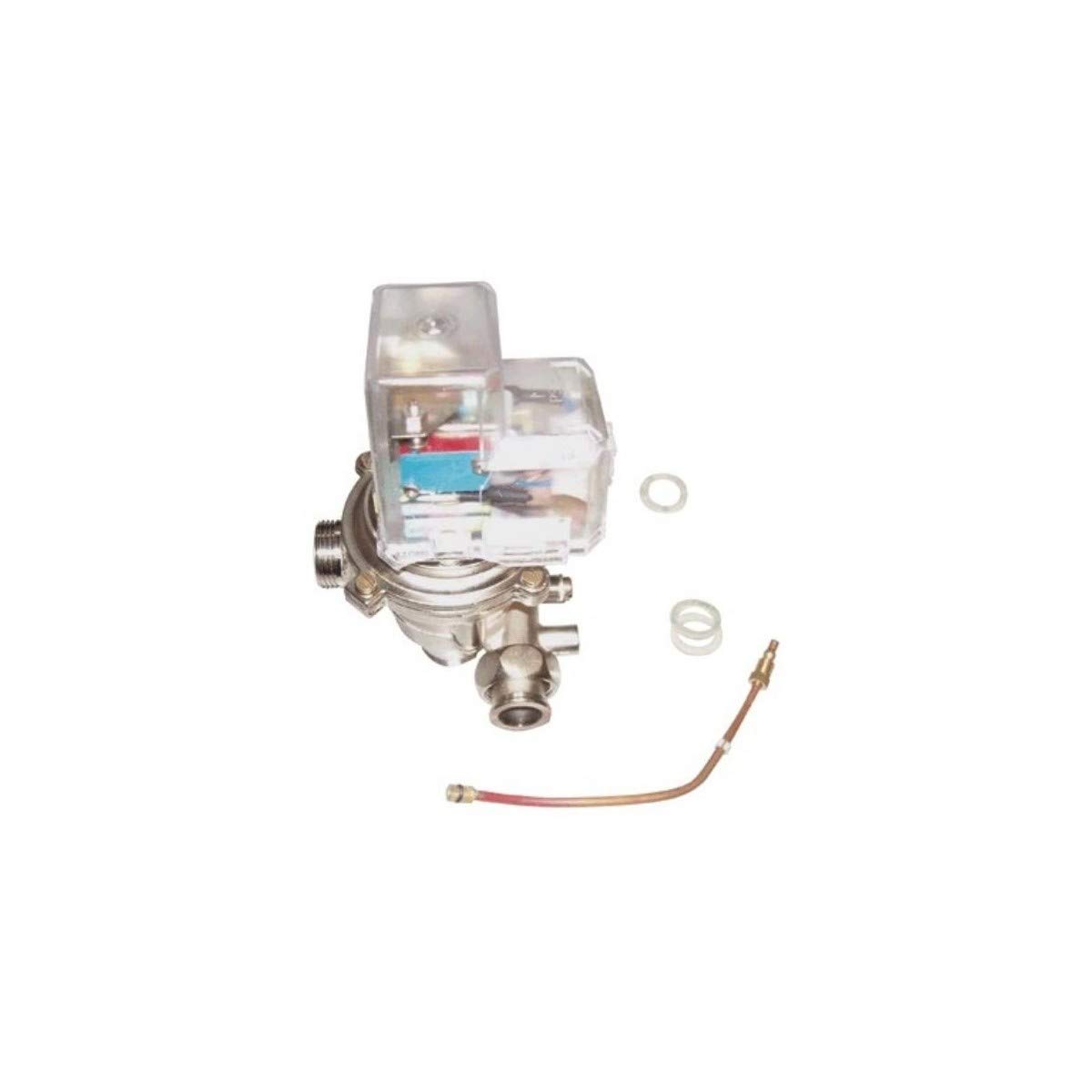

Vaillant Diverter Valve VAILLANT012684
Vaillant diverter valve, part 012684, for Vaillant domestic heating appliances; directs water between heating and hot water circuits.
At a glance
- Part type: Diverter valve
- Also known as 014720, VAILLANT012684
£82.32
£68.60 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 012684 is a diverter valve manufactured by Vaillant for use in its domestic heating appliances. It sits in the hydraulic circuit and switches the flow of heated water between the central heating loop and the domestic hot water plate heat exchanger, so the appliance can serve either duty on demand. The valve is supplied as a single piece.
Signs this part needs replacing
- Domestic hot water runs hot and cold, or the appliance will not hold a steady DHW temperature.
- Heating circuit warms when only hot water is drawn, or radiators heat during a DHW demand.
- No hot water while the heating continues to work normally, or the reverse.
- The valve body leaks from the spindle or the housing joint.
- The actuator moves but the valve does not change over, indicating a stuck or seized internal component.
Before you order
- Check the appliance serial plate and confirm the part number matches 012684 before purchase.
- Compare the old valve against the replacement for port layout, connection size and actuator mounting.
- Inspect the sealing O-rings and gaskets on removal and renew them if they are compressed, hardened or damaged.
Mechanical
| Part type | Diverter valve |
|---|
Compliance
| Manufacturer part number (MPN) | 012684 |
|---|---|
| Barcode / EAN | 4024074047385 |
| Alternative numbers | 4024074415948, VAILLANT012684, VAILLANT012684, 014720, VAILLANT012684, 1372129 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT COMBIcompact VCW 240T (1988-1995) | 47-044-15 | 47-044-15 | — | — |
| VAILLANT COMBIcompact VCW 240XT (1995-1996) | 47-044-15 | 47-044-15 | — | — |
| VAILLANT COMBIcompact VCW 242E (1988-1995) | 47-044-13 | 47-044-13 | — | — |
| VAILLANT COMBIcompact VCW 280T (1988-1995) | 47-044-16 | 47-044-16 | — | — |
| VAILLANT COMBIcompact VCW 280XT (1995 - 1996) | 47-044-16 | 47-044-16 | — | — |
| VAILLANT COMBIcompact VCW 282E (1988-1995) | 47-044-18 | 47-044-18 | — | — |
| VAILLANT THERMOcompact VCW 221T (1988-1996) | 47-044-14 | 47-044-14 | — | — |
| VAILLANT VCW 221T | 47-044-14 | 47-044-14 | — | — |
| VAILLANT VCW 240T | 47-044-15 | 47-044-15 | — | — |
| VAILLANT VCW 240XT | 47-044-15 | 47-044-15 | — | — |
Showing 10 of 14 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VAILLANT appliance manual — COMBIcompact VCW 240T (1988-1995) (GC 47-044-15), COMBIcompact VCW 240XT (1995-1996) (GC 47-044-15), COMBIcompact VCW 280T (1988-1995) (GC 47-044-16), COMBIcompact VCW 280XT (1995 - 1996) (GC 47-044-16), VCW 240T (GC 47-044-15), VCW 240XT (GC 47-044-15), VCW 280T (GC 47-044-16), VCW 280XT (GC 47-044-16)
manualmanualVAILLANT appliance manual — COMBIcompact VCW 242E (1988-1995) (GC 47-044-13), COMBIcompact VCW 282E (1988-1995) (GC 47-044-18), VCW 242E (GC 47-044-13), VCW 282E (GC 47-044-18)
manualNo technical questions yet for this part.
