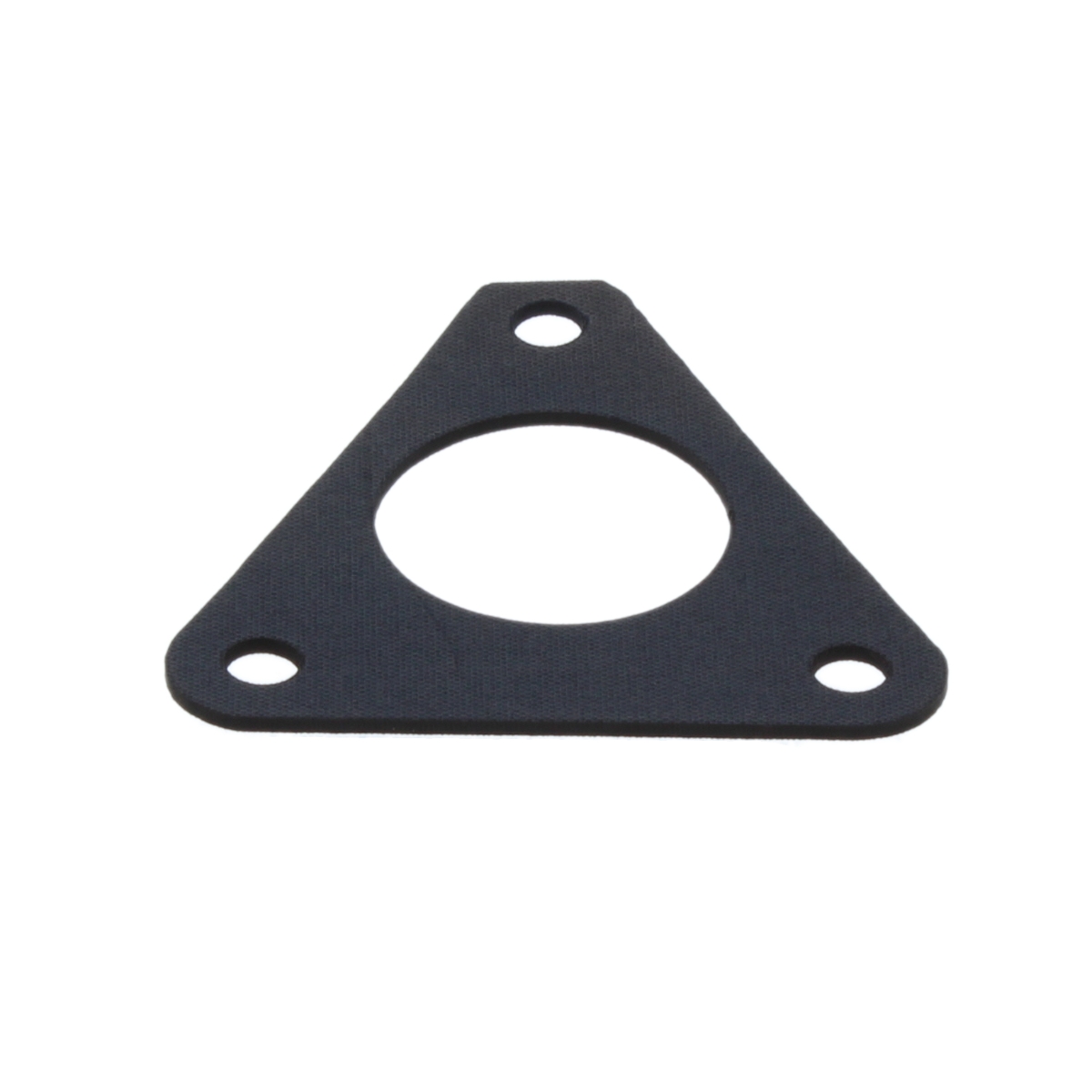

Ideal Triangular Gasket 012593
Ideal 012593 triangular gasket for Commercial Concord Super Series appliances; alternative part number 1170397.
At a glance
- Part type: Gaskets, o-rings, seals and washers
- Also known as 1170397
£12.67
£10.56 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 012593 is a triangular gasket produced by Ideal for its Commercial Concord Super Series appliances. The triangular profile is matched to a specific joint face, so the seal locates positively and stays in position as the assembly is tightened. It is catalogued under gaskets, o-rings, seals and washers.
Signs this part needs replacing
- Weeping or water staining at the joint the gasket seals
- Gasket material visibly hardened, cracked or flattened
- Seal sitting proud of its groove or lifting away when the joint is opened
- Joint continues to weep after being re-tightened
- Discolouration, scale or debris embedded in the sealing face
Before you order
- Confirm your appliance against the compatibility list; this gasket is listed for Concord Super Series 1, 2 and 3 in both horizontal and vertical formats.
- Check the number on the existing gasket or in the appliance documentation. 1170397 is an alternative number used for this item.
- Match the triangular profile to the joint face before fitting, as the shape is specific to its location.
- If other seals on the same assembly are being disturbed during the repair, check whether they also need replacing.
Mechanical
| Part type | Gaskets, o-rings, seals and washers |
|---|
Compliance
| Manufacturer part number (MPN) | 012593 |
|---|---|
| Barcode / EAN | 5022140125936 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1170397 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD SUPER SERIES 1 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 1 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 2 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 2 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 3 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 3 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
