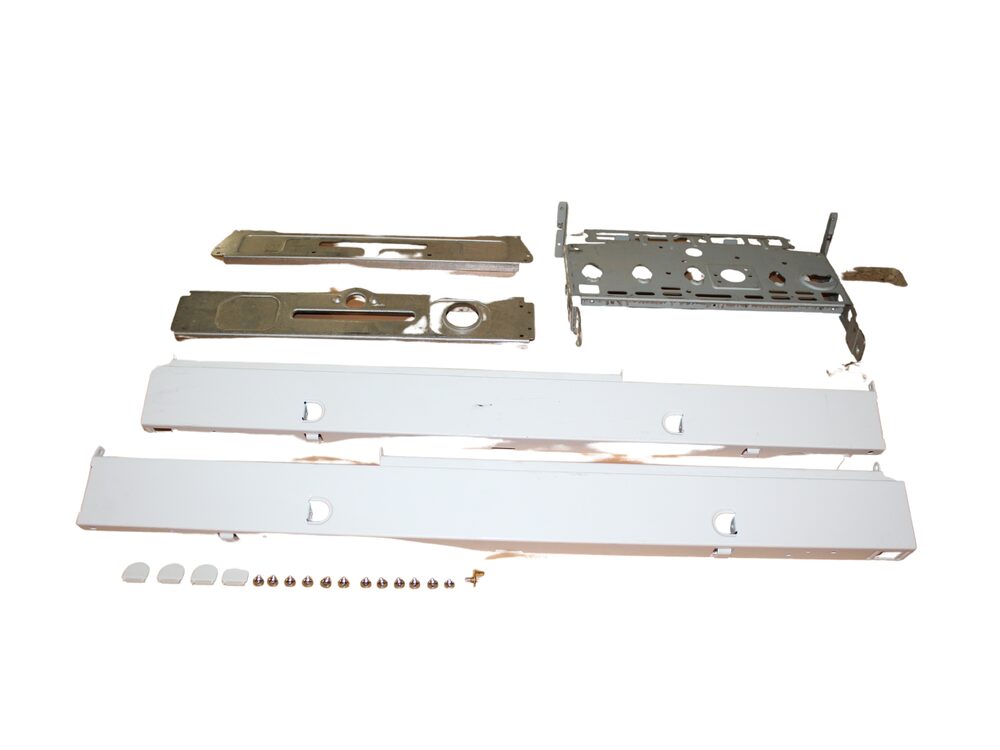

Vokera Frame Assembly 01005365
Vokera frame assembly (01005365) for Linea HE and Linea ONE gas boilers, used in the casing assembly.
At a glance
- Also known as 1531959
£189.79
£158.16 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vokera Frame Assembly 01005365 is a casing component used on Vokera Linea HE and Linea ONE gas boilers. It forms part of the boiler's outer casing structure, holding the panels and covers in correct alignment. It is listed by the manufacturer as a fixing frame within the casing group.
Signs this part needs replacing
- The frame is cracked, bent or otherwise distorted
- Casing panels no longer sit flush or align correctly on the boiler
- Fixing points or mounting tabs on the frame are damaged or stripped
- Corrosion or heat damage is visible on the frame
- The casing feels loose or rattles because the frame no longer holds it securely
Before you order
- Confirm the boiler model and GC number against the fit list above
- Check the existing frame for damage to confirm the assembly is the part at fault
- Verify the part number 01005365 matches the number on the component being replaced
- Isolate the appliance and follow the manufacturer's instructions before removing casing parts
Compliance
| Alternative numbers | 1531959 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA LINEA 25 HE | 47-094-60 | 47-094-60 | — | — |
| VOKERA LINEA 25 HE LPG | 47-094-61 | 47-094-61 | — | — |
| VOKERA LINEA 28 HE | 47-094-89 | 47-094-89 | — | — |
| VOKERA LINEA 30 HE | 47-094-62 | 47-094-62 | — | — |
| VOKERA LINEA 30 HE LPG | 47-094-63 | 47-094-63 | — | — |
| VOKERA LINEA 32 HE | 47-094-90 | 47-094-90 | — | — |
| VOKERA LINEA 35 HE | 47-094-64 | 47-094-64 | — | — |
| VOKERA LINEA 35 HE LPG | 47-094-65 | 47-094-65 | — | — |
| VOKERA LINEA 36 HE | 47-094-91 | 47-094-91 | — | — |
| VOKERA LINEA ONE | 47-364-03 | 47-364-03 | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VOKERA appliance manual — LINEA 25 HE (GC 47-094-60), LINEA 25 HE LPG (GC 47-094-61), LINEA 30 HE (GC 47-094-62), LINEA 30 HE LPG (GC 47-094-63), LINEA 35 HE (GC 47-094-64), LINEA 35 HE LPG (GC 47-094-65)
manualmanualVOKERA appliance manual — LINEA 28 HE (GC 47-094-89), LINEA 32 HE (GC 47-094-90), LINEA 36 HE (GC 47-094-91)
manualmanualVOKERA appliance manual — LINEA ONE (GC 47-364-03)
manualNo technical questions yet for this part.
