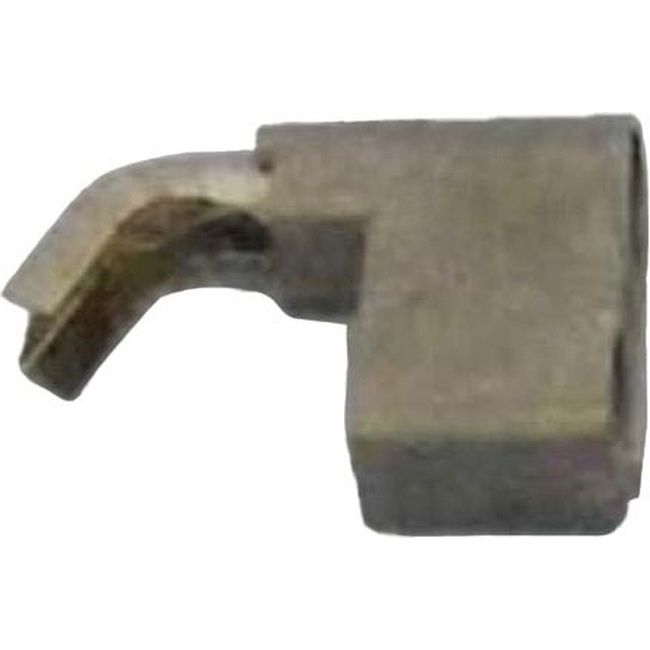

Ideal Burner Bracket Assembly 004984
Ideal 004984 burner bracket assembly for Classic FF and Elan 2 NF gas boilers, holding the pilot burner in position.
At a glance
- Part type: Burner bracket assembly (pilot burner)
- Also known as 1170312
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£22.32
£18.60 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 004984 is a burner bracket assembly used to mount and locate the pilot burner inside the combustion chamber of Ideal gas boilers. It is a factory-supplied Ideal component that forms part of the pilot burner arrangement, keeping the burner in its correct position relative to the main burner and the ignition path. The bracket is listed under Ideal part type Pilot Burners and carries GC number 397-933.
Signs this part needs replacing
- The pilot flame lights but will not hold, or extinguishes shortly after ignition
- The pilot flame is weak, yellow or visibly displaced from its correct position
- Sooting or scorching around the pilot area, suggesting the burner is misaligned
- Visible corrosion, cracking or distortion of the bracket
- Repeated lockouts on start-up that trace back to pilot positioning rather than the flame sensing circuit
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct bracket for your model
- Confirm the existing bracket carries 004984 or the alternative number 1170312 before ordering
- Inspect the pilot injector, electrode and any seals in the pilot assembly while access is available, as these are commonly disturbed during replacement
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Burner Bracket |
|---|
Compliance
| Manufacturer part number (MPN) | 004984 |
|---|---|
| GC number | 397-933 |
| Barcode / EAN | 5022140049843 |
| Commodity code | 8416 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1170312 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC FF 2 100 | 41-349-71 | 41-349-71 | — | — |
| IDEAL CLASSIC FF 250P | 41-387-07 | 41-387-07 | — | — |
| IDEAL CLASSIC FF 260P | 41-387-08 | 41-387-08 | — | — |
| IDEAL CLASSIC FF 275P | 41-387-09 | 41-387-09 | — | — |
| IDEAL CLASSIC FF LX 230 | 41-387-24 | 41-387-24 | — | — |
| IDEAL CLASSIC FF LX 240 | 41-387-25 | 41-387-25 | — | — |
| IDEAL CLASSIC FF LX 250 | 41-387-26 | 41-387-26 | — | — |
| IDEAL CLASSIC FF LX 250P | 41-387-30 | 41-387-30 | — | — |
| IDEAL CLASSIC FF LX 260 | 41-387-27 | 41-387-27 | — | — |
| IDEAL CLASSIC FF LX 260P | 41-387-31 | 41-387-31 | — | — |
Showing 10 of 125 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — CLASSIC FF 2 100 (GC 41-349-71), CLASSIC FF LX 230 (GC 41-387-24), CLASSIC FF LX 240 (GC 41-387-25), CLASSIC FF LX 250 (GC 41-387-26), CLASSIC FF LX 260 (GC 41-387-27), CLASSIC FF LX 270 (GC 41-387-28), CLASSIC FF LX 280 (GC 41-387-29)
manualmanualIDEAL appliance manual — CLASSIC FF 250P (GC 41-387-07), CLASSIC FF 260P (GC 41-387-08), CLASSIC FF 275P (GC 41-387-09), CLASSIC FF LX 250P (GC 41-387-30), CLASSIC FF LX 260P (GC 41-387-31), CLASSIC FF LX 275P (GC 41-387-32)
manualmanualIDEAL appliance manual — CLASSIC FF230 (GC 41-387-02), CLASSIC FF240 (GC 41-387-03), CLASSIC FF250 (GC 41-387-04), CLASSIC FF260 (GC 41-387-05), CLASSIC FF280 (GC 41-387-06), CLASSIC NF LX 230 (GC 41-387-24), CLASSIC NF LX 240 (GC 41-387-25), CLASSIC NF LX 250 (GC 41-387-26), CLASSIC NF LX 260 (GC 41-387-27), CLASSIC NF LX 270 (GC 41-387-28), CLASSIC NF LX 280 (GC 41-387-29), CLASSIC NF230 (GC 41-387-01), CLASSIC NF240 (GC 41-387-02), CLASSIC NF250 (GC 41-387-03), CLASSIC NF260 (GC 41-387-04), CLASSIC NF270 (GC 41-387-05), CLASSIC NF280 (GC 41-387-06)
manualmanualIDEAL appliance manual — CLASSIC LX RS230 (GC 41-387-33), CLASSIC LX RS240 (GC 41-387-34), CLASSIC LX RS250 (GC 41-387-35), CLASSIC LX RS260 (GC 41-387-36), CLASSIC RS230 (GC 41-387-10), CLASSIC RS240 (GC 41-387-11), CLASSIC RS245P (GC 41-387-14), CLASSIC RS250 (GC 41-387-12), CLASSIC RS255P (GC 41-387-15), CLASSIC RS260 (GC 41-387-13)
manualmanualIDEAL appliance manual — CLASSIC LX RS245P (GC 41-387-37), CLASSIC LX RS255P (GC 41-387-38)
manualmanualIDEAL appliance manual — CLASSIC SLIMLINE FF230 (GC 41-387-74), CLASSIC SLIMLINE FF240 (GC 41-387-75), CLASSIC SLIMLINE FF250 (GC 41-387-76), CLASSIC SLIMLINE FF260 (GC 41-387-77)
manualmanualIDEAL appliance manual — ELAN 2 CF230 (GC 41-429-56), ELAN 2 CF240 (GC 41-429-57), ELAN 2 CF250 (GC 41-429-58), ELAN 2 CF260 (GC 41-429-59)
manualmanualIDEAL appliance manual — ELAN 2 NF230 (GC 41-429-60), ELAN 2 NF240 (GC 41-429-61), ELAN 2 NF250 (GC 41-429-62), ELAN 2 NF260 (GC 41-429-63), ELAN 2 NF280 (GC 41-429-64)
manualmanualIDEAL appliance manual — ELAN 2 RS230 (GC 41-429-51), ELAN 2 RS240 (GC 41-429-52), ELAN 2 RS250 (GC 41-429-53), ELAN 2 RS260 (GC 41-429-54), ELAN 2 RS275 (GC 41-429-55)
manualmanualIDEAL appliance manual — HENRAD WH FF LX30 (GC 41-349-94), HENRAD WH FF LX40 (GC 41-349-95), HENRAD WH FF LX50 (GC 41-349-96), HENRAD WH FF LX60 (GC 41-349-97), HENRAD WH FF LX70 (GC 41-349-98), HENRAD WH FF LX80 (GC 41-349-99), HENRAD WH FF100 (GC 41-349-93)
manualmanualIDEAL appliance manual — HENRAD WH FF30 (GC 41-349-87), HENRAD WH FF40 (GC 41-349-88), HENRAD WH FF50 (GC 41-349-89), HENRAD WH FF60 (GC 41-349-90), HENRAD WH FF70 (GC 41-349-91), HENRAD WH FF80 (GC 41-349-92)
