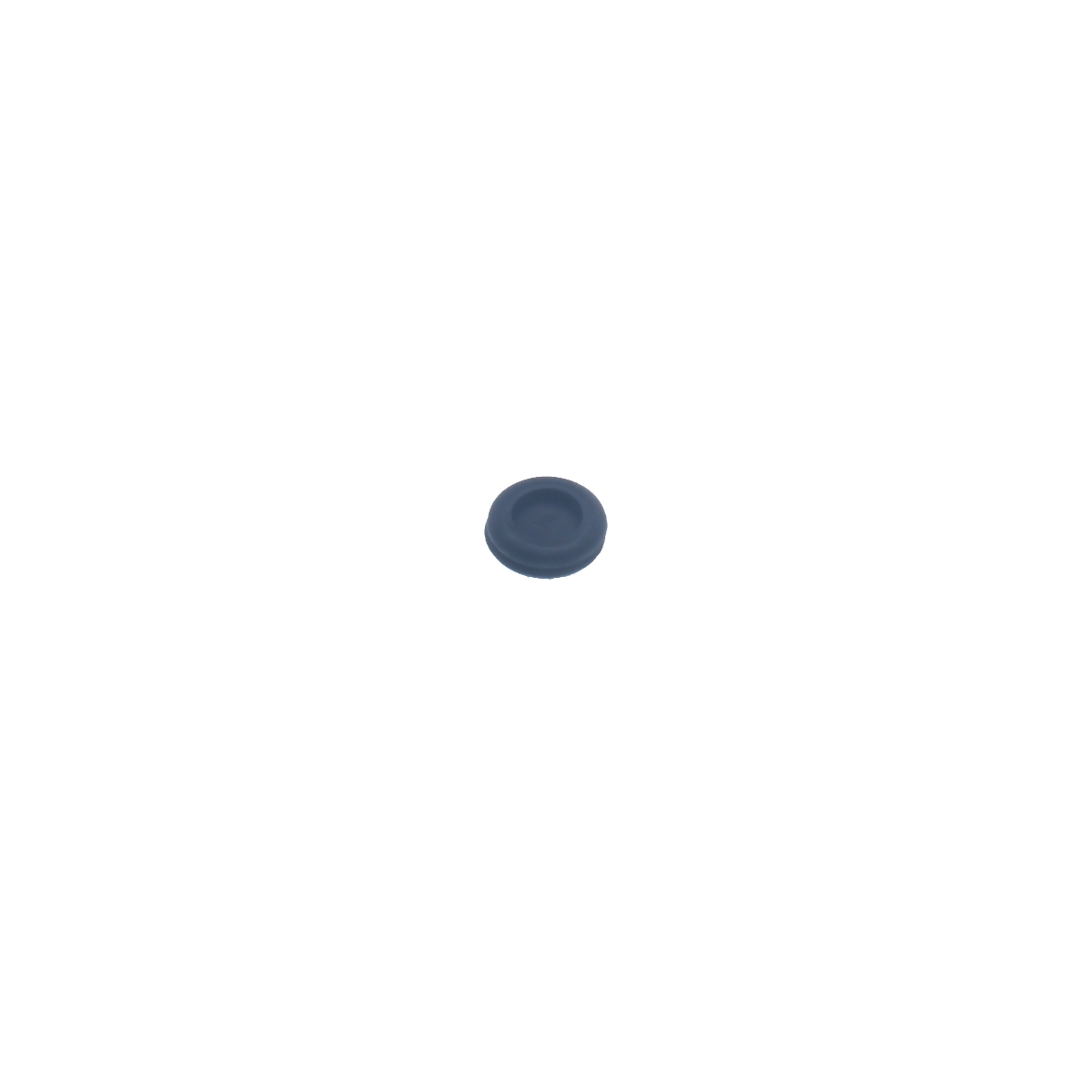

Ideal Diaphragm Grommet 004944
Ideal 004944 diaphragm grommet, a sealing spare for Ideal Classic FF boilers, also listed under alternative number 1170307.
At a glance
- Part type: Grommet
- Also known as 1170307
Showing prices
£4.32
£3.60 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 004944 is a diaphragm grommet, a small sealing component used in the diaphragm assembly of Ideal Classic FF boilers. It seats the diaphragm against its housing so the pressure-sensing side of the assembly stays sealed in service. The part is supplied by Ideal as a direct replacement for the original fitted item.
Signs this part needs replacing
- Water or air weeping from around the diaphragm housing
- Visible cracking, hardening or flattening of the grommet where it seats
- Loss of pressure or erratic operation traced to the diaphragm assembly
- Discolouration or perishing of the rubber after long service
- A grommet that no longer sits squarely in its recess when the housing is opened
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the model
- Confirm the existing part number and any alternative number marked on the old component
- Inspect the surrounding diaphragm and seals while the housing is open, as these are often replaced at the same time
- Have the appliance reassembled and checked by a competent engineer before returning it to service
Mechanical
| Part type | Grommets |
|---|
Compliance
| Manufacturer part number (MPN) | 004944 |
|---|---|
| GC number | 793-961 |
| Barcode / EAN | 5022140049447 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1170307 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC FF 2 100 | 41-349-71 | 41-349-71 | — | — |
| IDEAL CLASSIC FF 250P | 41-387-07 | 41-387-07 | — | — |
| IDEAL CLASSIC FF 260P | 41-387-08 | 41-387-08 | — | — |
| IDEAL CLASSIC FF 275P | 41-387-09 | 41-387-09 | — | — |
| IDEAL CLASSIC FF LX 230 | 41-387-24 | 41-387-24 | — | — |
| IDEAL CLASSIC FF LX 240 | 41-387-25 | 41-387-25 | — | — |
| IDEAL CLASSIC FF LX 250 | 41-387-26 | 41-387-26 | — | — |
| IDEAL CLASSIC FF LX 250P | 41-387-30 | 41-387-30 | — | — |
| IDEAL CLASSIC FF LX 260 | 41-387-27 | 41-387-27 | — | — |
| IDEAL CLASSIC FF LX 260P | 41-387-31 | 41-387-31 | — | — |
Showing 10 of 66 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — CLASSIC FF 2 100 (GC 41-349-71), CLASSIC FF LX 230 (GC 41-387-24), CLASSIC FF LX 240 (GC 41-387-25), CLASSIC FF LX 250 (GC 41-387-26), CLASSIC FF LX 260 (GC 41-387-27), CLASSIC FF LX 270 (GC 41-387-28), CLASSIC FF LX 280 (GC 41-387-29)
manualmanualIDEAL appliance manual — CLASSIC FF 250P (GC 41-387-07), CLASSIC FF 260P (GC 41-387-08), CLASSIC FF 275P (GC 41-387-09), CLASSIC FF LX 250P (GC 41-387-30), CLASSIC FF LX 260P (GC 41-387-31), CLASSIC FF LX 275P (GC 41-387-32)
manualmanualIDEAL appliance manual — CLASSIC FF230 (GC 41-387-02), CLASSIC FF240 (GC 41-387-03), CLASSIC FF250 (GC 41-387-04), CLASSIC FF260 (GC 41-387-05), CLASSIC FF280 (GC 41-387-06), CLASSIC NF LX 230 (GC 41-387-24), CLASSIC NF LX 240 (GC 41-387-25), CLASSIC NF LX 250 (GC 41-387-26), CLASSIC NF LX 260 (GC 41-387-27), CLASSIC NF LX 270 (GC 41-387-28), CLASSIC NF LX 280 (GC 41-387-29), CLASSIC NF230 (GC 41-387-01), CLASSIC NF240 (GC 41-387-02), CLASSIC NF250 (GC 41-387-03), CLASSIC NF260 (GC 41-387-04), CLASSIC NF270 (GC 41-387-05), CLASSIC NF280 (GC 41-387-06)
manualmanualIDEAL appliance manual — CLASSIC LX RS230 (GC 41-387-33), CLASSIC LX RS240 (GC 41-387-34), CLASSIC LX RS250 (GC 41-387-35), CLASSIC LX RS260 (GC 41-387-36), CLASSIC RS230 (GC 41-387-10), CLASSIC RS240 (GC 41-387-11), CLASSIC RS245P (GC 41-387-14), CLASSIC RS250 (GC 41-387-12), CLASSIC RS255P (GC 41-387-15), CLASSIC RS260 (GC 41-387-13)
manualmanualIDEAL appliance manual — CLASSIC LX RS245P (GC 41-387-37), CLASSIC LX RS255P (GC 41-387-38)
manualmanualIDEAL appliance manual — CLASSIC RS 30 (GC 41-429-35), CLASSIC RS 40 (GC 41-429-36), CLASSIC RS 50 (GC 41-429-37), CLASSIC RS 60 (GC 41-429-38)
manualmanualIDEAL appliance manual — CLASSIC RS 50P, CLASSIC RS 60P
manualmanualIDEAL appliance manual — CLASSIC SLIMLINE FF230 (GC 41-387-74), CLASSIC SLIMLINE FF240 (GC 41-387-75), CLASSIC SLIMLINE FF250 (GC 41-387-76), CLASSIC SLIMLINE FF260 (GC 41-387-77)
manualmanualIDEAL appliance manual — HENRAD WH FF LX30 (GC 41-349-94), HENRAD WH FF LX40 (GC 41-349-95), HENRAD WH FF LX50 (GC 41-349-96), HENRAD WH FF LX60 (GC 41-349-97), HENRAD WH FF LX70 (GC 41-349-98), HENRAD WH FF LX80 (GC 41-349-99), HENRAD WH FF100 (GC 41-349-93)
manualmanualIDEAL appliance manual — HENRAD WH FF30 (GC 41-349-87), HENRAD WH FF40 (GC 41-349-88), HENRAD WH FF50 (GC 41-349-89), HENRAD WH FF60 (GC 41-349-90), HENRAD WH FF70 (GC 41-349-91), HENRAD WH FF80 (GC 41-349-92)
manualNo technical questions yet for this part.
