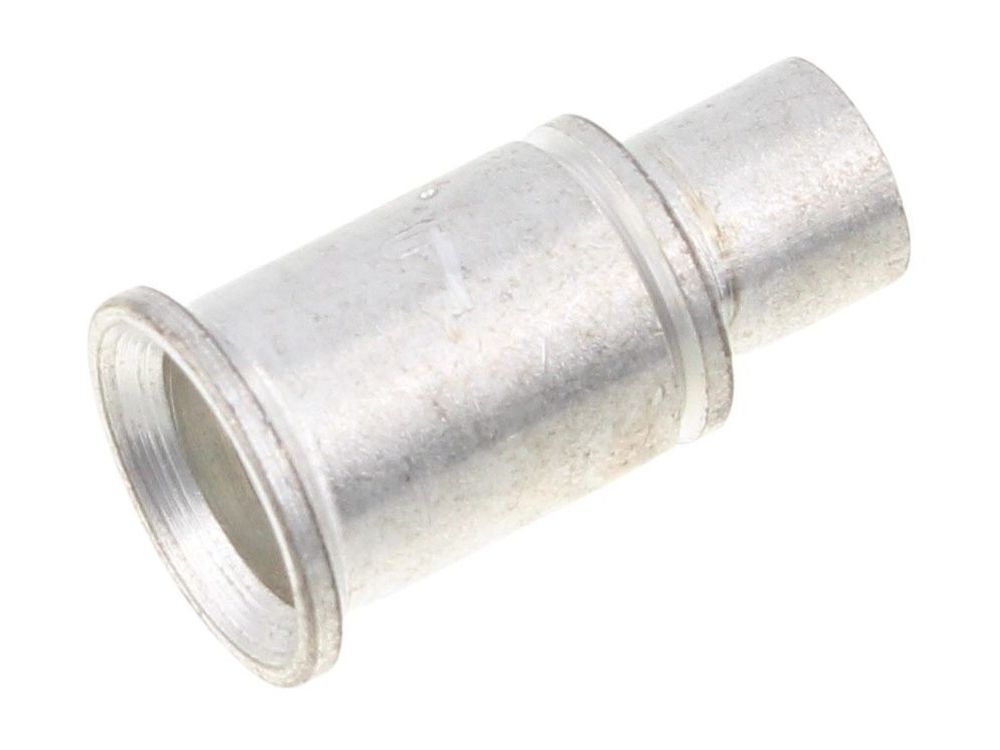

Ideal Pilot Injector Mexico Super 2/3 004590
Ideal 004590 pilot injector for Mexico Super 2, Mexico Super 3 and Concord CX Series 3 appliances, metering gas flow to the pilot burner. GC 791-014.
At a glance
- Part type: Pilot injector
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£8.71
£7.26 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 004590 is a pilot injector that meters the gas supply to the pilot burner on a range of Ideal domestic and commercial appliances. It sits in the pilot burner assembly and controls the small standing flame that lights the main burner when there is a call for heat. The part is used across the Ideal Mexico Super 2, Mexico Super 3 and Concord CX Series 3 families.
Signs this part needs replacing
- The pilot flame will not light, or lights only weakly and will not hold.
- The pilot flame burns yellow or lifts away from the burner, with sooting around the pilot assembly.
- The appliance locks out repeatedly, or the pilot extinguishes shortly after the main burner fires.
- The injector orifice is restricted by debris, oxide or carbon build-up, reducing gas flow to the pilot.
- Visible damage, distortion or wear at the injector orifice.
Before you order
- Confirm the GC number on the appliance data badge matches one of the numbers listed for this part.
- Check the appliance model and series before ordering; the Mexico Super 2, Mexico Super 3 and Concord CX Series 3 ranges do not all share the same pilot injector.
- Inspect the pilot burner assembly and the injector seating for debris or damage while access is available.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pilot injector |
|---|
Compliance
| Manufacturer part number (MPN) | 004590 |
|---|---|
| GC number | 791-014 |
| Barcode / EAN | 5022140045906 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ELAN 2 40FP | — | — | — | |
| IDEAL ELAN 2 50FP | — | — | — | |
| IDEAL ELAN 2 60FP | — | — | — | |
| IDEAL ELAN 2 80FP | — | — | — | |
| IDEAL IDEAL : ELAN 2 40FP PROPANE | — | — | — | |
| IDEAL IDEAL : ELAN 2 50FP PROPANE | — | — | — | |
| IDEAL IDEAL : ELAN 2 60FP PROPANE | — | — | — | |
| IDEAL IDEAL : ELAN 2 80FP PROPANE | — | — | — | |
| IDEAL IDEAL : MEXICO 2 BED SUPER CF100P PROPANE | — | — | — | |
| IDEAL IDEAL : MEXICO 2 BED SUPER CF125P PROPANE | — | — | — |
Showing 10 of 54 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CX 100P SERIES 3 - PROPANE, CONCORD CX 40P SERIES 3 - PROPANE, CONCORD CX 50P SERIES 3 - PROPANE, CONCORD CX 60P SERIES 3 - PROPANE, CONCORD CX 70P SERIES 3 - PROPANE, CONCORD CX 80P SERIES 3 - PROPANE, CONCORD CX 90P SERIES 3 - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100P - PROPANE, CONCORD CXA 40P - PROPANE (GC 41-387-78), CONCORD CXA 50P - PROPANE (GC 41-387-79), CONCORD CXA 60P - PROPANE (GC 41-387-80), CONCORD CXA 70P - PROPANE (GC 41-387-81), CONCORD CXA 80P - PROPANE (GC 41-387-82), CONCORD CXA 90P - PROPANE (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 100H - PROPANE, CONCORD CXAP 110H - PROPANE, CONCORD CXAP 120H - PROPANE, CONCORD CXAP 40H - PROPANE, CONCORD CXAP 50H - PROPANE, CONCORD CXAP 60H - PROPANE, CONCORD CXAP 70H - PROPANE, CONCORD CXAP 80H - PROPANE, CONCORD CXAP 90H - PROPANE
manualmanualIDEAL appliance manual — MEXICO SUPER 3 CF100P (GC 41-349-24), MEXICO SUPER 3 CF125P (GC 41-349-25), MEXICO SUPER 3 CF140P (GC 41-349-26)
manualmanualIDEAL appliance manual — MEXICO SUPER 3 RS100P (GC 41-349-36)
manualmanualIDEAL appliance manual — SPRINT 80FP
manualNo technical questions yet for this part.
