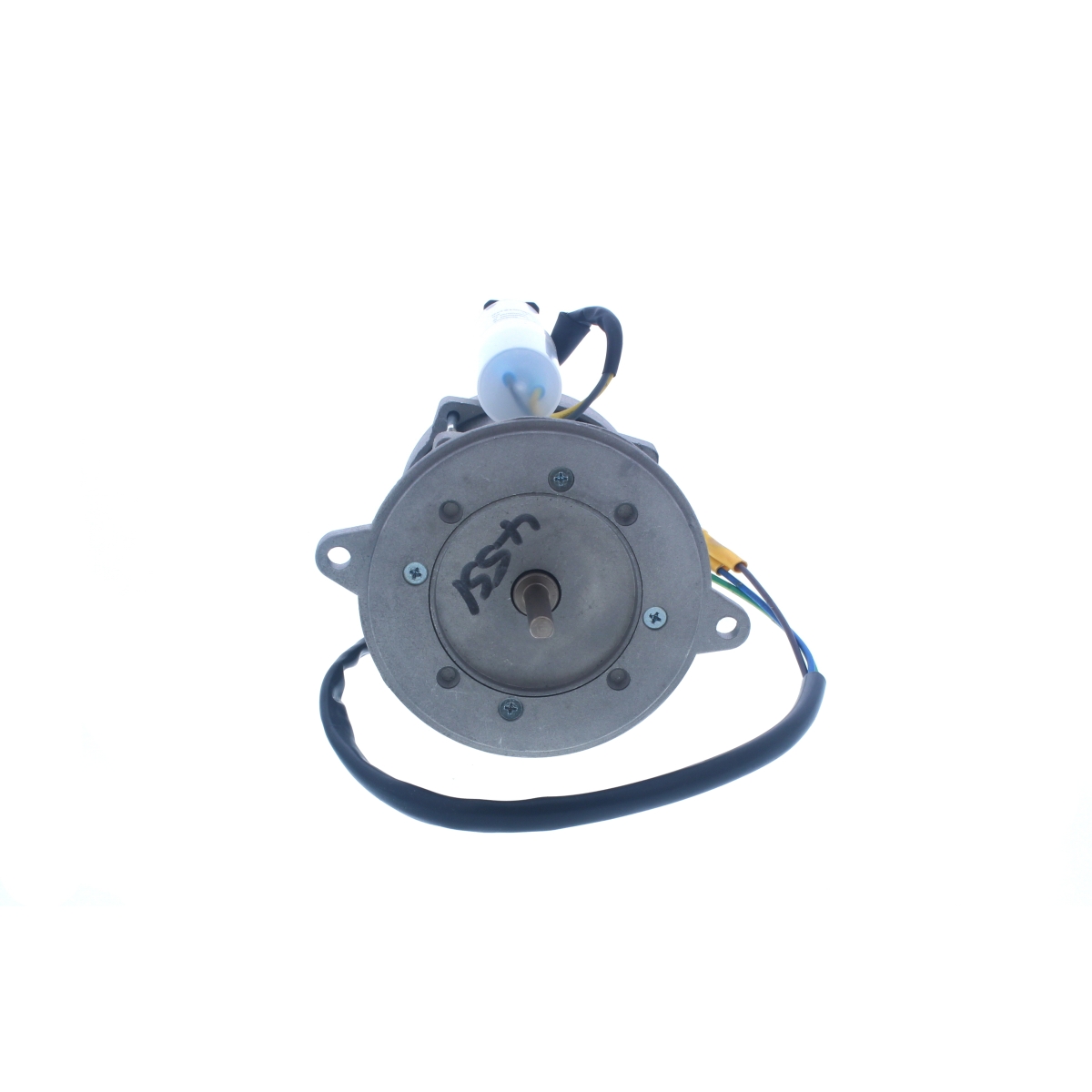

Ideal Fan Motor Assembly Super Plus 004551
Ideal 004551 fan motor assembly for Super Plus and Module Super Plus DBI commercial boilers, moving combustion air in and flue gases out.
At a glance
- Part type: Fan motor assembly
- Also known as 1170227
£765.29
£637.74 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 004551 is a fan motor assembly used on Ideal commercial Super Plus and Module Super Plus DBI appliances. The fan draws fresh air into the combustion chamber so the gas can burn correctly, then carries the products of combustion away to the flue. Because it sits at the heart of the combustion and exhaust path, a failing fan will usually stop the boiler firing or lock it out.
Signs this part needs replacing
- Boiler locks out or fails to fire, with a fan or air pressure related fault code showing
- Grinding, rumbling or scraping noise from the fan area on start-up
- Fan runs intermittently, slows down or stops altogether
- Repeated lockouts after reset, particularly once the appliance has warmed up
- Visible damage, play or stiffness when the fan impeller is turned by hand
Before you order
- Check the appliance GC number and model plate against the compatibility list before ordering, as the same appliance family can use more than one fan variant
- Confirm the existing fan carries 004551 or the alternative number 1170227
- Inspect the fan gasket and sealing washers on removal and replace them if they are compressed or perished
Mechanical
| Part type | Motors |
|---|
Compliance
| Manufacturer part number (MPN) | 004551 |
|---|---|
| GC number | 41-415-69 |
| Barcode / EAN | 5022140045517 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1170227 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IDEAL SUPER PLUS | — | — | — | |
| IDEAL COMMERCIAL MODULE SUPER PLUS DBI | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 DBI | 41-415-68 | 41-415-68 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 200/S | 41-415-68 | 41-415-68 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 300/3 | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 300/3 ALT | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 300/3 AT | 41-415-69 | 41-415-69 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 300/3 DBI | 41-415-69 | 41-415-69 | — | — |
Showing 10 of 15 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
