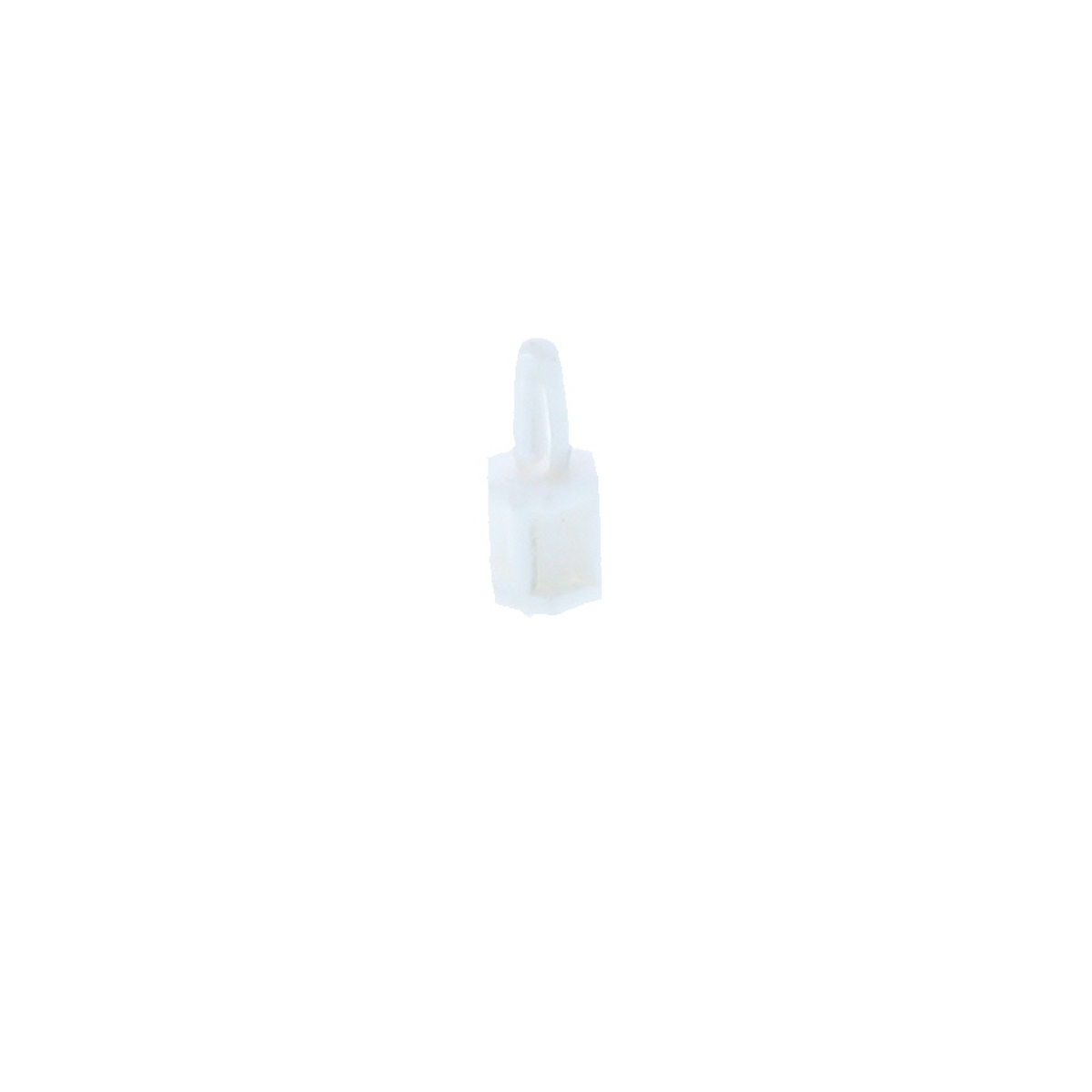

Ideal PCB Support Clip TCBS-6 004420
Ideal 004420 PCB support clip (TCBS-6) that holds the printed circuit board in place on Ideal British/Scottish Gas RD2 and other commercial boilers.
At a glance
- Part type: Clips, pins and springs
- Also known as 1170211
Showing prices
£3.83
£3.19 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 004420 is a PCB support clip, referenced TCBS-6, used to hold the printed circuit board securely in its mounting position inside the boiler. The PCB is the boiler's central control, monitoring and managing operation through the sensors, switches and thermostats connected to it. This clip is supplied as an Ideal Commercial Boiler Spares component.
Signs this part needs replacing
- The printed circuit board sits loose or shifts within its mounting position
- The clip is cracked, snapped or has lost its retaining tension
- Intermittent faults traced back to poor board seating or vibration
- The clip is missing following earlier service or board replacement work
Before you order
- Check the GC number on the appliance data badge against the compatibility list
- Confirm the boiler model and serial number before ordering
- Inspect the board and its mounting points for damage that may have caused the clip to fail
Mechanical
| Part type | Clips, pins and springs |
|---|
Compliance
| Manufacturer part number (MPN) | 004420 |
|---|---|
| GC number | E26-407 |
| Barcode / EAN | 5022140044206 |
| Commodity code | 3926 90 97 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1170211 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL BRITISH/SCOTTISH GAS RD2 100 | 41-387-58 | 41-387-58 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD2 125 | 41-387-59 | 41-387-59 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD2 40 | 41-387-53 | 41-387-53 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD2 4100 | 41-392-72 | 41-392-72 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD2 4125 | 41-392-73 | 41-392-73 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD2 440 | 41-392-33 | 41-392-33 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD2 450 | 41-392-34 | 41-392-34 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD2 460 | 41-392-35 | 41-392-35 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD2 470 | 41-392-36 | 41-392-36 | — | — |
| IDEAL BRITISH/SCOTTISH GAS RD2 480 | 41-392-37 | 41-392-37 | — | — |
Showing 10 of 72 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — BRITISH/SCOTTISH GAS RD2 100 (GC 41-387-58), BRITISH/SCOTTISH GAS RD2 125 (GC 41-387-59)
manualmanualIDEAL appliance manual — BRITISH/SCOTTISH GAS RD2 40 (GC 41-387-53), BRITISH/SCOTTISH GAS RD2 50 (GC 41-387-54), BRITISH/SCOTTISH GAS RD2 60 (GC 41-387-55), BRITISH/SCOTTISH GAS RD2 70 (GC 41-387-56), BRITISH/SCOTTISH GAS RD2 80 (GC 41-387-57)
manualmanualIDEAL appliance manual — BRITISH/SCOTTISH GAS RD2 4100 (GC 41-392-72), BRITISH/SCOTTISH GAS RD2 4125 (GC 41-392-73)
manualmanualIDEAL appliance manual — BRITISH/SCOTTISH GAS RD2 440 (GC 41-392-33), BRITISH/SCOTTISH GAS RD2 450 (GC 41-392-34), BRITISH/SCOTTISH GAS RD2 460 (GC 41-392-35), BRITISH/SCOTTISH GAS RD2 470 (GC 41-392-36), BRITISH/SCOTTISH GAS RD2 480 (GC 41-392-37)
manualmanualIDEAL appliance manual — MEXICO CF 440 SLIMLINE (GC 41-392-89)
manualmanualIDEAL appliance manual — MEXICO FF 4100 SUPER (GC 41-392-31), MEXICO FF 4125 SUPER (GC 41-392-32)
manualmanualIDEAL appliance manual — MEXICO FF 440 SUPER (GC 41-392-26), MEXICO FF 450 SUPER (GC 41-392-27), MEXICO FF 460 SUPER (GC 41-392-28), MEXICO FF 470 SUPER (GC 41-392-29), MEXICO FF 480 SUPER (GC 41-392-30)
manualmanualIDEAL appliance manual — MEXICO RS 445 SLIMLINE (GC 41-392-88)
manualmanualIDEAL appliance manual — MEXICO SUPER CF 4120 (GC 41-392-86), MEXICO SUPER CF 4140 (GC 41-392-87), MEXICO SUPER CF 495 (GC 41-392-85)
manualmanualIDEAL appliance manual — MEXICO SUPER CF 445 (GC 41-392-81), MEXICO SUPER CF 455 (GC 41-392-82), MEXICO SUPER CF 465 (GC 41-392-83), MEXICO SUPER CF 475 (GC 41-392-84)
manualmanualIDEAL appliance manual — MEXICO SUPER FF100 (GC 41-349-83), MEXICO SUPER FF125 (GC 41-349-84)
manualmanualIDEAL appliance manual — MEXICO SUPER FF40 (GC 41-349-78), MEXICO SUPER FF50 (GC 41-349-79), MEXICO SUPER FF60 (GC 41-349-80), MEXICO SUPER FF70 (GC 41-349-81), MEXICO SUPER FF80 (GC 41-349-82)
manualmanualIDEAL appliance manual — MEXICO SUPER RS 4100 (GC 41-392-79), MEXICO SUPER RS 4125 (GC 41-392-80), MEXICO SUPER RS 485 (GC 41-392-78)
manualmanualIDEAL appliance manual — MEXICO SUPER RS 440 (GC 41-392-74), MEXICO SUPER RS 450 (GC 41-392-75), MEXICO SUPER RS 460 (GC 41-392-76), MEXICO SUPER RS 470 (GC 41-392-77)
