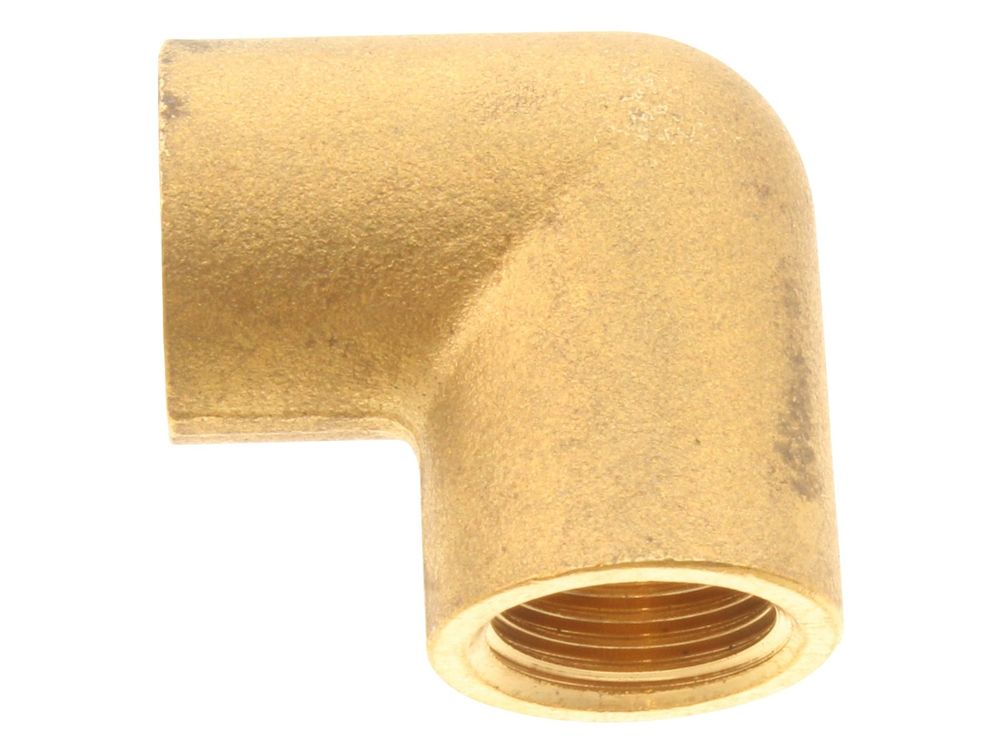

Ideal Elbow Connector 6mm Enots Brass 003798
Ideal 003798 6mm Enots brass elbow connector for Ideal Commercial Concord Super Series 1, 2 and 3 boilers.
At a glance
- Part type: Elbow connector
- Also known as 1170123
£15.20
£12.67 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 003798 is a 6mm Enots-style elbow connector manufactured in brass. It forms part of the pipework and connection assembly on Ideal Commercial boiler plant, turning the run through 90 degrees at the point of connection. It is listed under Ideal Commercial Boiler Spares and is used across the Concord Super Series range.
Signs this part needs replacing
- Weeping or dripping at the elbow joint, with water tracking down the pipework
- Damp staining, crusting or limescale build-up around the compression nut or fitting body
- Green or dark discolouration on the brass, indicating corrosion or long-term seepage
- The joint will not pull up tight, or the pipe sits loose in the fitting after tightening
- Visible cracking, deformation or thread damage on the elbow body
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering, as the same part number can appear across several Concord Super Series variants
- Compare the existing fitting against the 6mm Enots specification and the alternative number 1170123 to be sure of a match
- Check whether the mating olive, seal or washer is serviceable and order a replacement if the existing one is compressed or damaged
- Isolate the appliance, allow it to cool and drain or depressurise the relevant section before removing the old elbow
Mechanical
| Part type | Elbow connector |
|---|---|
| Material | Brass |
Compliance
| Manufacturer part number (MPN) | 003798 |
|---|---|
| Barcode / EAN | 5022140037987 |
| Commodity code | 7412 20 00 00 |
| GPC classification | Connectors - Water, Gas, Central Heating and Air Conduits |
| Alternative numbers | 1170123 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD SUPER SERIES 1 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 1 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 2 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 2 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 3 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 3 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
