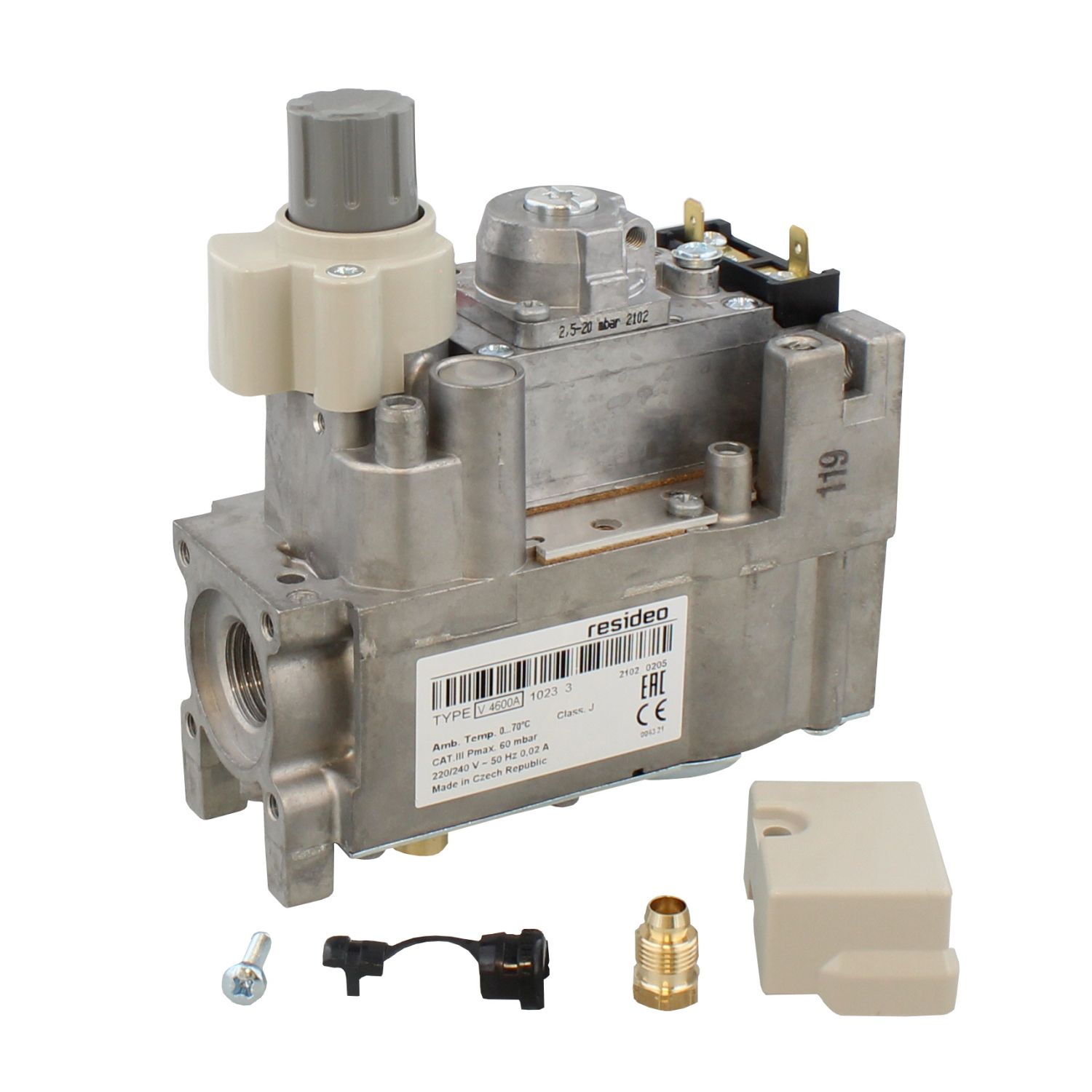

Ideal Gas Valve Compact 12.7mm 003114
Ideal gas valve, part 003114, with a 12.7mm connection and V4600A1023U valve body, fitted across Ideal Concord WCF and other models.
At a glance
- Part type: Gas valve
- Also known as 1170067, TC-N8686
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£297.96
£248.30 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal gas valve is a gas distribution device that controls the supply of gas into the burner or pilot assembly. A signal from the printed circuit board opens the valve when the appliance calls for more gas, allowing flow through to the combustion side. This compact unit carries the valve reference V4600A1023U and a 12.7mm connection, and is supplied as Ideal spare part 003114.
Signs this part needs replacing
- The appliance fails to ignite, with no gas reaching the burner or pilot
- Repeated lockouts on start-up despite a call for heat
- Intermittent ignition that comes and goes between cycles
- The burner lights and then drops out shortly after
- No flame at the pilot assembly on models that use a pilot
Before you order
- Check the GC number and appliance serial plate against the compatibility list before ordering, as this valve covers a large number of Ideal models
- Confirm the valve reference on the existing unit matches V4600A1023U
- Cross-check the alternative and previous part numbers listed below against any documentation you hold
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas Valves |
|---|
Compliance
| Manufacturer part number (MPN) | 003114 |
|---|---|
| GC number | 393-659 |
| Barcode / EAN | 8714724008779 |
| Commodity code | 8481 80 40 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 586121900, 1170067, TC-N8686 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CONCORD WCF 240A | 41-409-67 | 41-409-67 | — | — |
| IDEAL CONCORD WCF 240B | 41-409-75 | 41-409-75 | — | — |
| IDEAL CONCORD WCF 255A | 41-409-69 | 41-409-69 | — | — |
| IDEAL CONCORD WCF 440 | 41-407-50 | 41-407-50 | — | — |
| IDEAL CONCORD WCF 450 | 41-407-51 | 41-407-51 | — | — |
| IDEAL CONCORD WCF 460 | 41-407-52 | 41-407-52 | — | — |
| IDEAL CONCORD WRS 230A | 41-409-63 | 41-409-63 | — | — |
| IDEAL CONCORD WRS 240A | 41-409-68 | 41-409-68 | — | — |
| IDEAL CONCORD WRS 240B | 41-409-76 | 41-409-76 | — | — |
| IDEAL CONCORD WRS 255A | 41-409-70 | 41-409-70 | — | — |
Showing 10 of 129 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — CONCORD WCF 240A (GC 41-409-67), CONCORD WCF 255A (GC 41-409-69)
manualmanualIDEAL appliance manual — CONCORD WCF 440 (GC 41-407-50), CONCORD WCF 450 (GC 41-407-51), CONCORD WCF 460 (GC 41-407-52)
manualmanualIDEAL appliance manual — CONCORD WRS 430 (GC 41-407-36), CONCORD WRS 440 (GC 41-407-37), CONCORD WRS 450 (GC 41-407-38), CONCORD WRS 460 (GC 41-407-39)
manualmanualIDEAL appliance manual — MEXICO 2 BED SLIMLINE CF40 (GC 41-349-37), MEXICO 2 BED SLIMLINE CF50 (GC 41-349-38)
manualmanualIDEAL appliance manual — MEXICO SUPER 2 CF100 (GC 41-415-98), MEXICO SUPER 2 CF125 (GC 41-415-99), MEXICO SUPER 2 CF140 (GC 41-421-51)
manualmanualIDEAL appliance manual — MEXICO SUPER 2 RS100 (GC 41-421-06), MEXICO SUPER 2 RS125 (GC 41-421-07)
manualmanualIDEAL appliance manual — MEXICO SUPER CF100 (GC 41-407-46), MEXICO SUPER CF125 (GC 41-407-48), MEXICO SUPER CF140 (GC 41-421-39), MEXICO SUPER CF40 (GC 41-407-20), MEXICO SUPER CF55 (GC 41-407-22), MEXICO SUPER CF65 (GC 41-407-40), MEXICO SUPER CF75 (GC 41-407-42), MEXICO SUPER CF80 (GC 41-407-44)
manualmanualIDEAL appliance manual — WLX RS30 (GC 41-415-63), WLX RS40 (GC 41-415-64)
manualmanualIDEAL appliance manual — WLX RS50 (GC 41-415-56), WLX RS60 (GC 41-415-57)
manualNo technical questions yet for this part.
