Vaillant Gas Coding Plug 0020242593

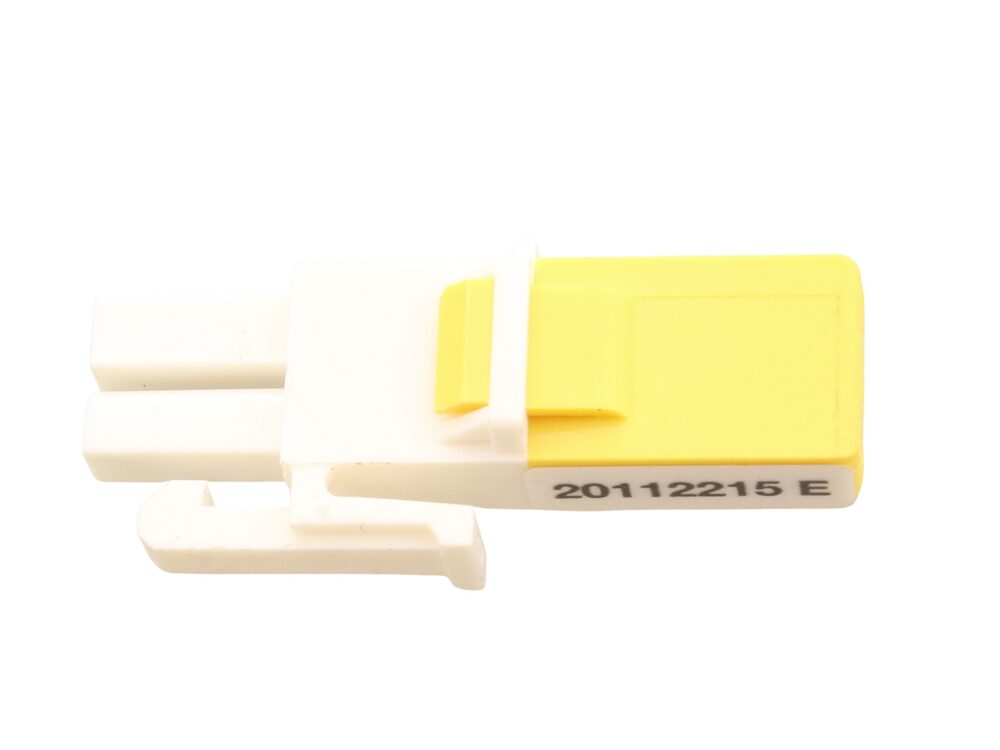

Yellow gas coding plug, part 0020242593, for Vaillant Ecotec Exclusive and Arotherm appliances.
At a glance
- Also known as 1388482
£9.22
£7.68 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 0020242593 is a yellow gas coding plug used across the Ecotec Exclusive and Arotherm appliance families. It sits in the boiler or heat pump control circuit and signals the gas type and appliance configuration to the control board. The colour coding identifies the setting it applies, so the correct plug must be fitted for the appliance and gas supply in use.
Signs this part needs replacing
- The appliance does not recognise the fitted gas type after commissioning or conversion
- Fault codes relating to gas type or configuration appear on the control display
- The existing coding plug is missing, loose in its socket, or has damaged pins
- The plug has been swapped or removed during service and the correct coding is no longer fitted
- Intermittent ignition or modulation faults traced to an incorrect coding setting
Before you order
- Confirm the appliance model and GC number against the fit list above
- Check the colour coding of the plug currently fitted, as the coding must match the appliance and gas type
- Inspect the plug socket on the control board for damage before fitting a replacement
- Refer to the manufacturer's instructions for the correct coding plug for the installation
Compliance
| Alternative numbers | 1388482 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VU 256/5-7 | 41-694-02 | 41-694-02 | — | — |
| VAILLANT VUW 356/5-7 | 47-044-66 | 47-044-66 | — | — |
| VAILLANT VUW 436/5-7 | 47-044-67 | 47-044-67 | — | — |
| VAILLANT aroTHERM 5/5 VWL 55/5 AS 230V S2 (2019-2022) | — | — | — | |
| VAILLANT aroTHERM 5/5 VWL 55/5 AS 230V S2 R1 (2019-2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 55/6 A 230V S2 (2020-2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 55/6 A 230V S2 R1 (2022) | — | — | — | |
| VAILLANT aroTHERM PLUS /6 VWL 55/6 A 230V S2 R2 (2023) | — | — | — | |
| VAILLANT ecoTEC EXCLUSIVE 627 VU 256/5-7 (2016) | 41-694-02 | 41-694-02 | — | — |
| VAILLANT ecoTEC EXCLUSIVE 835 VUW 356/5-7 (2016) | 47-044-66 | 47-044-66 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VAILLANT appliance manual — VU 256/5-7 (GC 41-694-02), ecoTEC EXCLUSIVE 627 VU 256/5-7 (2016) (GC 41-694-02)
manualmanualVAILLANT appliance manual — VUW 356/5-7 (GC 47-044-66), VUW 436/5-7 (GC 47-044-67), ecoTEC EXCLUSIVE 835 VUW 356/5-7 (2016) (GC 47-044-66), ecoTEC EXCLUSIVE 843 VUW 436/5-7 (2016) (GC 47-044-67)
manualmanualVAILLANT appliance manual — aroTHERM 5/5 VWL 55/5 AS 230V S2 (2019-2022), aroTHERM 5/5 VWL 55/5 AS 230V S2 R1 (2019-2022)
manualNo technical questions yet for this part.
