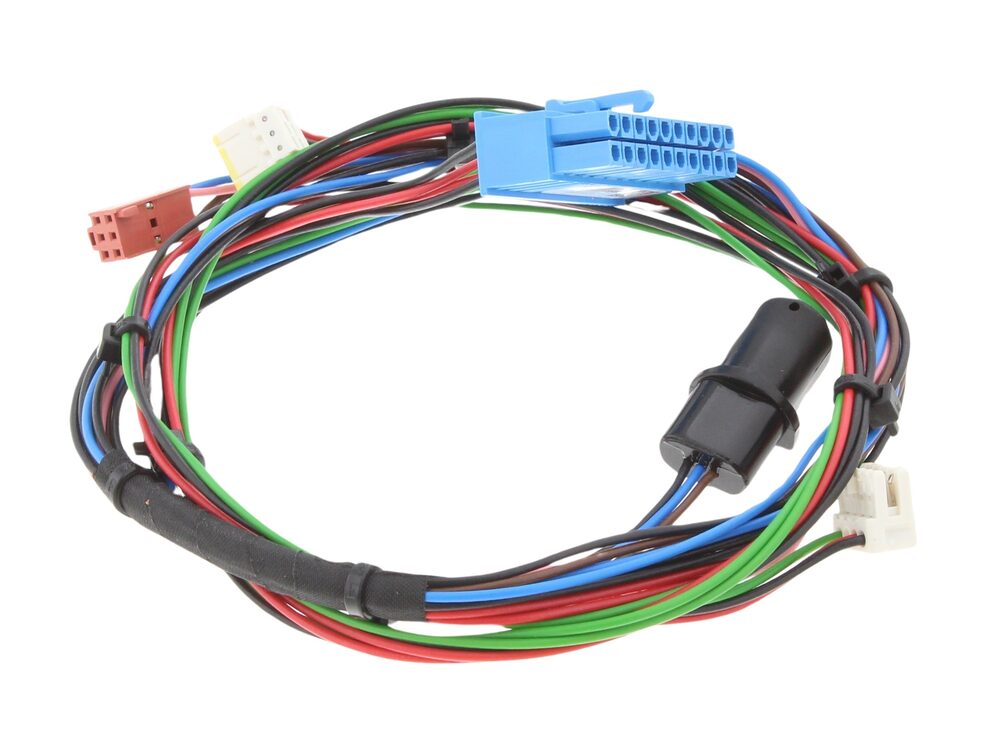

Vaillant Wiring Harness 0020211941
Vaillant combi wiring harness, part number 0020211941, for Ecotec, Ecofit and Home combi appliances.
At a glance
- Also known as 1388054
£21.52
£17.93 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 0020211941 is a wiring harness supplied for Vaillant combi boilers across the Ecotec, Ecofit and Home ranges. It carries the low-voltage control and sensor wiring between the boiler's electrical components and the main PCB. The harness is a plug-in assembly, so it is replaced as a complete unit rather than repaired in situ.
Signs this part needs replacing
- Cracked, chafed or heat-damaged insulation on one or more conductors
- Burn marks, discolouration or corrosion at the plug terminals
- Intermittent faults or error codes that clear when the harness is moved
- Loose or poorly seated connectors that will not latch securely
- Continuity faults traced to a broken conductor within the harness
Before you order
- Confirm your appliance model against the fit list above before ordering
- Check the part number printed on the existing harness matches 0020211941
- Inspect the connector count and layout on the old harness against the replacement
- Isolate the electrical supply to the boiler before removing or fitting the harness
Compliance
| Alternative numbers | 1388054 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT HOME COMBI 25 -A | 47-044-62 | 47-044-62 | — | — |
| VAILLANT HOME COMBI 30 -A | 47-044-63 | 47-044-63 | — | — |
| VAILLANT HOME COMBI 35 -A | 47-044-64 | 47-044-64 | — | — |
| VAILLANT VUW 246/7-2 | 47-044-79 | 47-044-79 | — | — |
| VAILLANT VUW 286/7-2 | 47-044-80 | 47-044-80 | — | — |
| VAILLANT VUW 346/7-2 | 47-044-81 | 47-044-81 | — | — |
| VAILLANT ecoFIT PURE 612 - VU 126/6-3 (2016) | 41-694-03 | 41-694-03 | — | — |
| VAILLANT ecoFIT PURE 615 - VU 156/6-3 (2016) | 41-694-04 | 41-694-04 | — | — |
| VAILLANT ecoFIT PURE 618 - VU 186/6-3 (2016) | 41-694-05 | 41-694-05 | — | — |
| VAILLANT ecoFIT PURE 625 - VU 256/6-3 (2016) | 41-694-06 | 41-694-06 | — | — |
Showing 10 of 26 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VAILLANT appliance manual — HOME COMBI 25 -A (GC 47-044-62), HOME COMBI 30 -A (GC 47-044-63), HOME COMBI 35 -A (GC 47-044-64)
manualmanualVAILLANT appliance manual — VUW 246/7-2 (GC 47-044-79), VUW 286/7-2 (GC 47-044-80), VUW 346/7-2 (GC 47-044-81), ecoTEC SUSTAIN 24 VUW 246/7-2 (2017) (GC 47-044-79), ecoTEC SUSTAIN 28 VUW 286/7-2 (2017) (GC 47-044-80), ecoTEC SUSTAIN 34 VUW 346/7-2 (2017) (GC 47-044-81)
manualmanualVAILLANT appliance manual — ecoFIT PURE 612 - VU 126/6-3 (2016) (GC 41-694-03), ecoFIT PURE 615 - VU 156/6-3 (2016) (GC 41-694-04), ecoFIT PURE 618 - VU 186/6-3 (2016) (GC 41-694-05), ecoFIT PURE 625 - VU 256/6-3 (2016) (GC 41-694-06), ecoFIT PURE 630 - VU 306/6-3 (2016) (GC 41-694-07)
manualmanualVAILLANT appliance manual — ecoFIT PURE 825 - VUW 256/6-3 (2016) (GC 47-044-68), ecoFIT PURE 830 - VUW 306/6-3 (2016) (GC 47-044-74), ecoFIT PURE 835 - VUW 356/6-3 (2016) (GC 47-044-70)
manualmanualVAILLANT appliance manual — ecoFIT SUSTAIN 615 - VU 156/6-3 (2018) (GC 41-694-30), ecoFIT SUSTAIN 618 - VU 186/6-3 (2018) (GC 41-694-31), ecoFIT SUSTAIN 630 - VU 306/6-3 (2018) (GC 41-694-32)
manualmanualVAILLANT appliance manual — ecoFIT SUSTAIN 825 - VUW 256/6-3 (2016) (GC 47-044-71), ecoFIT SUSTAIN 830 - VUW 306/6-3 (2016) (GC 47-044-72), ecoFIT SUSTAIN 835 - VUW 356/6-3 (2016) (GC 47-044-73)
manualNo technical questions yet for this part.
