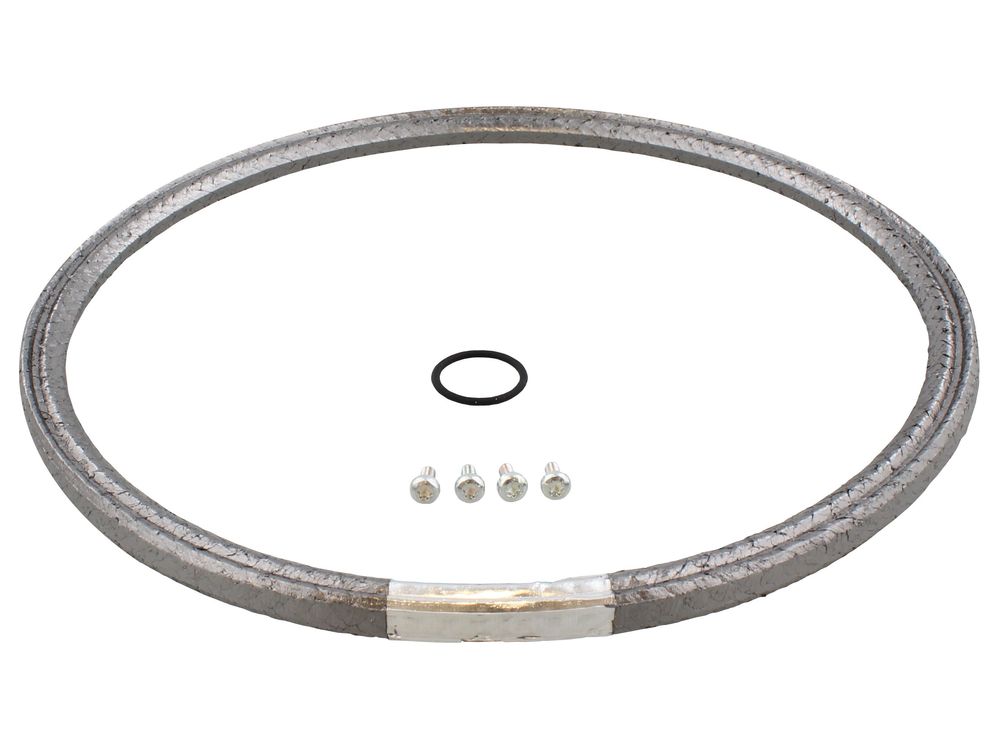

Vaillant Combustion Chamber Cover Gasket 0020188930
Combustion chamber cover gasket for Vaillant ecoTEC VU 806/5-5 R2, R3 and R4 boilers, part number 0020188930.
At a glance
- Part type: gasket, combustion chamber cover
- Appliance family: ecoTEC VU 806/5-5
- Also known as 1386468
£64.46
£53.72 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 0020188930 is a combustion chamber cover gasket for the ecoTEC VU 806/5-5 range of gas boilers. It seals the joint between the combustion chamber cover and the chamber body, maintaining a gas-tight closure at that face. The gasket is a service item and is replaced whenever the cover is removed or the seal is disturbed.
Signs this part needs replacing
- Visible splitting, flattening or compression set on the gasket face
- The gasket has hardened or become brittle with heat cycling
- Soot staining or dark tracking around the combustion chamber cover joint
- The cover has been removed for inspection or repair and the seal cannot be reused
- Flue gas readings or combustion analysis that suggest leakage at the chamber cover
Before you order
- Confirm the model and GC number on the appliance data plate match the fitment list above
- Check the existing gasket against the part number 0020188930 before ordering
- Inspect the combustion chamber cover face for distortion or damage that would prevent a clean seal
- Follow the manufacturer's instructions for cover removal, gasket fitting and any required checks after reassembly
Compliance
| Alternative numbers | 1386468 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VU 806/5-5 R4 | 41-044-68 | 41-044-68 | — | — |
| VAILLANT VU GB 806/5-5 R2 | 41-044-68 | 41-044-68 | — | — |
| VAILLANT VU GB 806/5-5 R3 | 41-044-68 | 41-044-68 | — | — |
| VAILLANT ecoTEC VU 806/5-5 R4 (2017) | 41-044-68 | 41-044-68 | — | — |
| VAILLANT ecoTEC VU GB 806/5-5 R2 (2013-2014) | 41-044-68 | 41-044-68 | — | — |
| VAILLANT ecoTEC VU GB 806/5-5 R2 (41-044-68) | — | — | — | |
| VAILLANT ecoTEC VU GB 806/5-5 R3 (2014) | 41-044-68 | 41-044-68 | — | — |
| VAILLANT ecoTEC VU GB 806/5-5 R3 (41-044-68) | — | — | — |
