Glow-worm

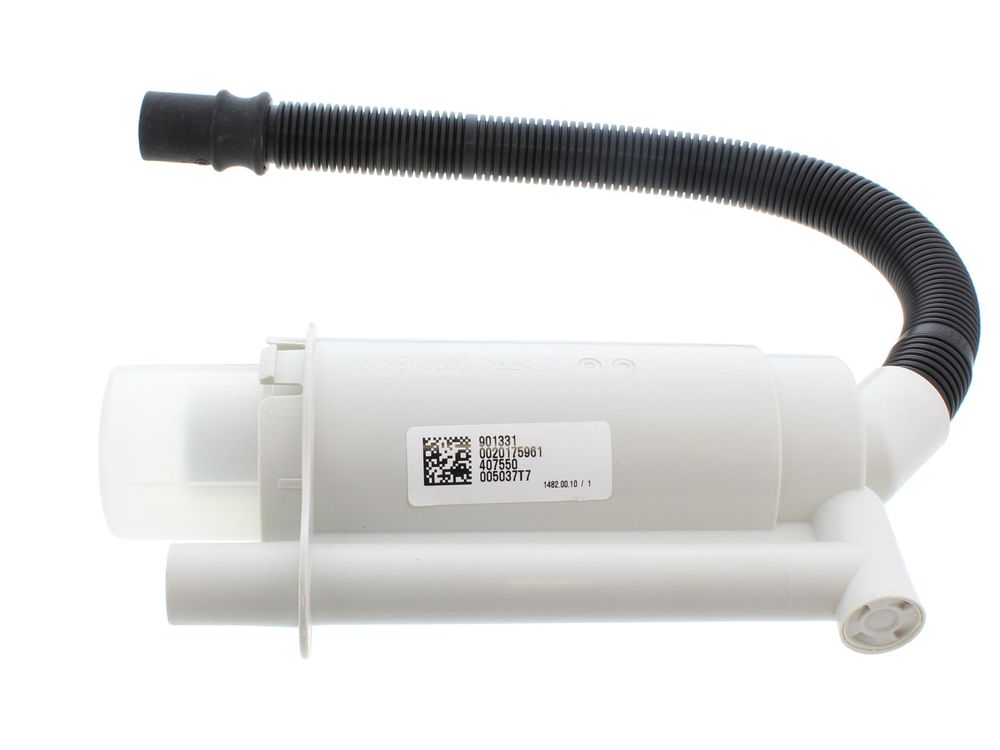

Glow-worm Siphon 0020182226
Condensate siphon for Glow-worm Betacom 2 and Ultimate boilers, fitted after serial number 2113200010014071300009037N2.
At a glance
- Also known as 1340674
£49.39
£41.16 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Glow-worm siphon (part number 0020182226) is a condensate trap component used in Glow-worm Betacom 2 and Ultimate boilers. It collects condensate produced during combustion and discharges it to the drainage system. This version is fitted to appliances after serial number 2113200010014071300009037N2.
Signs this part needs replacing
- Water leaking from the siphon or surrounding pipework
- Boiler locking out or showing a condensate-related fault code
- Gurgling or bubbling noises from the condensate trap
- Visible cracks, scale build-up, or blockages in the siphon
- Condensate not draining away, causing water to back up in the boiler
Before you order
- Check the boiler's serial number is after 2113200010014071300009037N2
- Confirm your appliance model and GC number against the list above
- Inspect the existing siphon for damage or blockage before replacing
- Isolate the boiler and allow it to cool before starting work
Compliance
| Alternative numbers | 1340674 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM BETACOM 2 24 | 47-019-16 | 47-019-16 | — | — |
| GLOWWORM BETACOM 2 28 | 47-019-17 | 47-019-17 | — | — |
| GLOWWORM GLOWWORM BETACOM 2 24 | — | — | — | |
| GLOWWORM GLOWWORM BETACOM 2 28 | — | — | — | |
| GLOWWORM ULTIMATE 30C | 47-044-48 | 47-044-48 | — | — |
| GLOWWORM ULTIMATE 35C | 47-044-49 | 47-044-49 | — | — |
