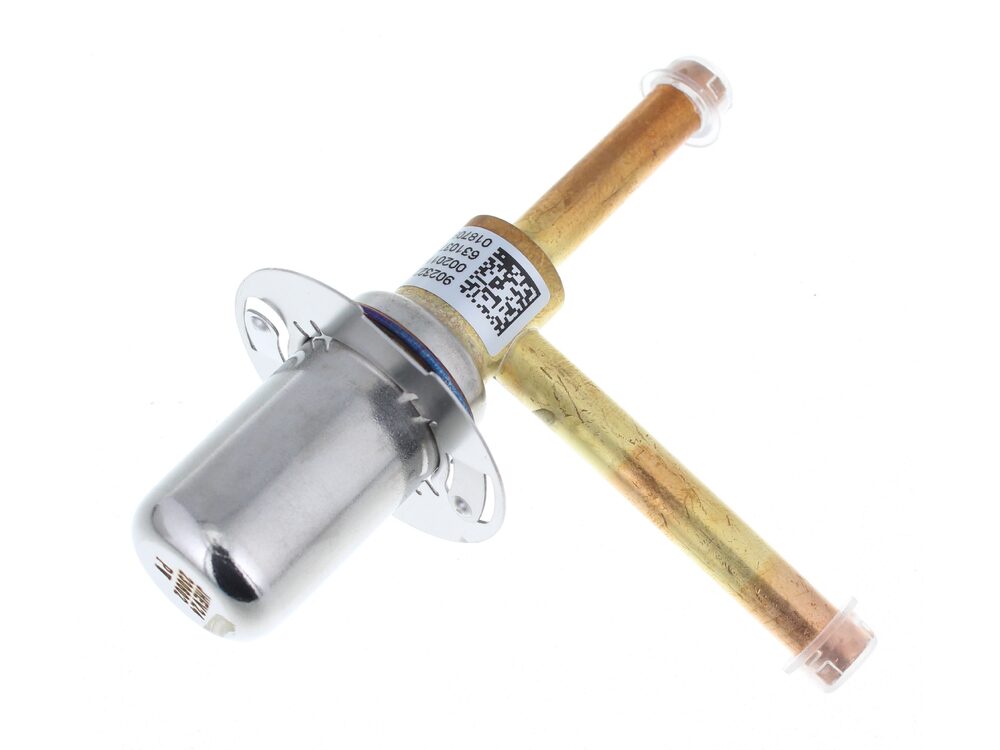

Vaillant Thermostatic Expansion Valve 0020175865
Thermostatic expansion valve rated 11-15kW for Vaillant Arotherm and VWL heat pump units.
At a glance
- Also known as 1386368
£87.95
£73.29 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The thermostatic expansion valve (11-15kW) is a Vaillant control component fitted to Arotherm and VWL air-to-water heat pump units. It regulates refrigerant flow into the evaporator by maintaining a controlled superheat at the evaporator outlet. The valve meters the liquid refrigerant feed in response to the temperature and pressure at the evaporator, keeping the circuit operating within its designed range.
Signs this part needs replacing
- Reduced heating or hot water output from the heat pump despite the compressor running
- Frost or excessive ice forming at the evaporator, indicating poor refrigerant metering
- Erratic or unstable superheat readings at the evaporator outlet
- Refrigerant noise, hunting or surge through the circuit during operation
- Repeated high-pressure or low-pressure faults logged by the appliance
Before you order
- Confirm the appliance model and serial details against the fit list above before ordering
- Check the rating band on the existing valve matches the 11-15kW band of this part
- Verify the fault diagnosis points to the expansion valve rather than a charge, sensor or compressor issue
- Confirm refrigerant handling will be carried out by a competent engineer with the correct equipment
Compliance
| Alternative numbers | 1386368 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VWL 115/2 A 230V | — | — | — | |
| VAILLANT VWL 155/2 A 230V | — | — | — | |
| VAILLANT aroTHERM 5/5 VWL 105/5 AS 230V S2 (2019) | — | — | — | |
| VAILLANT aroTHERM 5/5 VWL 125/5 AS 230V S2 (2019) | — | — | — | |
| VAILLANT aroTHERM VWL 115/2 A 230V (2013) | — | — | — | |
| VAILLANT aroTHERM VWL 155/2 A 230V (2014) | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
