Vaillant Display Panel Plus VAILLANT0020136628

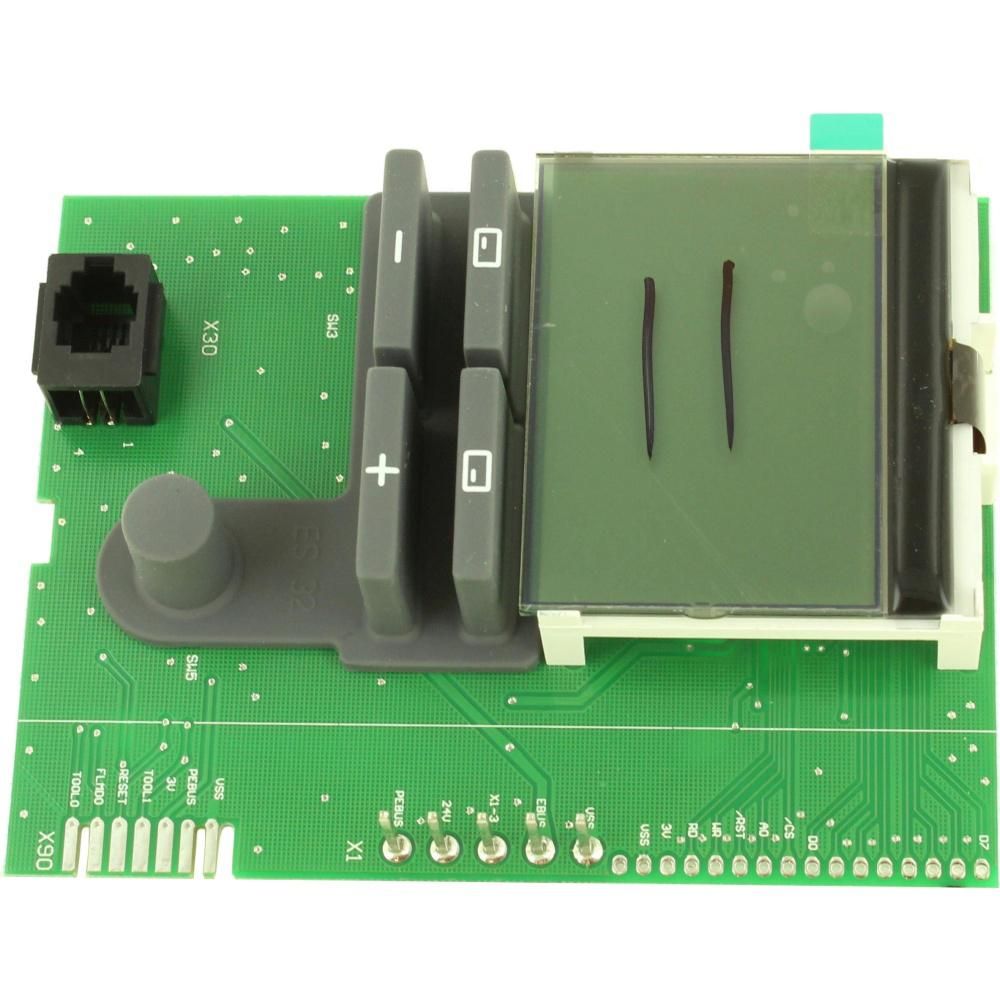

Vaillant Display Plus panel, part 0020136628, a printed circuit board display assembly for Vaillant water heaters.
At a glance
- Part type: Printed Circuit Boards (PCB)
- Also known as 1383503, N5518, VAILLANT0020136628
Showing prices
£88.66
£73.88 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant Display Plus is a printed circuit board display assembly manufactured by Vaillant for use in its water heating appliances. It carries the control interface that shows operating status and settings to the user, and it communicates with the main control board inside the unit. As a PCB-based component, it forms part of the appliance's electronic control system rather than a mechanical or hydraulic part.
Signs this part needs replacing
- The display is blank or unlit while the appliance still runs
- Segments, digits or icons are missing, faded or permanently lit
- The screen flickers, dims intermittently or shows scrambled characters
- Buttons or touch areas on the panel stop responding to input
- Fault codes appear on the display that do not clear after a reset
Before you order
- Match the part number 0020136628 against the number printed on the existing display board
- Confirm the appliance model and serial number so the correct variant is supplied
- Isolate the electrical supply to the appliance before removing or fitting the panel
- Check whether any ribbon cable, seal or mounting clip is disturbed during removal and needs replacing at the same time
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|
Compliance
| Manufacturer part number (MPN) | 0020136628 |
|---|---|
| Barcode / EAN | 0020136628 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 4024074618882, VAILLANT0020136628, VAILLANT0020136628, VAILLANT0020136628, 254811513793, 1383503, N5518 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-5-5 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-5-5 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-5-5 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 624 VU 246-5-5 | — | — | — |
Showing 10 of 202 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
