Vaillant Wiring Harness 0020135162

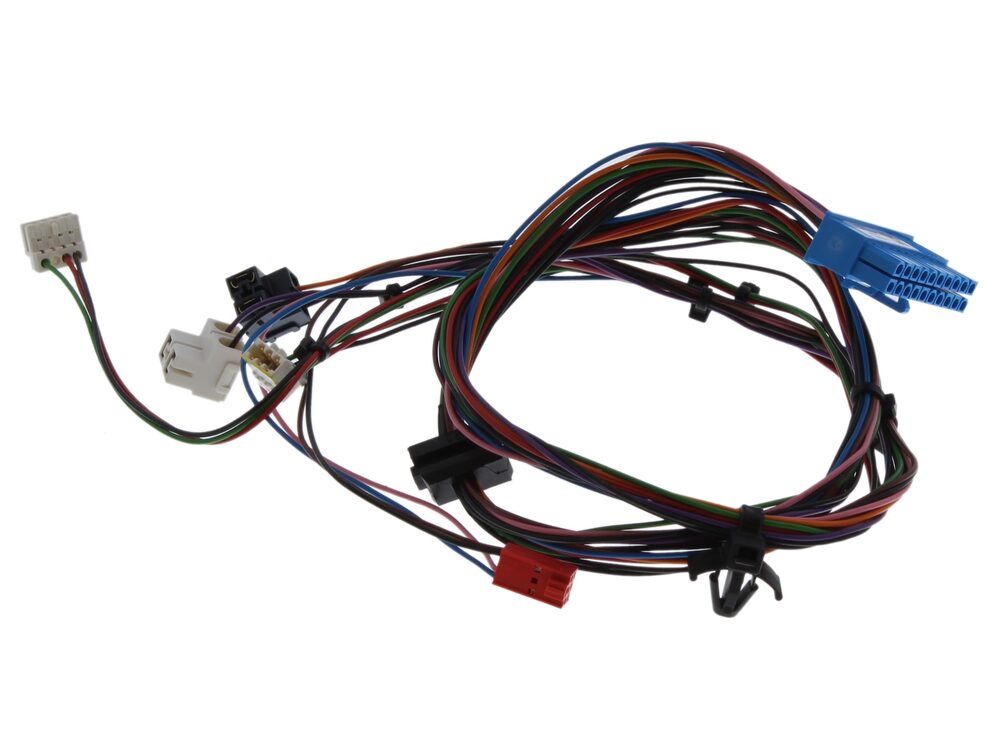

Wiring harness, part 0020135162, for Vaillant ecoTEC PLUS and VUW series gas boilers.
At a glance
- Part type: wiring harness
- Appliance family: ecoTEC PLUS / VUW
- Also known as 1383585
£39.42
£32.85 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 0020135162 wiring harness is a multi-core electrical loom used on ecoTEC PLUS and VUW series gas boilers. It carries low-voltage control and sensor signals between the boiler's main components, including the printed circuit board and the associated plugs and connectors. It is supplied as a wiring spare for the ecoTEC PLUS range.
Signs this part needs replacing
- Intermittent faults, lockouts or error codes that clear and return without a consistent cause
- Boiler failing to fire, or cutting out shortly after ignition, where the board and sensors test correctly
- Visible damage to the loom: chafed, cracked, heat-frayed or brittle insulation on the conductors
- Loose, corroded or discoloured terminals in the harness plugs, or a plug that will not latch securely
- Localised burning, scorching or a smell of hot plastic around the harness or its connectors
Before you order
- Confirm your boiler's exact model and variant (R1, R2, R4 or R6) against the fitment list above
- Check the GC number on the appliance data badge against the model you are ordering for
- Compare the connector count, plug types and routing of the existing harness with the part before fitting
- Establish that the fault lies in the harness rather than the PCB, sensor or connector it plugs into
Compliance
| Barcode / EAN | 4024074617700 |
|---|---|
| Alternative numbers | 1383585 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VAILLANT ECOTEC PLUS 824 - VUW 246/5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 824 - VUW 246/5-5 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 831 - VUW 316/5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 831 - VUW 316/5-5 R2 | — | — | — | |
| VAILLANT VUW 196/5-5 R6 | 47-044-83 | 47-044-83 | — | — |
| VAILLANT VUW 246/5-5 | 47-044-40 | 47-044-40 | — | — |
| VAILLANT VUW 246/5-5 R1 | 47-044-40 | 47-044-40 | — | — |
| VAILLANT VUW 246/5-5 R4 | 47-044-40 | 47-044-40 | — | — |
| VAILLANT VUW 246/5-5 R6 | 47-044-84 | 47-044-84 | — | — |
| VAILLANT VUW 246/5-5 R6 LPG | 47-044-85 | 47-044-85 | — | — |
Showing 10 of 37 compatible appliances.
