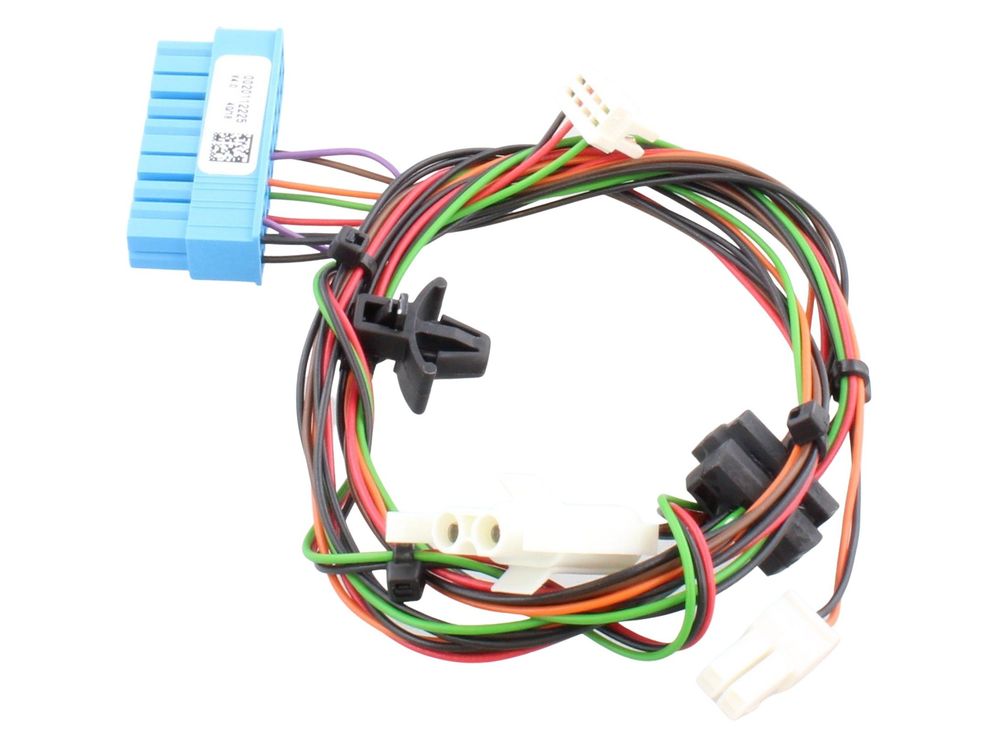

Vaillant Wiring Harness 0020135159
Vaillant wiring harness 0020135159 for ecoTEC PLUS and VU series gas boilers.
At a glance
- Part type: wiring harness
- Appliance family: ecoTEC PLUS / VU
- Also known as 1383491
Showing prices
£28.10
£23.42 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 0020135159 wiring harness is a manufacturer-supplied electrical loom for Vaillant gas boilers in the ecoTEC PLUS and VU ranges. It carries control and ignition circuit connections between the boiler's electrical components. It is listed under the wiring category of Vaillant gas boiler spares.
Signs this part needs replacing
- Boiler fails to ignite or locks out intermittently with no other obvious cause
- Fault codes relating to the ignition or control circuit recur after resetting
- Visible damage to the loom, such as cracked insulation, chafed or exposed conductors
- Overheating, discolouration or corrosion at the harness connectors
- Intermittent operation that changes when the loom or its plugs are moved
Before you order
- Confirm your boiler model and variant, including the R designation, against the fit list
- Check the GC number on the appliance data badge where one is quoted
- Inspect the existing harness and connectors to confirm the fault lies with the loom
- Verify the part number 0020135159 matches the number on the component being replaced
Compliance
| Barcode / EAN | 4024074617670 |
|---|---|
| Alternative numbers | 1383491 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-5-5 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-5-5 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-5-5 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 624 VU 246-5-5 | — | — | — |
Showing 10 of 112 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
VAILLANT appliance manual — VU 126/5-5 (GC 41-044-60), VU 126/5-5 R1 (GC 41-044-60), VU 126/5-5 R2 (GC 41-044-60), VU 126/5-5 R4 (GC 41-044-60), VU 156/5-5 (GC 41-044-61), VU 156/5-5 R1 (GC 41-044-61), VU 156/5-5 R2 (GC 41-044-61), VU 156/5-5 R4 (GC 41-044-61), VU 186/5-5 (GC 41-044-62), VU 186/5-5 R1 (GC 41-044-62), VU 186/5-5 R2 (GC 41-044-62), VU 186/5-5 R4 (GC 41-044-62), VU 246/5-5 (GC 41-044-63), VU 246/5-5 R1 (GC 41-044-63), VU 246/5-5 R2 (GC 41-044-63), VU 246/5-5 R4 (GC 41-044-63), VU 306/5-5 (GC 41-044-63), VU 306/5-5 R1 (GC 41-044-64), VU 306/5-5 R2 (GC 41-044-64), VU 306/5-5 R4 (GC 41-044-64), VUW 246/5-5 R2 (GC 41-044-63), ecoTEC PLUS 612 VU 126/5-5 (2012-2012) (GC 41-044-60), ecoTEC PLUS 612 VU 126/5-5 R1 (2012-2013) (GC 41-044-60), ecoTEC PLUS 612 VU 126/5-5 R2 (2013-2015) (GC 41-044-60), ecoTEC PLUS 612 VU 126/5-5 R4 (2015-2015) (GC 41-044-60), ecoTEC PLUS 615 VU 156/5-5 (2012-2012) (GC 41-044-61), ecoTEC PLUS 615 VU 156/5-5 R1 (2012-2013) (GC 41-044-61), ecoTEC PLUS 615 VU 156/5-5 R2 (2013-2015) (GC 41-044-61), ecoTEC PLUS 615 VU 156/5-5 R4 (2015-2015) (GC 41-044-61), ecoTEC PLUS 618 VU 186/5-5 (2012-2012) (GC 41-044-62), ecoTEC PLUS 618 VU 186/5-5 R1 (2012-2013) (GC 41-044-62), ecoTEC PLUS 618 VU 186/5-5 R2 (2013-2015) (GC 41-044-62), ecoTEC PLUS 618 VU 186/5-5 R4 (2015-2015) (GC 41-044-62), ecoTEC PLUS 624 VU 246/5-5 (2012-2012) (GC 41-044-63), ecoTEC PLUS 624 VU 246/5-5 R1 (2012-2013) (GC 41-044-63), ecoTEC PLUS 624 VU 246/5-5 R2 (2013-2015) (GC 41-044-63), ecoTEC PLUS 624 VU 246/5-5 R4 (2015-2015) (GC 41-044-63), ecoTEC PLUS 630 VU 306/5-5 (2012-2012) (GC 41-044-63), ecoTEC PLUS 630 VU 306/5-5 R1 (2012-2013) (GC 41-044-64), ecoTEC PLUS 630 VU 306/5-5 R2 (2013-2014) (GC 41-044-64), ecoTEC PLUS 630 VU 306/5-5 R4 (2015-2015) (GC 41-044-64), ecoTEC PLUS 824 VUW 246/5-5 R2 (2013-2015) (GC 41-044-63)
manualmanualVAILLANT appliance manual — VU 126/5-5 A R4 (GC 41-044-78), VU 156/5-5 A R4 (GC 41-044-79), VU 186/5-5 A R4 (GC 41-044-80), VU 246/5-5 A R4 (GC 41-044-82), VU 306/5-5 A R4 (GC 41-044-83), ecoTEC PLUS 612 VU 126/5-5 A R4 (2015) (GC 41-044-78), ecoTEC PLUS 615 VU 156/5-5 A R4 (2015) (GC 41-044-79), ecoTEC PLUS 618 VU 186/5-5 A R4 (2015) (GC 41-044-80), ecoTEC PLUS 624 VU 246/5-5 A R4 (2015) (GC 41-044-82), ecoTEC PLUS 630 VU 306/5-5 A R4 (2015) (GC 41-044-83)
manualmanualVAILLANT appliance manual — VU 126/5-5 R6 (GC 41-694-20), VU 156/5-5 R6 (GC 41-694-21), VU 186/5-5 R6 (GC 41-694-22), VU 186/5-5 R6 LPG (GC 41-694-23), VU 246/5-5 R6 (GC 41-694-24), VU 306/5-5 R6 (GC 41-694-25), VU 306/5-5 R6 LPG (GC 41-694-26), ecoTEC PLUS 612 VU 126/5-5 R6 (2017) (GC 41-694-20), ecoTEC PLUS 615 VU 156/5-5 R6 (2017) (GC 41-694-21), ecoTEC PLUS 618 VU 186/5-5 R6 (2017) (GC 41-694-22), ecoTEC PLUS 618 VU 186/5-5 R6 LPG (2017) (GC 41-694-23), ecoTEC PLUS 624 VU 246/5-5 R6 (2017) (GC 41-694-24), ecoTEC PLUS 630 VU 306/5-5 R6 (2017) (GC 41-694-25), ecoTEC PLUS 630 VU 306/5-5 R6 LPG (2017) (GC 41-694-26)
manualNo technical questions yet for this part.
