Vaillant Wiring Harness 0020135153

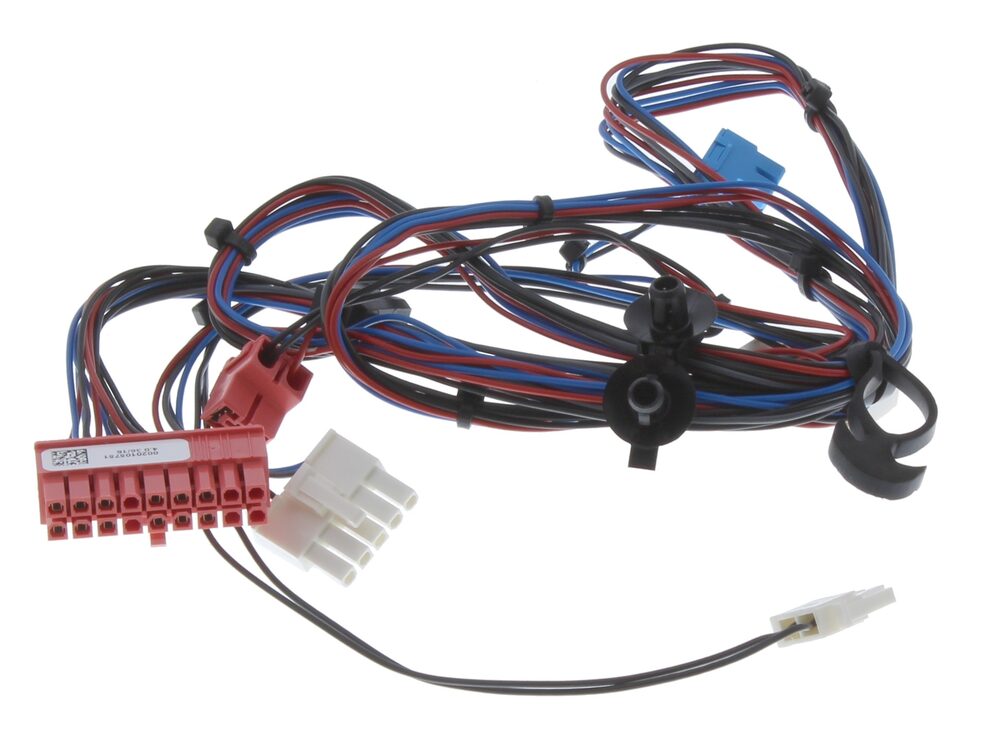

Vaillant wiring harness, part 0020135153, for ecoTEC PRO 24 and 28 VUW 246/5-3 and 286/5-3 boilers.
At a glance
- Part type: wiring harness
- Also known as 1383567
£43.55
£36.29 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 0020135153 is a wiring harness used in ecoTEC PRO 24 and ecoTEC PRO 28 gas boilers. It carries low-voltage control and sensor connections between the boiler's electrical components, forming part of the appliance's internal wiring loom. It is a manufacturer-supplied electrical spare for the VUW 246/5-3 and VUW 286/5-3 ranges.
Signs this part needs replacing
- Boiler fails to fire or locks out with no obvious fault at the gas or water side
- Intermittent faults, random shutdowns or error codes that clear and return
- Visible damage to the harness: chafed, cracked or heat-affected insulation
- Corrosion, arcing marks or discolouration at the plug or terminal ends
- Loose or poor-fitting connectors that will not seat securely on their mating terminals
Before you order
- Confirm your boiler model and variant (VUW 246/5-3 or VUW 286/5-3, including R1/R2) against the data badge
- Compare the connector count, plug types and routing of the existing harness with the part before fitting
- Check the fault is actually in the harness and not at the board, sensor or connector it plugs into
- Isolate the electrical supply and follow the manufacturer's wiring diagram when replacing
Mechanical
| Part type | WIRING |
|---|
Compliance
| Manufacturer part number (MPN) | 0020135153 |
|---|---|
| Barcode / EAN | 4024074617618 |
| Alternative numbers | 1383567 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VAILLANT ECOTEC PRO 24 - VUW 246/5-3 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PRO 24 - VUW 246/5-3 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PRO 24 - VUW 246/5-3 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PRO 28 - VUW 286/5-3 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PRO 28 - VUW 286/5-3 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PRO 28 - VUW 286/5-3 R2 | — | — | — | |
| VAILLANT VUW 246/5-3 | 47-044-44 | 47-044-44 | — | — |
| VAILLANT VUW 246/5-3 R1 | 47-044-44 | 47-044-44 | — | — |
| VAILLANT VUW 246/5-3 R2 | 47-044-44 | 47-044-44 | — | — |
| VAILLANT VUW 286/5-3 | 47-044-45 | 47-044-45 | — | — |
Showing 10 of 21 compatible appliances.
