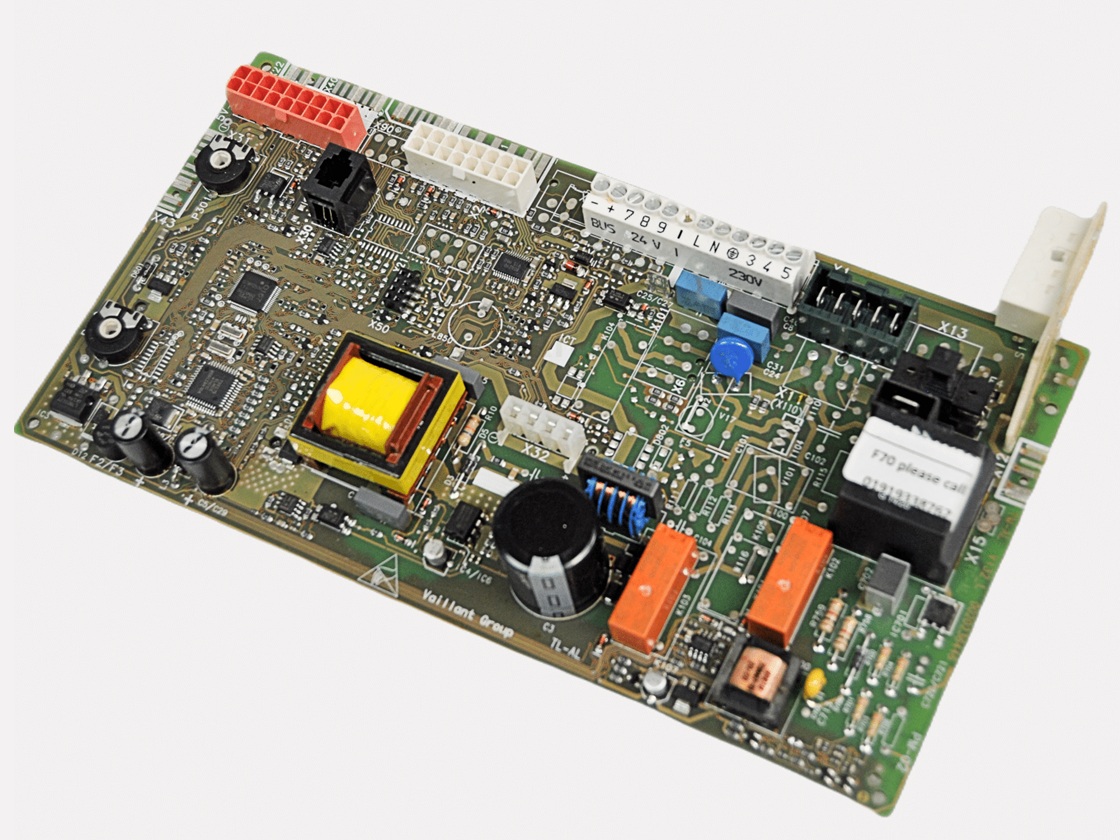

Vaillant 0020132764 Printed circuit board
Vaillant 0020132764 printed circuit board PCB, the control board used in Vaillant heating appliances for ignition, modulation and safety sequencing.
At a glance
- Part type: Printed circuit board (PCB) / boiler control board
- Appliance family: Vaillant heating appliances
- Also known as 1383245, VAILLANT0020132764
Showing prices
£301.30
£251.08 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 0020132764 is a printed circuit board (PCB) supplied as the control board for Vaillant heating appliances. It carries the control electronics that sequence ignition, regulate burner modulation and manage pump, fan and safety interlock operation. The board is a service component intended for repair and maintenance work on the appliance it was designed for.
Signs this part needs replacing
- The appliance fails to fire, or locks out repeatedly with no other fault identified.
- A blank, dim or scrambled display on the control panel.
- Erratic running — pump, fan or burner cycling without a call for heat.
- Fault codes that clear on reset and then return shortly afterwards.
- Visible board damage: scorch marks, cracked tracks, bulging capacitors or water staining across the PCB.
Before you order
- Read the part number from the board being removed and compare it with 0020132764 before ordering.
- Check the appliance data badge and note the model and any GC number, so the board can be matched to the correct variant.
- If the board has failed after water ingress, inspect the surrounding seals and gaskets at the same time.
Mechanical
| Part type | Printed Circuit Board (PCB) |
|---|---|
| Appliance family | Vaillant heating appliances |
Compliance
| Manufacturer part number (MPN) | 0020132764 |
|---|---|
| Barcode / EAN | 4024074614280 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Circuit Assemblies/Integrated Circuits |
| Alternative numbers | VAILLANT0020132764, 0020028060, 0020052093, 0020107811, 11-7322, 1383245 |
| Previous numbers | 0020028060, 0020052093, 0020107811, 11-7322, 117322 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 624 VU 246-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 624 VU 246-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 630 VU 306-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 630 VU 306-3-5 R1 | — | — | — |
Showing 10 of 84 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
VAILLANT appliance manual — VU 126/3-5 (GC 41-044-44), VU 126/3-5 R1 (GC 41-044-44), VU 156/3-5 (GC 41-044-45), VU 156/3-5 R1 (GC 41-044-45), VU 186/3-5 (GC 41-044-46), VU 186/3-5 R1 (GC 41-044-46), VU 246/3-5 (GC 41-044-47), VU 246/3-5 R1 (GC 41-044-47), VU 306/3-5 (GC 41-044-48), VU 306/3-5 R1 (GC 41-044-48), VU 376/3-5 R1 (GC 41-044-49), VUW 246/3-3 R1 (GC 47-044-36), VUW 246/3-3 R2 (GC 47-044-36), VUW 246/3-5 (GC 47-044-31), VUW 246/3-5 R1 (GC 47-044-31), VUW 246/3-5 R3 (GC 47-044-31), VUW 286/3-3 (GC 47-044-30), VUW 286/3-3 R1 (GC 47-044-30), VUW 286/3-3 R2 (GC 47-044-30), VUW 316/3-5 (GC 47-044-32), VUW 316/3-5 R1 (GC 47-044-32), VUW 316/3-5 R3 (GC 47-044-32), VUW 316/3-5 R5 (GC 47-044-32), VUW 376/3-5 (GC 47-044-33), VUW 376/3-5 R1 (GC 47-044-33), ecoTEC PLUS 612 VU 126/3-5 (2005-2005) (GC 41-044-44), ecoTEC PLUS 612 VU 126/3-5 R1 (2005-2006) (GC 41-044-44), ecoTEC PLUS 615 VU 156/3-5 (2005-2005) (GC 41-044-45), ecoTEC PLUS 615 VU 156/3-5 R1 (2005-2006) (GC 41-044-45), ecoTEC PLUS 618 VU 186/3-5 (2005-2005) (GC 41-044-46), ecoTEC PLUS 618 VU 186/3-5 R1 (2005-2006) (GC 41-044-46), ecoTEC PLUS 624 VU 246/3-5 (2005-2006) (GC 41-044-47), ecoTEC PLUS 624 VU 246/3-5 R1 (2005-2006) (GC 41-044-47), ecoTEC PLUS 630 VU 306/3-5 (2005-2005) (GC 41-044-48), ecoTEC PLUS 630 VU 306/3-5 R1 (2005-2006) (GC 41-044-48), ecoTEC PLUS 637 VU 376/3-5 R1 - 2006-2006 (GC 41-044-49), ecoTEC PLUS 824 VUW 246/3-5 (2005-2005) (GC 47-044-31), ecoTEC PLUS 824 VUW 246/3-5 R1 (2005-2006) (GC 47-044-31), ecoTEC PLUS 824 VUW 246/3-5 R3 (2011-2012) (GC 47-044-31), ecoTEC PLUS 831 VUW 316/3-5 (2005-2005) (GC 47-044-32), ecoTEC PLUS 831 VUW 316/3-5 R1 (2005-2006) (GC 47-044-32), ecoTEC PLUS 831 VUW 316/3-5 R3 (2011-2012) (GC 47-044-32), ecoTEC PLUS 831 VUW 316/3-5 R5 (2013 - 2013) (GC 47-044-32), ecoTEC PLUS 837 VUW 376/3-5 (2005-2005) (GC 47-044-33), ecoTEC PLUS 837 VUW 376/3-5 R1 (2005-2006) (GC 47-044-33), ecoTEC PRO 24 VUW 246/3-3 R1 (2005-2006) (GC 47-044-36), ecoTEC PRO 24 VUW 246/3-3 R2 (2008-2012) (GC 47-044-36), ecoTEC PRO 28 VUW 286/3-3 (2005-2006) (GC 47-044-30), ecoTEC PRO 28 VUW 286/3-3 R1 (2005-2006) (GC 47-044-30), ecoTEC PRO 28 VUW 286/3-3 R2 (GC 47-044-30)
manualmanualVAILLANT appliance manual — VUI 376/3-5 (GC 47-044-39), ecoTEC 937 VUI 376/3-5 (2006-2012) (GC 47-044-39)
manualNo technical questions yet for this part.
