Glow-worm

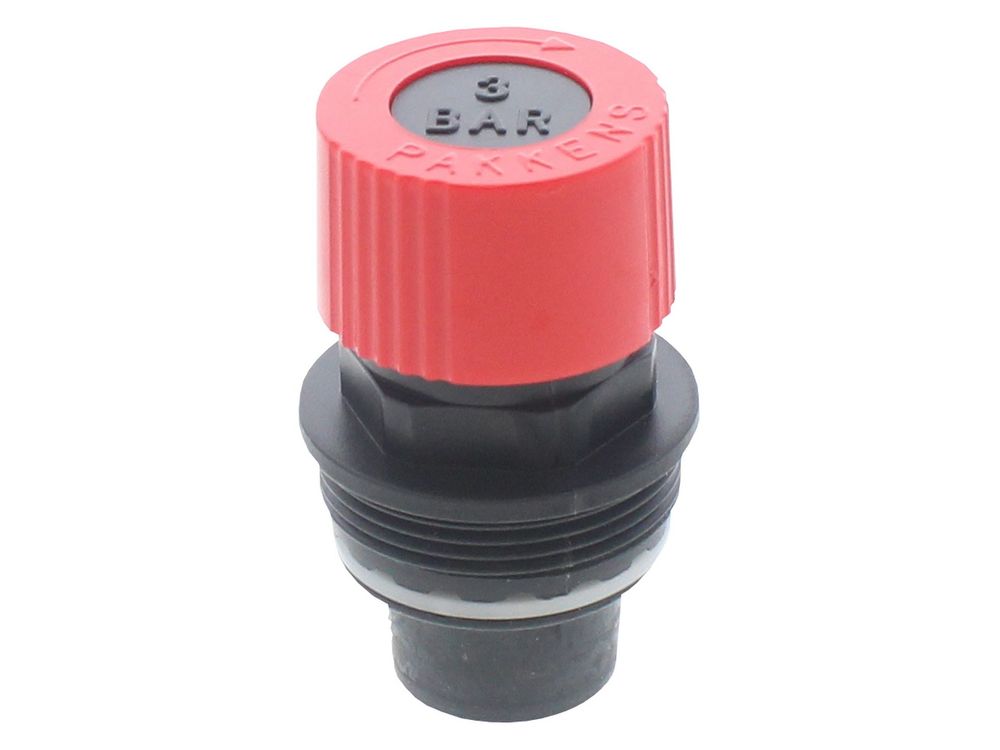

Glow-worm Pressure Relief Valve GLOWWORM0020118190
At a glance
- Part type: Pressure relief valve
- Also known as GLOWWORM0020118190
£31.20
£26.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Glow-worm 0020118190 is a pressure relief valve used in Glow-worm heating appliances. It sits on the pressurised side of the system and opens automatically once the internal pressure reaches its set limit, discharging water through the outlet to protect the boiler, cylinder and connected pipework from over-pressurisation. Because it is a moving, water-facing component, it is a serviceable part that is replaced when it stops sealing correctly or stops responding to changes in system pressure.
Signs this part needs replacing
- Water weeping or dripping from the discharge pipe while the system is cold and at rest
- System pressure climbing steadily, or rising when the boiler is not firing
- The valve failing to reseat after it has opened, leaving a constant trickle at the outlet
- Scale, sludge or debris visible around the valve outlet, holding the seat open
- The pressure gauge sitting above the normal cold-fill figure with no other obvious cause
Before you order
- Check the appliance data badge and confirm the model and GC number match the part you need
- Compare the number on the existing valve with 0020118190 before removing it
- Have a suitable sealing washer or gasket to hand in case the existing one is disturbed during removal
- Isolate the appliance, drain down and depressurise the system before starting work
Mechanical
| Part type | Pressure relief valve |
|---|
Compliance
| Manufacturer part number (MPN) | 0020118190 |
|---|---|
| Commodity code | 8481 40 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5037985085000, FER39809740, GLOWWORM0020118190, 265075904586, 43375788 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM BETACOM 2 24 | 47-019-16 | 47-019-16 | — | — |
| GLOWWORM BETACOM 2 28 | 47-019-17 | 47-019-17 | — | — |
| GLOWWORM BETACOM 24 A | 47-019-13 | 47-019-13 | — | — |
| GLOWWORM BETACOM 28 A | 47-019-14 | 47-019-14 | — | — |
| GLOWWORM EASICOM 24 | 47-019-18 | 47-019-18 | — | — |
| GLOWWORM EASICOM 28 | 47-019-19 | 47-019-19 | — | — |
| GLOWWORM GLOWWORM BETACOM 2 24 | — | — | — | |
| GLOWWORM GLOWWORM BETACOM 2 28 | — | — | — | |
| GLOWWORM GLOWWORM BETACOM 24 A | — | — | — | |
| GLOWWORM GLOWWORM BETACOM 28 A | — | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
GLOWWORM appliance manual — BETACOM 2 24 (GC 47-019-16)
manualmanualGLOWWORM appliance manual — BETACOM 2 28 (GC 47-019-17)
manualmanualGLOWWORM appliance manual — BETACOM 24 A (GC 47-019-13), BETACOM 28 A (GC 47-019-14)
manualmanualGLOWWORM appliance manual — EASICOM 24 (GC 47-019-18)
manualmanualGLOWWORM appliance manual — EASICOM 28 (GC 47-019-19)
manualmanualGLOWWORM appliance manual — ULTIMATE 30C (GC 47-044-48), ULTIMATE 35C (GC 47-044-49)
manualNo technical questions yet for this part.
