Vaillant

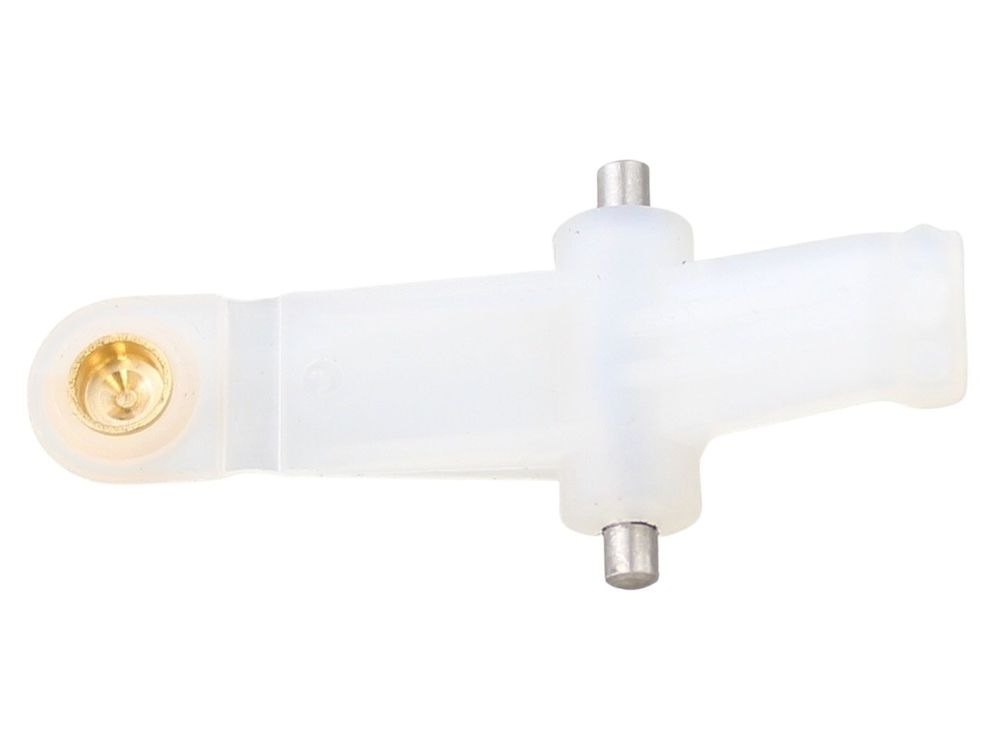

Vaillant Switch Lever 0020107700
Switch lever for the diverter valve microswitch on Vaillant Turbomax combi boilers.
At a glance
- Also known as 1383203
£10.13
£8.44 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 0020107700 is a complete switch lever that operates the rocker switch on the diverter valve microswitch. It is used on Vaillant Turbomax combi boiler models to transmit movement from the diverter valve to the microswitch. This part supersedes earlier codes 188110 and 188112.
Signs this part needs replacing
- Hot water demand is not detected and the boiler does not fire
- Diverter valve moves but the microswitch is not actuated
- Lever is cracked, bent or worn at the contact point
- Intermittent hot water operation as the lever fails to hold the switch
- Visible damage or missing lever on the diverter valve assembly
Before you order
- Confirm your boiler model against the fitment list above
- Check the diverter valve and microswitch assembly for wear or damage
- Compare the existing lever with the part number 0020107700 before fitting
Compliance
| Barcode / EAN | 4024074599716 |
|---|---|
| Alternative numbers | 1383203 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT TURBOmax VUW 242/1E (1998-2000) | 47-044-02 | 47-044-02 | — | — |
| VAILLANT TURBOmax VUW 242E (1995-1998) | 47-044-25 | 47-044-25 | — | — |
| VAILLANT TURBOmax VUW 282/1E (1998-2000) | 47-044-06 | 47-044-06 | — | — |
| VAILLANT TURBOmax VUW 282E (1995-1998) | 47-044-26 | 47-044-26 | — | — |
| VAILLANT VAILLANT TURBOMAX 242 VUW 242/1E (47-044-25) | — | — | — | |
| VAILLANT VAILLANT TURBOMAX 282E VUW 282E (47-044-26) | — | — | — | |
| VAILLANT VAILLANT TURBOMAX VUW 242E (47-044-25) | — | — | — | |
| VAILLANT VAILLANT TURBOMAX VUW 282/1E (47-044-06) | — | — | — | |
| VAILLANT VUW 242 E | 47-044-25 | 47-044-25 | — | — |
| VAILLANT VUW 242/1 E | 47-044-02 | 47-044-02 | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VAILLANT appliance manual — TURBOmax VUW 242/1E (1998-2000) (GC 47-044-02), TURBOmax VUW 282/1E (1998-2000) (GC 47-044-06), VUW 242/1 E (GC 47-044-02), VUW 282/1 E (GC 47-044-06)
manualmanualVAILLANT appliance manual — TURBOmax VUW 242E (1995-1998) (GC 47-044-25), TURBOmax VUW 282E (1995-1998) (GC 47-044-26), VUW 242 E (GC 47-044-25), VUW 282 E (GC 47-044-26)
manualNo technical questions yet for this part.
