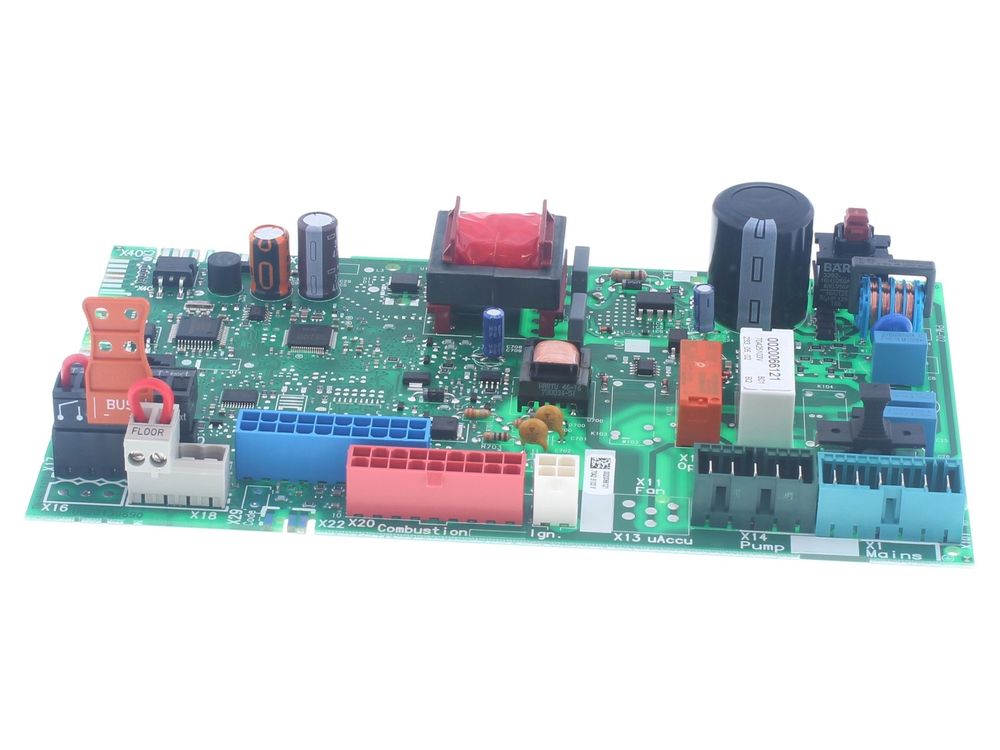

Glow-worm Printed Circuit Board Ultracom GLOWWORM0020097400
Glow-worm Ultracom printed circuit board, part 0020097400, the main control PCB that governs boiler operation and sequencing.
At a glance
- Part type: Printed circuit board
- Appliance family: Ultracom
- Also known as 1340214, N0907-1, GLOWWORM0020097400
£223.10
£185.92 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Glow-worm 0020097400 is a printed circuit board (PCB) used in Ultracom appliances. It is the main control board, handling the electronic sequencing that runs the boiler — reading sensor inputs, driving the fan and pump, and managing ignition and modulation. As a factory-fitted control component, it is matched to the Ultracom platform rather than being a generic board.
Signs this part needs replacing
- The boiler fails to respond to a demand for heat or hot water, with no fan or pump activity.
- Repeated lockouts that clear on reset but return shortly afterwards.
- No display, blank display, or erratic fault codes that do not match the actual fault condition.
- Fan, pump or gas valve not being driven despite the boiler being powered.
- Visible damage to the board — scorching, burnt tracks, swollen capacitors or corrosion from water ingress.
Before you order
- Check the part number on the existing board matches 0020097400, as board revisions can differ between Ultracom variants.
- Confirm the appliance model and GC number from the data badge before ordering.
- Inspect the board housing and surrounding seals for signs of water ingress, as the underlying cause should be corrected at the same time.
- Work on the boiler's electrical controls should be carried out by a competent person, with the appliance isolated at the supply before the board is removed.
Mechanical
| Part type | Printed circuit board |
|---|---|
| Appliance family | Ultracom |
Compliance
| Manufacturer part number (MPN) | 0020097400 |
|---|---|
| Barcode / EAN | 0020097400 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 503798508166, GLOWWORM0020097400, 43375774, 1340214, N0907-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM ULTRACOM 2 12SXi | 41-019-12 | 41-019-12 | — | — |
| GLOWWORM ULTRACOM 2 18SXi | 41-019-13 | 41-019-13 | — | — |
| GLOWWORM ULTRACOM 2 24CXi | 47-019-10 | 47-019-10 | — | — |
| GLOWWORM ULTRACOM 2 30CXi | 47-019-11 | 47-019-11 | — | — |
| GLOWWORM ULTRACOM 2 30SXi | 41-019-14 | 41-019-14 | — | — |
| GLOWWORM ULTRACOM 2 35CXi | 47-019-12 | 47-019-12 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
GLOWWORM appliance manual — ULTRACOM 2 12SXi (GC 41-019-12)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 18SXi (GC 41-019-13)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 24CXi (GC 47-019-10)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 30CXi (GC 47-019-11)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 30SXi (GC 41-019-14)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 35CXi (GC 47-019-12)
manualNo technical questions yet for this part.
