Glow-worm

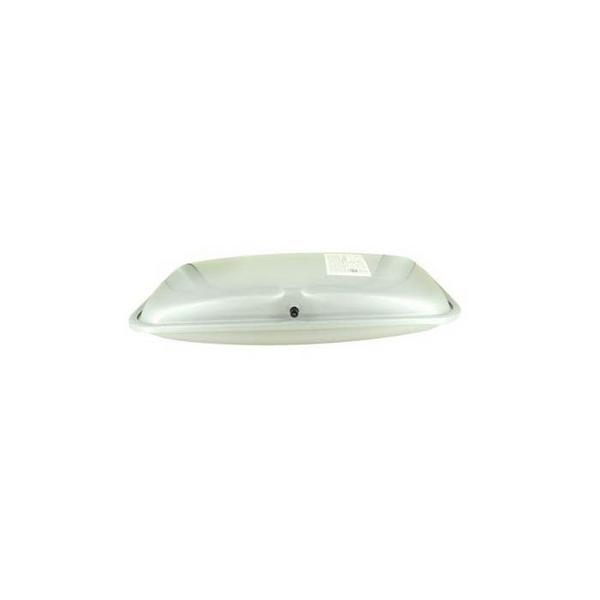

Glow-worm Expansion Vessel 10 Litre GLOWWORM0020097328
At a glance
- Part type: Expansion vessel
- Also known as 1340298, GLOWWORM0020097328
Showing prices
£144.84
£120.70 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Glow-worm 0020097328 is a 10 litre expansion vessel intended for Glow-worm heating appliances. Its job is to take up the increase in water volume as the system heats, keeping circuit pressure within a stable band instead of letting it climb. Inside, a diaphragm separates the water side from a pre-charged air side, which compresses as heated water enters the vessel and re-expands as the system cools.
Signs this part needs replacing
- System pressure reads high when cold, or climbs sharply once the appliance is running.
- Water discharging from the pressure relief valve during normal operation.
- Water present at the air valve on the vessel, or no air pressure registered when the charge is checked.
- Frequent topping up of system pressure to keep the appliance working.
- Corrosion, blistering paint or distortion visible on the vessel shell.
Before you order
- Read the model and GC number from the appliance data badge and match them against the unit being worked on.
- Confirm the vessel capacity and the connection size and thread match the existing component.
- Check whether a replacement sealing washer or gasket is needed for the connection before fitting.
- Allow the system to cool and depressurise before removing the vessel.
Mechanical
| Part type | Expansion vessel |
|---|
Compliance
| Manufacturer part number (MPN) | 0020097328 |
|---|---|
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | GLOWWORM0020097328, 1340298 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM BETACOM 2 24 | 47-019-16 | 47-019-16 | — | — |
| GLOWWORM BETACOM 2 28 | 47-019-17 | 47-019-17 | — | — |
| GLOWWORM BETACOM 24 A | 47-019-13 | 47-019-13 | — | — |
| GLOWWORM BETACOM 28 A | 47-019-14 | 47-019-14 | — | — |
| GLOWWORM BETACOM 3 24C | 47-019-41 | 47-019-41 | — | — |
| GLOWWORM BETACOM 3 30C | 47-019-42 | 47-019-42 | — | — |
| GLOWWORM BETACOM 4 24C | 47-019-52 | 47-019-52 | — | — |
| GLOWWORM BETACOM 4 30C | 47-019-53 | 47-019-53 | — | — |
| GLOWWORM COMPACT 24C | — | — | — | |
| GLOWWORM COMPACT 24C P | — | — | — |
Showing 10 of 95 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
GLOWWORM appliance manual — BETACOM 2 24 (GC 47-019-16)
manualmanualGLOWWORM appliance manual — BETACOM 2 28 (GC 47-019-17)
manualmanualGLOWWORM appliance manual — BETACOM 24 A (GC 47-019-13), BETACOM 28 A (GC 47-019-14)
manualmanualGLOWWORM appliance manual — BETACOM 3 24C (GC 47-019-41), BETACOM 3 30C (GC 47-019-42)
manualmanualGLOWWORM appliance manual — BETACOM 4 24C (GC 47-019-52), BETACOM 4 30C (GC 47-019-53)
manualmanualGLOWWORM appliance manual — EASICOM 2 24C (GC 47-019-22), EASICOM 2 28C (GC 47-019-23)
manualmanualGLOWWORM appliance manual — EASICOM 24 (GC 47-019-18)
manualmanualGLOWWORM appliance manual — EASICOM 28 (GC 47-019-19)
manualmanualGLOWWORM appliance manual — EASICOM 3 24C (GC 47-019-50), EASICOM 3 28C (GC 47-019-51)
manualmanualGLOWWORM appliance manual — EASICOM 3 25S (GC 41-019-49)
manualmanualGLOWWORM appliance manual — ENERGY 12S (GC 41-019-16), ENERGY 15S (GC 41-019-17), ENERGY 18S (GC 41-019-18), ENERGY 25S (GC 41-019-19), ENERGY 30S (GC 41-019-20)
manualmanualGLOWWORM appliance manual — ENERGY 25C (GC 47-019-24), ENERGY 30C (GC 47-019-25), ENERGY 35C (GC 47-019-26)
manualmanualGLOWWORM appliance manual — ESSENTIAL 24C (GC 47-019-27), ESSENTIAL 28C (GC 47-019-28)
manualmanualGLOWWORM appliance manual — ESSENTIAL 24C - P (GC 47-019-39)
manualmanualGLOWWORM appliance manual — SUSTAIN 12S (GC 41-019-36), SUSTAIN 15S (GC 41-019-37), SUSTAIN 18S (GC 41-019-38)
manualmanualGLOWWORM appliance manual — SUSTAIN 25C (GC 47-019-32), SUSTAIN 30C (GC 47-019-33), SUSTAIN 35C (GC 47-019-34)
manualmanualGLOWWORM appliance manual — ULTIMATE 2 30C (GC 47-019-35), ULTIMATE 2 35C (GC 47-019-36)
manualmanualGLOWWORM appliance manual — ULTIMATE 3 25S (GC 41-019-51)
manualmanualGLOWWORM appliance manual — ULTIMATE 3 30C (GC 47-019-55), ULTIMATE 3 35C (GC 47-019-57)
manualmanualGLOWWORM appliance manual — ULTIMATE 30C (GC 47-044-48), ULTIMATE 35C (GC 47-044-49)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 12SXi (GC 41-019-12)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 18SXi (GC 41-019-13)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 24CXi (GC 47-019-10)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 30CXi (GC 47-019-11)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 30SXi (GC 41-019-14)
manualmanualGLOWWORM appliance manual — ULTRACOM 2 35CXi (GC 47-019-12)
manualNo technical questions yet for this part.
