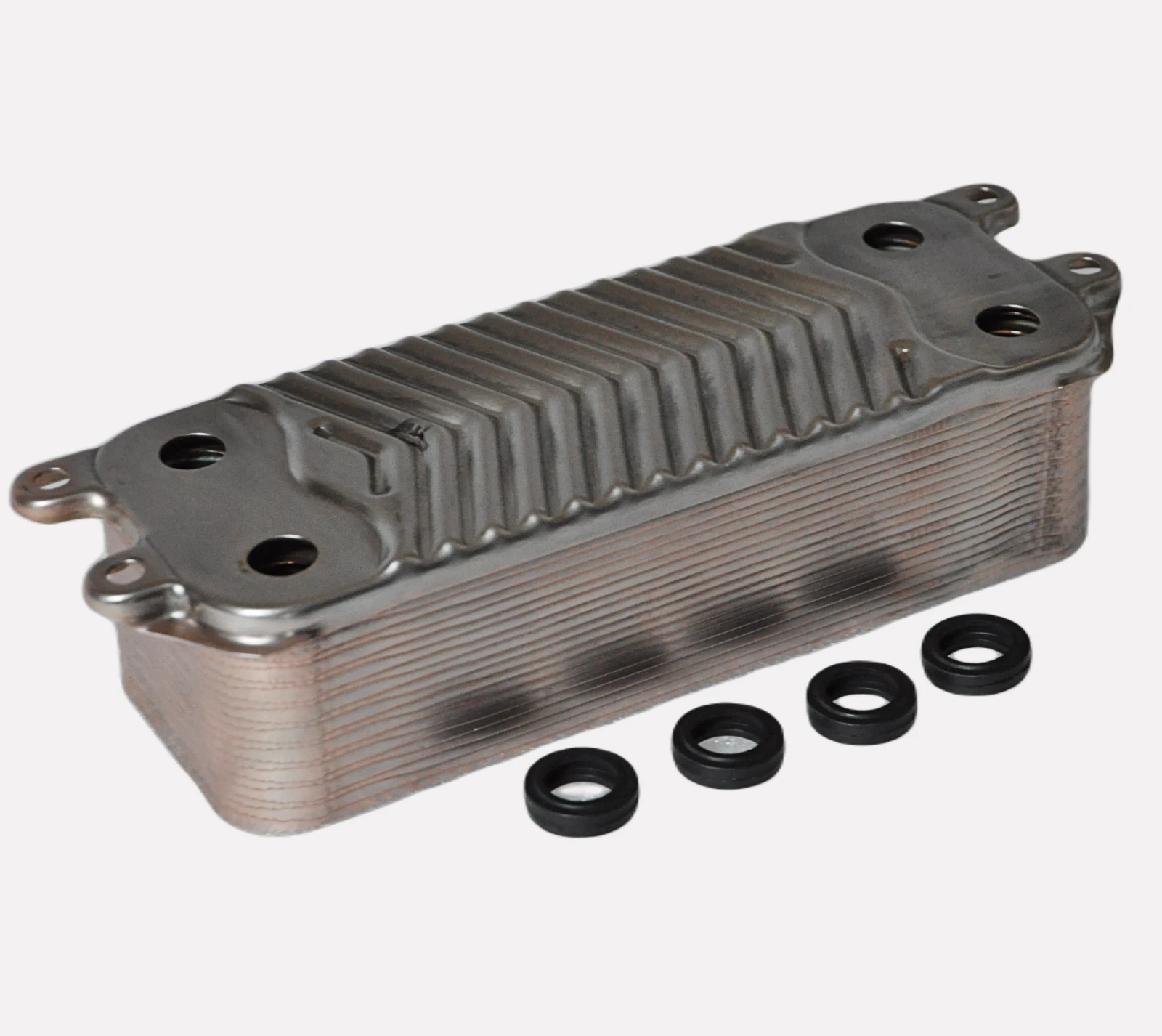

Vaillant Heat Exchanger 19 Plate 0020038572
Vaillant 0020038572 19-plate domestic hot water heat exchanger for ecoTEC Plus and ecoTEC Pro combi boilers.
At a glance
- Part type: Heat exchanger, 19 plate
- Appliance family: Vaillant ecoTEC Plus and ecoTEC Pro combi boilers
- Also known as 1383597, N9344-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£209.65
£174.71 ex. VAT · VAT at 20%
In stock
Order within 5m for same-day dispatch
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 0020038572 is a 19-plate domestic hot water heat exchanger used in the ecoTEC Plus and ecoTEC Pro combi boiler ranges. It transfers heat from the primary circuit into the mains-fed domestic hot water supply, so the plate stack sits directly in the path of the hot water draw-off. The part is supplied in refurbished condition.
Signs this part needs replacing
- Domestic hot water runs hot and cold, or the temperature drifts during a draw-off
- Reduced hot water flow rate at the tap compared with the cold supply
- Water weeping from the plate stack or from the seals between the plates
- Scale or debris blocking the secondary side, common in hard water areas
- Boiler fault codes relating to the domestic hot water circuit or temperature sensing
Before you order
- Check the GC number on the appliance data badge against the compatibility list, as the same boiler name can carry different GC numbers across revisions
- Confirm the part number 0020038572 or one of the alternative numbers matches the component being replaced
- Check whether the seals or gaskets on the existing connection are serviceable before refitting
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Heat exchanger |
|---|
Compliance
| Manufacturer part number (MPN) | 0020038572 |
|---|---|
| GC number | 47-044-40, 47-044-41, 47-044-45, 47-044-46, 47-044-47, 47-044-52, 47-044-53, 47-044-57, 47-044-58, 47-044-82, 47-044-83, 47-044-84, 47-044-85 |
| Barcode / EAN | 4024074524213 |
| Commodity code | 8419 50 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 4024074517147, VAILLANT0020038572, HEAT-EXCHANGER-DHW-19-PLATES, VAILLANT0020038572, 1383597, N9344-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VAILLANT ECOTEC PLUS 824 - VUW 246/5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 824 - VUW 246/5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 824 - VUW 246/5-5 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 831 - VUW 316/5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 831 - VUW 316/5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 831 - VUW 316/5-5 R2 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PRO 28 - VUW 286/5-3 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PRO 28 - VUW 286/5-3 R1 | — | — | — | |
| VAILLANT VUW 196/5-5 R6 | 47-044-83 | 47-044-83 | — | — |
| VAILLANT VUW 246/5-5 | 47-044-40 | 47-044-40 | — | — |
Showing 10 of 57 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
VAILLANT appliance manual — VUW 196/5-5 R6 (GC 47-044-83), VUW 246/5-5 R6 (GC 47-044-84), VUW 246/5-5 R6 LPG (GC 47-044-85), VUW 306/5-5 R6 (GC 47-044-82), ecoTEC PLUS 825 VUW 196/5-5 R6 (2017) (GC 47-044-83), ecoTEC PLUS 832 VUW 246/5-5 R6 (2017) (GC 47-044-84), ecoTEC PLUS 832 VUW 246/5-5 R6 LPG (2017) (GC 47-044-85), ecoTEC PLUS 835 VUW 306/5-5 R6 (2017) (GC 47-044-82)
manualmanualVAILLANT appliance manual — VUW 246/5-5 (GC 47-044-40), VUW 246/5-5 R1 (GC 47-044-40), VUW 246/5-5 R4 (GC 47-044-40), VUW 316/5-5 (GC 47-044-41), VUW 316/5-5 R1 (GC 47-044-41), VUW 316/5-5 R2 (GC 47-044-41), VUW 316/5-5 R4 (GC 47-044-41), ecoTEC PLUS 824 VUW 246/5-5 (2012-2012) (GC 47-044-40), ecoTEC PLUS 824 VUW 246/5-5 R1 (2012-2013) (GC 47-044-40), ecoTEC PLUS 824 VUW 246/5-5 R4 (2015-2015) (GC 47-044-40), ecoTEC PLUS 831 VUW 316/5-5 (2012-2012) (GC 47-044-41), ecoTEC PLUS 831 VUW 316/5-5 R1 (2012-2013) (GC 47-044-41), ecoTEC PLUS 831 VUW 316/5-5 R2 (2013-2015) (GC 47-044-41), ecoTEC PLUS 831 VUW 316/5-5 R4 (2015-2015) (GC 47-044-41)
manualmanualVAILLANT appliance manual — VUW 256/5-5 R4 (GC 47-044-57), VUW 326/5-5 R4 (GC 47-044-58), VUW 356/5-5 R4 (GC 47-044-53), ecoTEC PLUS 825 VUW 256/5-5 R4 (2015) (GC 47-044-57), ecoTEC PLUS 832 VUW 326/5-5 R4 (2015) (GC 47-044-58), ecoTEC PLUS 835 VUW 356/5-5 R4 (2015) (GC 47-044-53)
manualmanualVAILLANT appliance manual — VUW 286/5-3 (GC 47-044-45), VUW 286/5-3 R1 (GC 47-044-45), VUW 286/5-3 R2 (GC 47-044-45), ecoTEC PRO 28 VUW 286/5-3 (2012-2012) (GC 47-044-45), ecoTEC PRO 28 VUW 286/5-3 R1 (2012-2013) (GC 47-044-45), ecoTEC PRO 28 VUW 286/5-3 R2 (2013-2015) (GC 47-044-45)
manualmanualVAILLANT appliance manual — VUW 306/5-3 R4 (GC 47-044-52)
manualNo technical questions yet for this part.
