Glow-worm

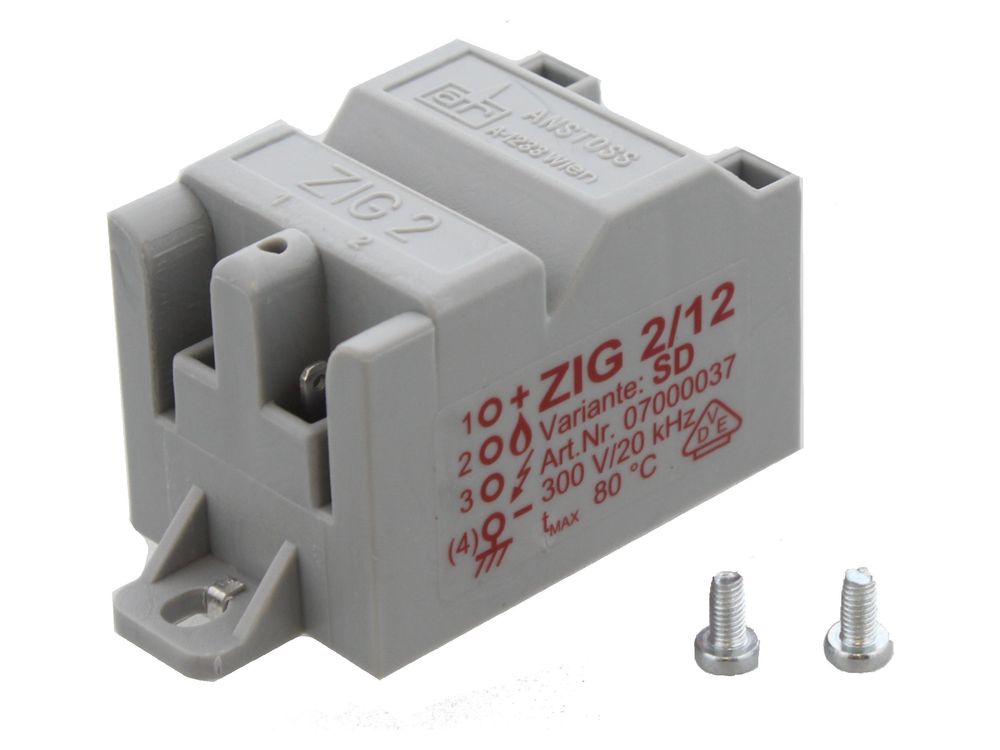

Glow-worm Igniter Flexicom GLOWWORM0020020763
At a glance
- Part type: Igniter
- Also known as GLOWWORM0020020763
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£50.40
£42.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Glow-worm 0020020763 is an igniter assembly used across a number of Glow-worm gas boiler ranges. It generates the high-voltage spark at the burner during the ignition sequence, lighting the gas when the appliance receives a call for heat or hot water. Once the flame is established and proved, the igniter stops sparking until the next demand cycle.
Signs this part needs replacing
- The boiler attempts to fire but does not light, then locks out
- No audible spark at the burner during the ignition sequence
- Repeated ignition attempts before the appliance goes to lockout
- Intermittent lighting, particularly in damp conditions or after long idle periods
- A fault code or lockout pattern consistent with an ignition failure
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct fitment.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Inspect the ignition lead and electrode condition at the same time, as a damaged lead can mimic igniter failure.
Mechanical
| Part type | Igniter |
|---|
Compliance
| Manufacturer part number (MPN) | 0020020763 |
|---|---|
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | GLOWWORM0020020763, 1337837 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM BG330 PLUS | — | — | — | |
| GLOWWORM BRITISH GAS BG330+ | 41-019-11 | 41-019-11 | — | — |
| GLOWWORM FLEXICOM 12HX | 41-315-28 | 41-315-28 | — | — |
| GLOWWORM FLEXICOM 15HX | 41-315-29 | 41-315-29 | — | — |
| GLOWWORM FLEXICOM 18HX | 41-315-42 | 41-315-42 | — | — |
| GLOWWORM FLEXICOM 18SX | 41-315-72 | 41-315-72 | — | — |
| GLOWWORM FLEXICOM 24CX | 47-047-33 | 47-047-33 | — | — |
| GLOWWORM FLEXICOM 24HX | 41-315-61 | 41-315-61 | — | — |
| GLOWWORM FLEXICOM 30CX | 47-047-34 | 47-047-34 | — | — |
| GLOWWORM FLEXICOM 30HX | 41-315-67 | 41-315-67 | — | — |
Showing 10 of 27 compatible appliances.
