Glow-worm Burner 0020020728

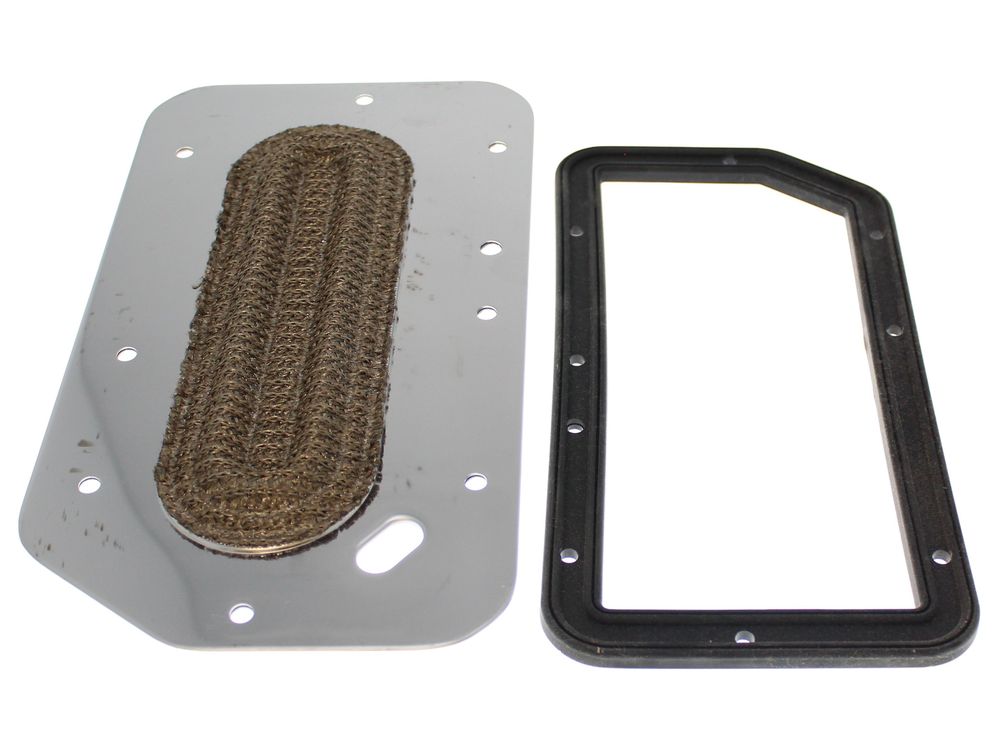

Burner for Glow-worm Flexicom and BG330 PLUS gas boilers, part number 0020020728.
At a glance
- Part type: burner
- Also known as 1337771
£325.69
£271.41 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Glow-worm 0020020728 is a burner assembly used in Glow-worm gas boilers. It sits within the combustion chamber and delivers the gas/air mixture to the flame, so it directly affects ignition, flame stability and combustion quality. It is listed for the Flexicom range as well as the BG330 PLUS and Ultimate 24H appliances.
Signs this part needs replacing
- Repeated flame failure or ignition lockout after the burner has been checked and cleaned
- Visible distortion, cracking or corrosion on the burner body or its surface
- Sooting or discolouration around the burner, indicating poor combustion
- Unstable or uneven flame pattern across the burner
- Combustion readings that cannot be brought within tolerance by servicing alone
Before you order
- Confirm the boiler model and GC number on the appliance data plate against the fit list above
- Check the existing burner against the part number 0020020728 before removal
- Confirm whether the burner is being replaced as part of a combustion-related fault, and complete the relevant flue gas analysis after fitting
- Burner replacement is a gas-carrying task and should be carried out by a competent, registered engineer
Compliance
| Barcode / EAN | 5037985010835 |
|---|---|
| Alternative numbers | 1337771 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM BG330 PLUS | — | — | — | |
| GLOWWORM BRITISH GAS BG330+ | 41-019-11 | 41-019-11 | — | — |
| GLOWWORM FLEXICOM 12HX | 41-315-28 | 41-315-28 | — | — |
| GLOWWORM FLEXICOM 15HX | 41-315-29 | 41-315-29 | — | — |
| GLOWWORM FLEXICOM 18HX | 41-315-42 | 41-315-42 | — | — |
| GLOWWORM FLEXICOM 18SX | 41-315-72 | 41-315-72 | — | — |
| GLOWWORM FLEXICOM 24CX | 47-047-33 | 47-047-33 | — | — |
| GLOWWORM FLEXICOM 24HX | 41-315-61 | 41-315-61 | — | — |
| GLOWWORM FLEXICOM 30CX | 47-047-34 | 47-047-34 | — | — |
| GLOWWORM FLEXICOM 30HX | 41-315-67 | 41-315-67 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
GLOWWORM appliance manual — BRITISH GAS BG330+ (GC 41-019-11)
manualmanualGLOWWORM appliance manual — FLEXICOM 12HX (GC 41-315-28)
manualmanualGLOWWORM appliance manual — FLEXICOM 15HX (GC 41-315-29)
manualmanualGLOWWORM appliance manual — FLEXICOM 18HX (GC 41-315-42)
manualmanualGLOWWORM appliance manual — FLEXICOM 18SX (GC 41-315-72)
manualmanualGLOWWORM appliance manual — FLEXICOM 24CX (GC 47-047-33)
manualmanualGLOWWORM appliance manual — FLEXICOM 24HX (GC 41-315-61)
manualmanualGLOWWORM appliance manual — FLEXICOM 30CX (GC 47-047-34)
manualmanualGLOWWORM appliance manual — FLEXICOM 30HX (GC 41-315-67)
manualmanualGLOWWORM appliance manual — FLEXICOM 30SX (GC 41-047-76)
manualmanualGLOWWORM appliance manual — ULTIMATE 24H (GC 41-019-15)
manualNo technical questions yet for this part.
