Glow-worm
Glow-worm Condense Syphon Kit 0020013711
Condensate syphon kit for Glow-worm CXi, HXi and Ultracom boilers, part number 0020013711.
At a glance
- Also known as 1333115
Showing prices
£46.08
£38.40 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

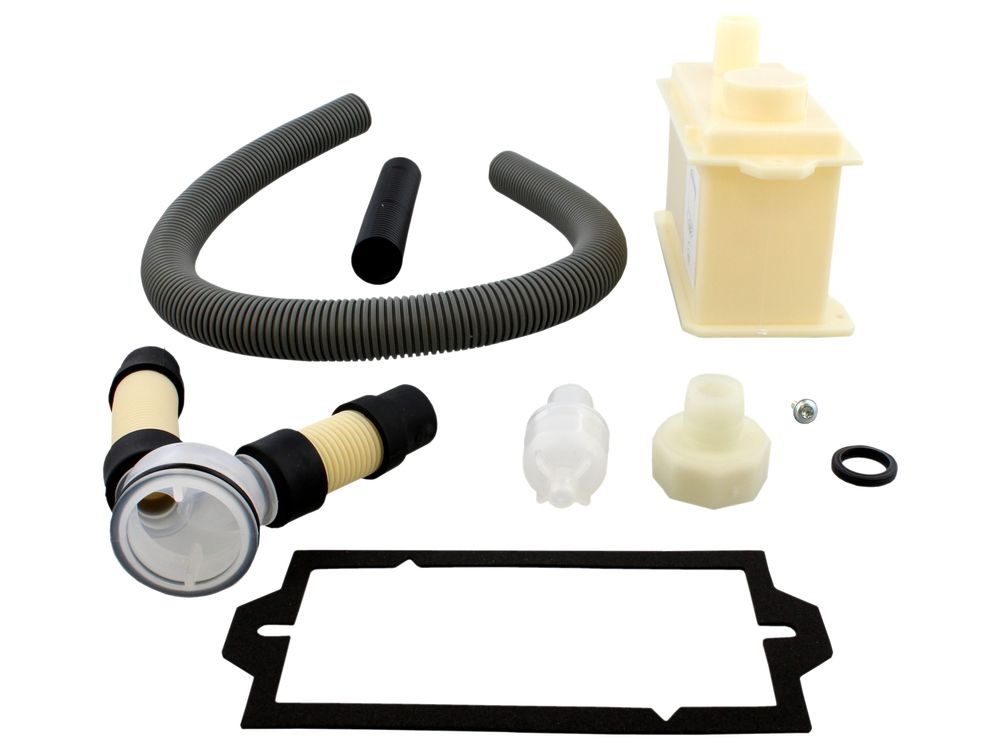

The Glow-worm condense syphon kit, part number 0020013711, is a condensate trap assembly for Glow-worm CXi, HXi and Ultracom gas boilers. It collects condensate produced during combustion and discharges it to the boiler's condensate drain. This kit replaces earlier code 801663.
Signs this part needs replacing
- Water leaking from the boiler casing or from the condensate pipework
- Boiler locking out or displaying a condensate-related fault code
- Gurgling, bubbling or slow-draining noises from the syphon area
- Visible cracks, blockages or scale build-up in the trap body
- Water pooling beneath the boiler
Before you order
- Check your boiler model and GC number against the fitment list above.
- Confirm the existing syphon carries part number 0020013711 or the replaced code 801663.
- Isolate the boiler and drain the condensate system before fitting.
- Refer to the boiler's installation and servicing manual for the correct procedure.
Compliance
| GC number | E85-029 |
|---|---|
| Barcode / EAN | 4024074502730 |
| Alternative numbers | 1333115 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM BRITISH GAS BG330 | 41-047-75 | 41-047-75 | — | — |
| GLOWWORM GLOWWORM ULTRACOM 12HXi | — | — | — | |
| GLOWWORM GLOWWORM ULTRACOM 15HXi | — | — | — | |
| GLOWWORM GLOWWORM ULTRACOM 18HXi | — | — | — | |
| GLOWWORM GLOWWORM ULTRACOM 18SXi | — | — | — | |
| GLOWWORM GLOWWORM ULTRACOM 24CX | — | — | — | |
| GLOWWORM GLOWWORM ULTRACOM 24CXi | — | — | — | |
| GLOWWORM GLOWWORM ULTRACOM 24HXi | — | — | — | |
| GLOWWORM GLOWWORM ULTRACOM 30CX | — | — | — | |
| GLOWWORM GLOWWORM ULTRACOM 30CXi | — | — | — |
Showing 10 of 38 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
