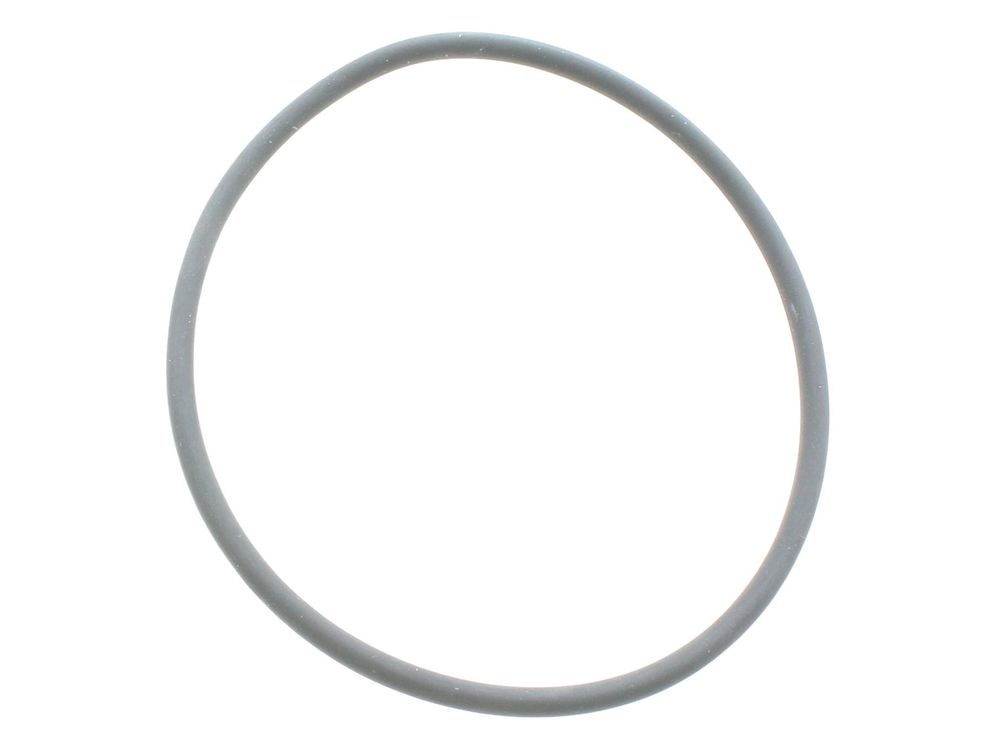

Ravenheat Gas Valve/Mixer O-Ring 64mm x 3mm 0013ORI11005/0
Ravenheat gas valve and mixer O-ring, 64mm outside diameter by 3mm section, part 0013ORI11005/0.
At a glance
- Also known as 1841667
- Gas valve and mixer work must be carried out by a Gas Safe registered engineer
Showing prices
£4.68
£3.90 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat Gas Valve/Mixer O-Ring 0013ORI11005/0 is a 64mm x 3mm sealing ring used on the gas valve and mixer assembly of Ravenheat gas boilers. It forms the gas-tight joint between the valve or mixer body and its mating component, sealing the gasway against leakage. The part is listed by Ravenheat under reference 0013ORI11005/0.
Signs this part needs replacing
- A gas smell or detectable leak around the gas valve or mixer joint
- Visible flattening, hardening, cracking or swelling of the O-ring on strip-down
- Slight weeping or staining at the valve or mixer mating face
- Boiler failing to hold a stable flame or pressure at the gas valve assembly
- O-ring damaged or nicked during previous servicing
Before you order
- Confirm the existing O-ring measures 64mm outside diameter with a 3mm section
- Check the boiler model against the fitment list, including natural gas or LPG variant
- Verify the gas valve or mixer part number on the appliance before ordering
- Gas valve and mixer work must be carried out by a Gas Safe registered engineer
Compliance
| GC number | H61-694 |
|---|---|
| Barcode / EAN | 5060022143296 |
| Alternative numbers | 1841667 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT 120 COMBISTORE (T) LOW NOX | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT 150 COMBISTORE (T) LOW NOX | 47-581-40 | 47-581-40 | — | — |
| RAVENHEAT CS 80 | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 80 LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 90 | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT CS 90 LPG | 47-581-49 | 47-581-49 | — | — |
Showing 10 of 70 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
RAVENHEAT appliance manual — 120 COMBISTORE (T) LOW NOX (GC 47-581-39), 150 COMBISTORE (T) LOW NOX (GC 47-581-40), CSI 120 T COMBIPLUS LOW NOX, CSI 150 T COMBIPLUS LOW NOX
manualmanualRAVENHEAT appliance manual — CS 80 (GC 47-581-46), CS 80 (T) (GC 47-581-46), CS 80 (T) LPG (GC 47-581-47), CS 80 LPG (GC 47-581-47), CS 90 (GC 47-581-48), CS 90 (T) (GC 47-581-48), CS 90 (T) LPG (GC 47-581-49), CS 90 LPG (GC 47-581-49)
manualmanualRAVENHEAT appliance manual — CS SYSTEM 3-20, CS SYSTEM 3-20 LPG, CS SYSTEM 4-24, CS SYSTEM 4-24 LPG, WH SYSTEM 3-20, WH SYSTEM 3-20 LPG, WH SYSTEM 4-24, WH SYSTEM 4-24 LPG
manualmanualRAVENHEAT appliance manual — CSI 120 LOW NOX LPG (GC 47-581-38), CSI 120 LOW NOX NATURAL GAS (GC 47-581-37), CSI 120 T LOW NOX LPG (GC 47-581-38), CSI 120 T LOW NOX NATURAL GAS (GC 47-581-39), CSI 150 LOW NOX LPG, CSI 150 LOW NOX NATURAL GAS, CSI 150 T LOW NOX LPG (GC 47-581-42), CSI 150 T LOW NOX NATURAL GAS (GC 47-581-40)
manualmanualRAVENHEAT appliance manual — HE 120N (T) LOW NOX, HE 120N LOW NOX, HE 150N (T) LOW NOX, HE 150N LOW NOX
manualmanualRAVENHEAT appliance manual — HE 25S COMPACT, HE 30S COMPACT
manualmanualRAVENHEAT appliance manual — HE 80, HE 80 LPG, HE 80 T, HE 80 T LPG, HE 98, HE 98 LPG, HE 98 T, HE 98 T LPG
manualmanualRAVENHEAT appliance manual — HE 80S SYSTEM, HE 80S SYSTEM LPG, HE 98S SYSTEM, HE 98S SYSTEM LPG
manualmanualRAVENHEAT appliance manual — HE 80S, HE 98S
manualmanualRAVENHEAT appliance manual — WHITE HEAT WH 80 LPG (GC 47-506-06), WHITE HEAT WH 80 NAT GAS (GC 47-506-05), WHITE HEAT WH 80 T LPG (GC 47-506-06), WHITE HEAT WH 80 T NAT GAS (GC 47-506-05), WHITE HEAT WH 90 LPG (GC 47-506-08), WHITE HEAT WH 90 NAT GAS (GC 47-506-07), WHITE HEAT WH 90 T LPG (GC 47-506-08), WHITE HEAT WH 90 T NAT GAS (GC 47-506-07)
