Ravenheat Fan Assembly Little Star 0012VEN09005/0
Ravenheat 0012VEN09005/0 fan assembly for Little Star LS gas boilers, moving combustion air and flue products and proving fan operation before ignition.
At a glance
- Part type: Fan assembly
- Appliance family: Little Star LS
- Also known as FAN---LS80LS100, RAVENHEAT0012VEN09005/0, 1840965
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£250.16
£208.47 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

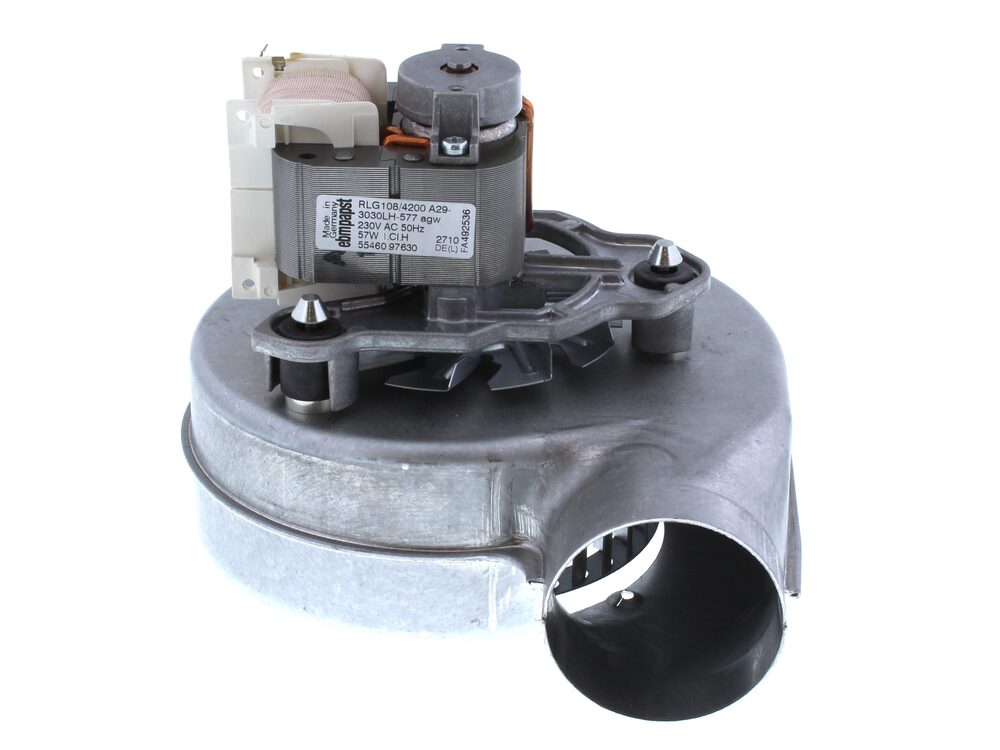

The Ravenheat 0012VEN09005/0 is a fan assembly supplied for Ravenheat Little Star LS gas boilers. It draws combustion air into the burner and pushes flue products out through the terminal, and it provides the fan proving signal the boiler needs before it will allow ignition. Because the fan sits at the centre of the combustion and flue path, a worn or failing unit usually shows up as a lockout or an ignition fault rather than an obvious mechanical break.
Signs this part needs replacing
- The boiler locks out or fails to light, with a fan or air pressure fault indicated on the controls
- Grinding, whining or rumbling from the fan area during start-up or while running
- The fan runs intermittently, runs at a fixed speed, or does not start when there is a demand for heat
- Repeated lockouts after resetting, particularly on cold starts
- Visible damage, excessive play or heavy contamination on the impeller or housing
Before you order
- Check the GC number and model shown on the appliance data badge against the compatibility list.
- Confirm the number on the existing fan matches 0012VEN09005/0 before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Fan assembly |
|---|---|
| Appliance family | Little Star LS |
Compliance
| Manufacturer part number (MPN) | 0012VEN09005/0 |
|---|---|
| Barcode / EAN | 5060022142183 |
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | RAVENHEAT0012VEN09005/0, 0012VEN090050, RAVENHEAT0012VEN09005/0, 0012VEN090050, FAN---LS80LS100, RAVENHEAT0012VEN09005/0, RAVENHEAT0012VEN09005/0, 1840965 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT LITTLE STAR LS 100 LPG | 47-581-35 | 47-581-35 | — | — |
| RAVENHEAT LITTLE STAR LS 100 NATURAL GAS | 47-581-33 | 47-581-33 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T LPG | 47-581-36 | 47-581-36 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T NATURAL GAS | 47-581-34 | 47-581-34 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) LPG | 47-581-32 | 47-581-32 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) NATURAL GAS | 47-581-30 | 47-581-30 | — | — |
| RAVENHEAT LITTLE STAR LS 80 LPG | 47-581-31 | 47-581-31 | — | — |
| RAVENHEAT LITTLE STAR LS 80 NATURAL GAS | 47-581-29 | 47-581-29 | — | — |
| RAVENHEAT RAVENHEAT LITTLE STAR LS100 | — | — | — | |
| RAVENHEAT RAVENHEAT LITTLE STAR LS100T | — | — | — |
Showing 10 of 30 compatible appliances.
