Ravenheat Potentiometer DHW/CH 0012POT05005/0

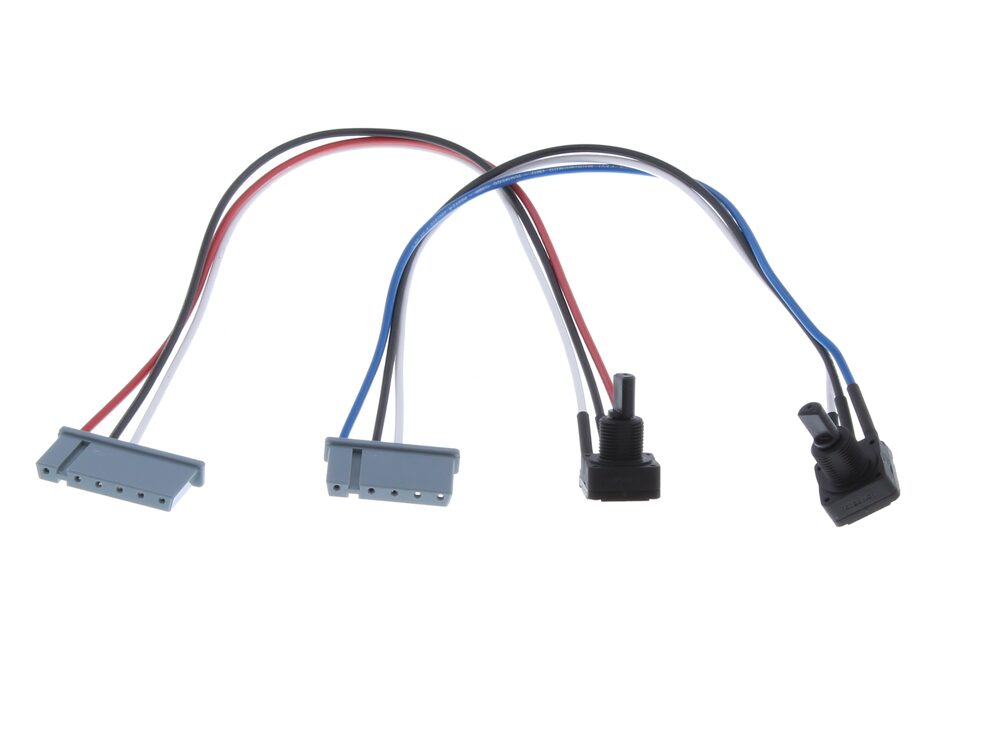

Ravenheat DHW/CH potentiometer with two grey plugs and three wires each, for CSI, RSF, HE and STAR series gas boilers.
At a glance
- Also known as DHWCH-POTENTIOMETER-RSF8284100, 1840935
Showing prices
£49.18
£40.98 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat DHW/CH potentiometer (part number 0012POT05005/0) is a control component fitted to Ravenheat gas boilers. It sets the domestic hot water and central heating temperature. The part carries two grey plugs, each with three wires.
Signs this part needs replacing
- The DHW temperature cannot be adjusted, or responds erratically to the control knob
- The CH temperature control has no effect on boiler output
- The boiler does not modulate when the temperature setting is changed
- Temperature settings drift or jump without any input at the control
Before you order
- Confirm your boiler model against the fitment list above
- Check the existing potentiometer has two grey plugs with three wires in each
- Verify the part number 0012POT05005/0 on the component or in the manufacturer's parts list
- Note the GC number for your appliance where one is listed
Compliance
| GC number | E23-714 |
|---|---|
| Barcode / EAN | 5060022146365 |
| Alternative numbers | DHWCH-POTENTIOMETER-RSF8284100, 1840935 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 85 AAA LPG | — | — | — | |
| RAVENHEAT CSI 85 AAA NATURAL GAS | 47-581-43 | 47-581-43 | — | — |
| RAVENHEAT CSI 85 AAAT LPG | — | — | — | |
| RAVENHEAT CSI 85 AAAT NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85 LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT CSI 85 NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
| RAVENHEAT CSI 85A LPG | — | — | — | |
| RAVENHEAT CSI 85A NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85A T LPG | — | — | — | |
| RAVENHEAT CSI 85A T NATURAL GAS | — | — | — |
Showing 10 of 84 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
RAVENHEAT appliance manual — CSI 85 AAA LPG, CSI 85 AAA NATURAL GAS (GC 47-581-43), CSI 85 AAAT LPG, CSI 85 AAAT NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI 85 LPG (GC 47-581-23), CSI 85 NATURAL GAS (GC 47-581-19), CSI 85T LPG (GC 47-581-24), CSI 85T NATURAL GAS (GC 47-581-20)
manualmanualRAVENHEAT appliance manual — CSI 85A LPG, CSI 85A NATURAL GAS, CSI 85A T LPG, CSI 85A T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI 85B LPG, CSI 85B NATURAL GAS (GC 47-581-45), CSI 85B T LPG, CSI 85B T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI SYSTEM AAA LPG, CSI SYSTEM AAA NATURAL GAS, CSI SYSTEM AAA T LPG, CSI SYSTEM AAA T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI SYSTEM LPG (GC 47-581-03), CSI SYSTEM NATURAL GAS (GC 47-581-01), CSI SYSTEM T LPG (GC 41-581-04), CSI SYSTEM T NATURAL GAS (GC 47-581-02)
manualmanualRAVENHEAT appliance manual — LITTLE STAR LS 100 LPG (GC 47-581-35), LITTLE STAR LS 100 NATURAL GAS (GC 47-581-33), LITTLE STAR LS 100 T LPG (GC 47-581-36), LITTLE STAR LS 100 T NATURAL GAS (GC 47-581-34), LITTLE STAR LS 80 (T) LPG (GC 47-581-32), LITTLE STAR LS 80 (T) NATURAL GAS (GC 47-581-30), LITTLE STAR LS 80 LPG (GC 47-581-31), LITTLE STAR LS 80 NATURAL GAS (GC 47-581-29), SILVER STAR 24 LPG, SILVER STAR 24 NATURAL GAS (GC 47-581-29), SILVER STAR 24T LPG, SILVER STAR 24T NATURAL GAS (GC 47-581-30), SILVER STAR 29 LPG (GC 47-581-35), SILVER STAR 29 NATURAL GAS (GC 47-581-33), SILVER STAR 29T LPG (GC 47-581-36), SILVER STAR 29T NATURAL GAS (GC 47-581-34), WHITE STAR 24 LPG, WHITE STAR 24 NATURAL GAS (GC 47-581-29), WHITE STAR 24T LPG, WHITE STAR 24T NATURAL GAS (GC 47-581-30), WHITE STAR 29 LPG (GC 47-581-35), WHITE STAR 29 NATURAL GAS (GC 47-581-33), WHITE STAR 29T LPG (GC 47-581-36), WHITE STAR 29T NATURAL GAS (GC 47-581-34)
manualmanualRAVENHEAT appliance manual — RSF 100E LPG, RSF 100E NATURAL GAS (GC 47-581-25), RSF 100E T LPG, RSF 100E T NATURAL GAS (GC 47-581-26), RSF 84E LPG, RSF 84E NATURAL GAS (GC 47-581-27), RSF 84E T LPG, RSF 84E T NATURAL GAS (GC 47-581-28)
manualmanualRAVENHEAT appliance manual — RSF 82E LPG, RSF 82E NATURAL GAS (GC 47-581-18), RSF 82E T LPG, RSF 82E T NATURAL GAS (GC 47-581-04)
manualNo technical questions yet for this part.
