Ravenheat

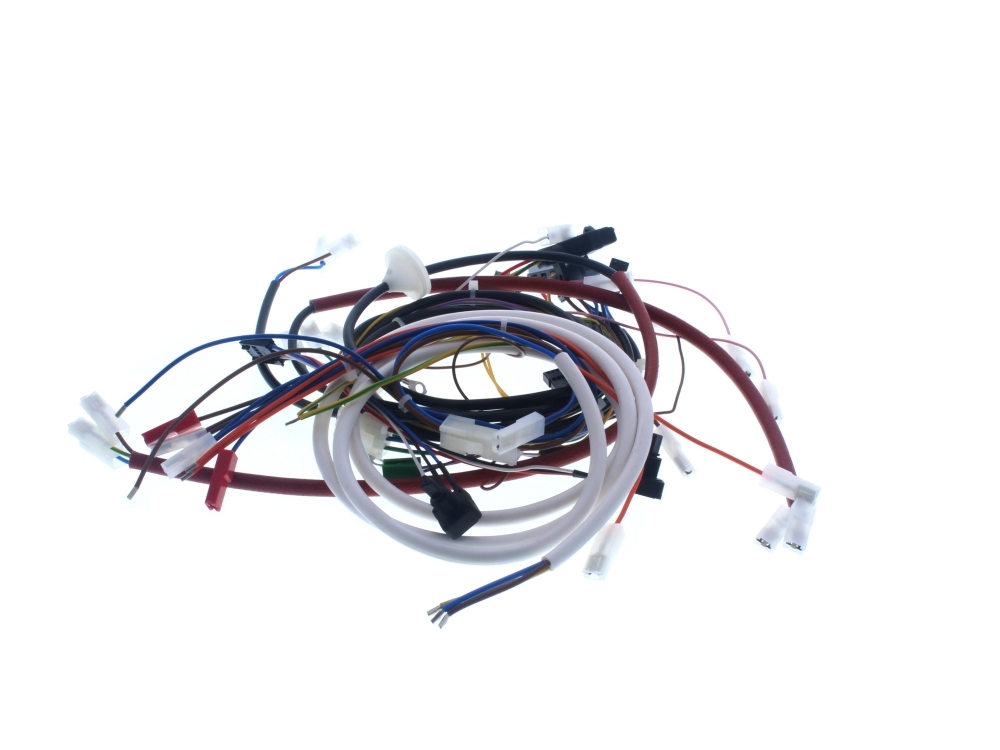

Ravenheat Wiring Harness 0012IMP08006/1
Ravenheat wiring harness 0012IMP08006/1 for MK2 boilers with built-in ignition on the PCB.
At a glance
- Also known as WIRING-HARNESS-0204-8410085, 1841615
£125.68
£104.73 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0012IMP08006/1 is a wiring harness for Ravenheat gas boilers. It is supplied for the MK2 version of the appliance only — the variant with built-in ignition on the PCB. The harness carries the electrical connections between the boiler's control components and the printed circuit board.
Signs this part needs replacing
- The boiler fails to fire or cuts out intermittently with no other fault found
- Visible damage to the harness, such as chafed, cracked or heat-affected insulation
- Loose, corroded or discoloured connector terminals at the harness ends
- Continuity faults or open circuits traced along the harness during electrical testing
- Fault codes or lockouts that persist after the PCB and other controls have been checked
Before you order
- Confirm the appliance is the MK2 version with built-in ignition on the PCB, as this harness is not for earlier variants
- Check the model and GC number against the fitment list above
- Inspect the existing harness connectors and routing so the replacement matches the installation
- Verify the part number on the existing component or the manufacturer's parts list before ordering
Compliance
| Barcode / EAN | 5060022149656 |
|---|---|
| Alternative numbers | WIRING-HARNESS-0204-8410085, 0012IMP080061, 1841615 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT RSF 84E T LPG | — | — | — | |
| RAVENHEAT RSF 84E T NATURAL GAS | 47-581-28 | 47-581-28 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
