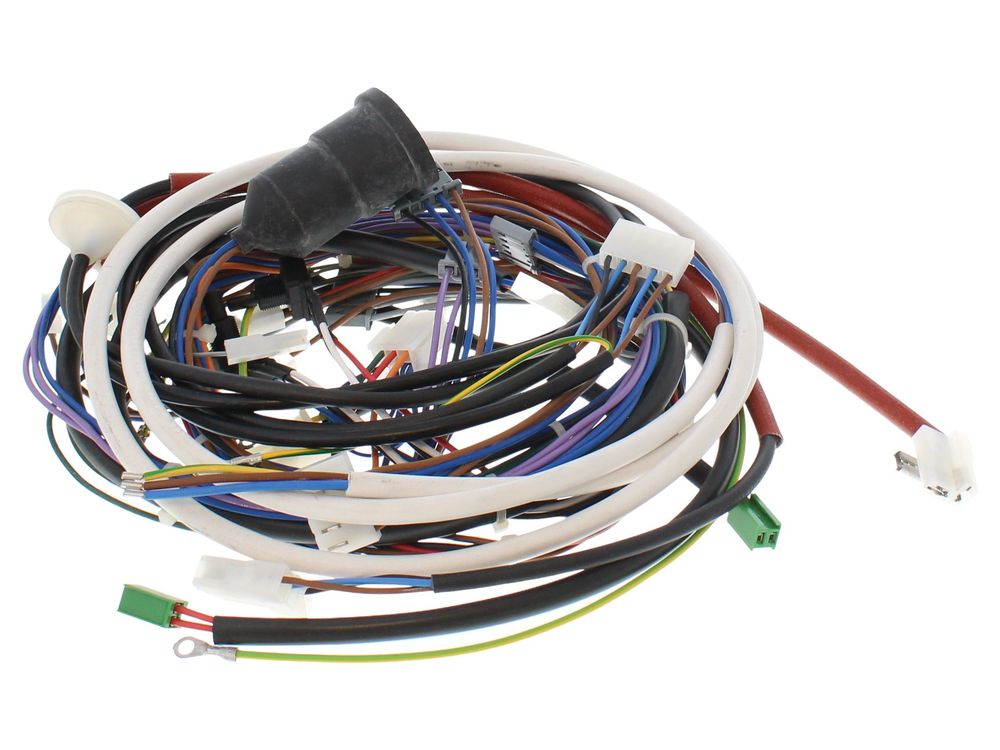

Ravenheat Wiring Harness 0012IMP08005/0
Wiring harness for Ravenheat RSF 84E T boilers, suitable for the MK1 version fitted with an ignition box.
At a glance
- Also known as 1841185
£125.68
£104.73 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a wiring harness manufactured by Ravenheat for the RSF 84E T appliance family. It is the loom that carries electrical connections between the boiler's controls, ignition box and associated components. This harness is specific to the MK1 version of the appliance — the variant fitted with an ignition box.
Signs this part needs replacing
- Brittle, cracked or perished insulation on the loom
- Burnt, discoloured or corroded connector terminals
- Intermittent ignition or firing faults traced to the harness
- Boiler failing to fire or cutting out due to a broken conductor
- Visible chafing or damage where the loom routes through the casing
Before you order
- Confirm the appliance is the MK1 version fitted with an ignition box, as this harness is not suited to other variants
- Check the model against the fitment list above before ordering
- Inspect the existing harness and connector arrangement to confirm it matches
- Isolate the electrical supply to the boiler before any inspection or replacement work
Compliance
| Barcode / EAN | 5060022141896 |
|---|---|
| Alternative numbers | 1841185 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT RSF 84E T LPG | — | — | — | |
| RAVENHEAT RSF 84E T NATURAL GAS | 47-581-28 | 47-581-28 | — | — |
