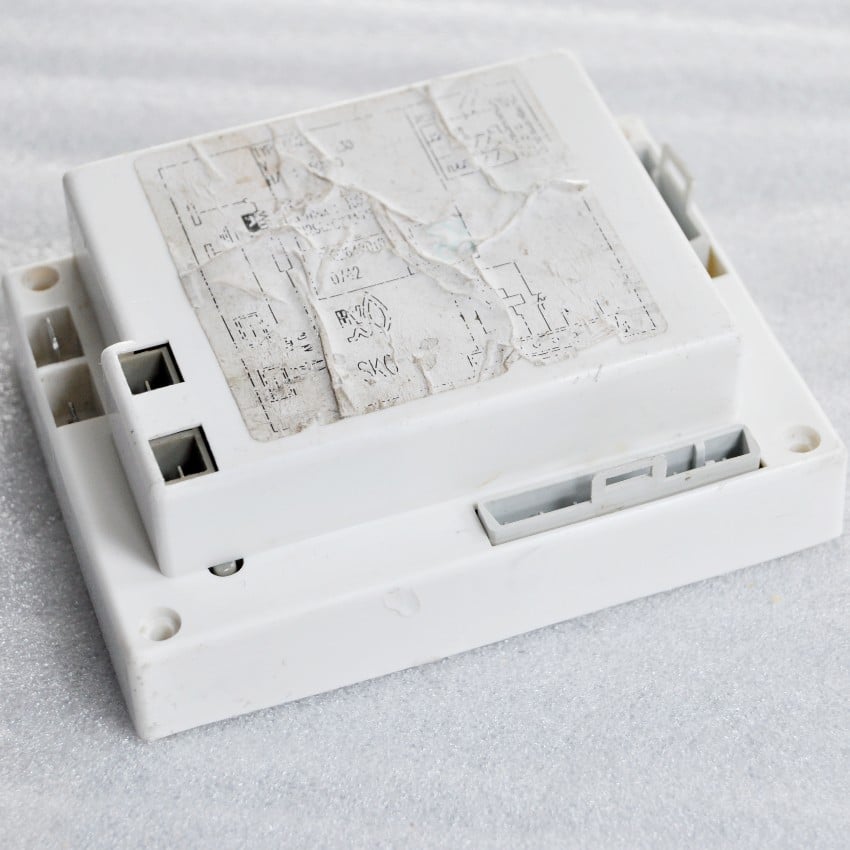

Ravenheat Ignition Control PCB 0012GEN11005/0
At a glance
- Part type: ignition control printed circuit board
- Also known as 1841191
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£254.00
£211.67 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This ignition control printed circuit board is a Ravenheat control board used across the manufacturer's CSI range of gas boilers. It works as the control centre of the appliance, taking readings from sensors, switches and thermostats and regulating each stage of the operating sequence. It also holds the boiler to its safety limits, shutting the appliance down when internal readings move outside normal parameters.
Signs this part needs replacing
- The boiler drops to lockout and needs repeated manual resets
- No ignition spark, or the burner fails to light when there is a call for heat
- The fan or pump runs but the appliance never fires
- Intermittent shutdowns or erratic behaviour during a heating or hot water demand
- Fault codes or error indications linked to ignition or board control
Before you order
- Check the GC number on the appliance data badge against the models listed above.
- Confirm the model and serial number, as this board is used across several CSI variants.
- Note that the board is supplied in seller refurbished condition.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Ignition control printed circuit board |
|---|
Compliance
| Manufacturer part number (MPN) | 0012GEN11005/0 |
|---|---|
| Barcode / EAN | 5060022143166 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1841191 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 120 LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 LOW NOX NATURAL GAS | 47-581-37 | 47-581-37 | — | — |
| RAVENHEAT CSI 120 T LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 T LOW NOX NATURAL GAS | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT CSI 150 LOW NOX LPG | — | — | — | |
| RAVENHEAT CSI 150 LOW NOX NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 150 T LOW NOX LPG | 47-581-42 | 47-581-42 | — | — |
| RAVENHEAT CSI 150 T LOW NOX NATURAL GAS | 47-581-40 | 47-581-40 | — | — |
| RAVENHEAT HE 120N (T) LOW NOX | — | — | — | |
| RAVENHEAT HE 120N LOW NOX | — | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CSI 120 LOW NOX LPG (GC 47-581-38), CSI 120 LOW NOX NATURAL GAS (GC 47-581-37), CSI 120 T LOW NOX LPG (GC 47-581-38), CSI 120 T LOW NOX NATURAL GAS (GC 47-581-39), CSI 150 LOW NOX LPG, CSI 150 LOW NOX NATURAL GAS, CSI 150 T LOW NOX LPG (GC 47-581-42), CSI 150 T LOW NOX NATURAL GAS (GC 47-581-40)
manualmanualRAVENHEAT appliance manual — HE 120N (T) LOW NOX, HE 120N LOW NOX, HE 150N (T) LOW NOX, HE 150N LOW NOX
manualNo technical questions yet for this part.
