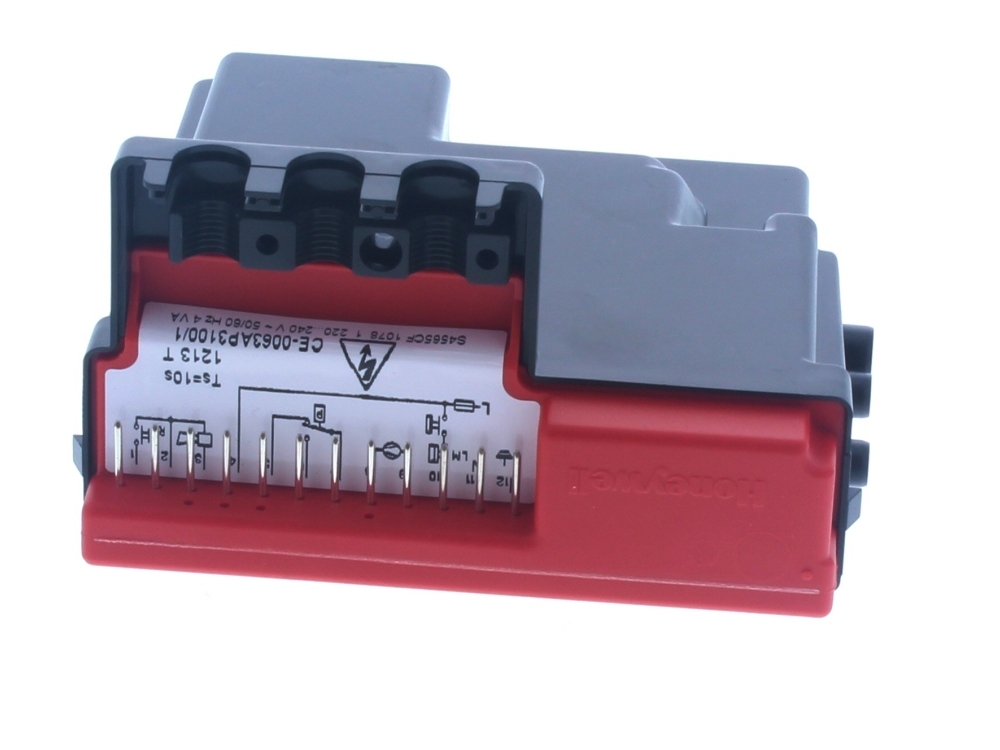

Ravenheat Printed Circuit Board Ignition Mk1 0012GEN09010/0
At a glance
- Part type: PCB printed circuit board / control box
- Appliance family: Little Star
- Also known as PCB---LS80-S4565CF1078, PRINTED-IGNITION-BOARD---LS80LS100, RAVENHEAT0012GEN09010/0, 1840905
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£232.60
£193.83 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0012GEN09010/0 is a printed circuit board that controls the ignition sequence on Little Star boilers. It manages the spark generation and flame proving side of the start-up cycle, so the appliance can light safely and move into normal running. This listing covers the Mk1 ignition version of the board only.
Signs this part needs replacing
- The boiler calls for heat but the ignition sequence does not start.
- No spark is produced at the electrode even though the ignition lead and electrode test correctly.
- The appliance locks out during or shortly after the ignition attempt.
- Lockouts clear on reset but return on the next demand.
- Ignition is intermittent, with the boiler lighting on some attempts and failing on others.
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list to confirm the board suits your boiler.
- Confirm the existing board is the Mk1 ignition version, as this part is listed for Mk1 only.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | PCB Printed Circuit Board/Control Boxes |
|---|---|
| Appliance family | Little Star |
Compliance
| Manufacturer part number (MPN) | 0012GEN09010/0 |
|---|---|
| Barcode / EAN | 5060022142091 |
| Commodity code | 8537 10 00 10 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 7625870431926, RAVENHEAT0012GEN09010/0, RAVENHEAT0012GEN09010/0, PCB---LS80-S4565CF1078, PRINTED-IGNITION-BOARD---LS80LS100, RAVENHEAT0012GEN09010/0, RAVENHEAT0012GEN09010/0, 1840905 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT LITTLE STAR LS 100 LPG | 47-581-35 | 47-581-35 | — | — |
| RAVENHEAT LITTLE STAR LS 100 NATURAL GAS | 47-581-33 | 47-581-33 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T LPG | 47-581-36 | 47-581-36 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T NATURAL GAS | 47-581-34 | 47-581-34 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) LPG | 47-581-32 | 47-581-32 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) NATURAL GAS | 47-581-30 | 47-581-30 | — | — |
| RAVENHEAT LITTLE STAR LS 80 LPG | 47-581-31 | 47-581-31 | — | — |
| RAVENHEAT LITTLE STAR LS 80 NATURAL GAS | 47-581-29 | 47-581-29 | — | — |
| RAVENHEAT RAVENHEAT LITTLE STAR LS100 | — | — | — | |
| RAVENHEAT RAVENHEAT LITTLE STAR LS100T | — | — | — |
Showing 10 of 30 compatible appliances.
