Ravenheat Ignition Printed Circuit Board Honeywell Mk1 0012GEN05010/0

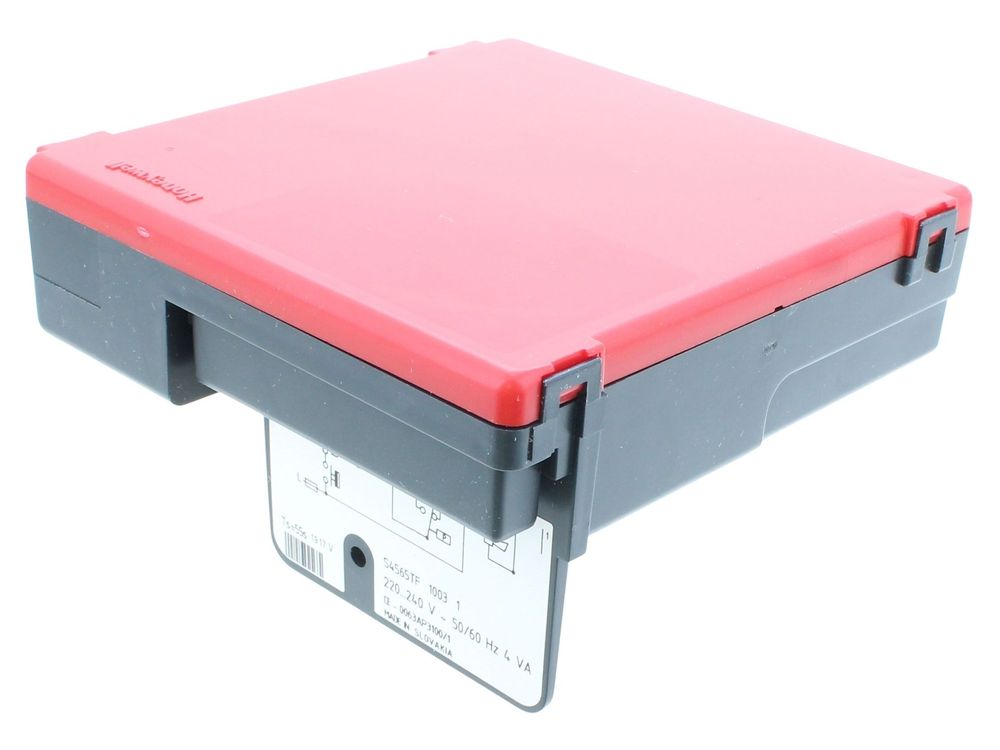

Ravenheat 0012GEN05010/0 ignition PCB for Honeywell Mk1 boilers, identified by the red and black ignition box on the side of the gas valve.
At a glance
- Part type: PCB printed circuit board / control box
- Also known as PCB---S4565TF1003, PRINTIGNBOARD-HWELL-RED841008285SY, 1840899
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£232.60
£193.83 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0012GEN05010/0 is an ignition printed circuit board supplied by Ravenheat for its gas boiler range. It forms part of the ignition and control circuit, handling the spark sequence that lights the burner and the flame supervision that follows. This is the Honeywell Mk1 version, used on appliances where the ignition box is mounted on the side of the gas valve and is finished in red and black.
Signs this part needs replacing
- The boiler calls for heat but the burner does not light and the appliance locks out.
- No spark is produced at the ignition electrode when the boiler starts its sequence.
- Ignition is intermittent, with the boiler lighting on some attempts and locking out on others.
- The board shows heat damage, scorching, discoloured components or burnt tracks.
- The boiler lights briefly and then shuts down instead of running through its cycle.
Before you order
- Confirm the ignition box is fitted to the side of the gas valve and is red and black in colour, which identifies the Honeywell Mk1 version.
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | PCB Printed Circuit Board/Control Boxes |
|---|
Compliance
| Manufacturer part number (MPN) | 0012GEN05010/0 |
|---|---|
| Barcode / EAN | 5060022146310 |
| Commodity code | 8537 10 91 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | PCB---S4565TF1003, PRINTIGNBOARD-HWELL-RED841008285SY, 1840899 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 85 LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT CSI 85 NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
| RAVENHEAT CSI 85T LPG | 47-581-24 | 47-581-24 | — | — |
| RAVENHEAT CSI 85T NATURAL GAS | 47-581-20 | 47-581-20 | — | — |
| RAVENHEAT CSI PRIMARY LPG | 41-581-06 | 41-581-06 | — | — |
| RAVENHEAT CSI PRIMARY NATURAL GAS | 41-581-05 | 41-581-05 | — | — |
| RAVENHEAT CSI PRIMARY WITH TIMER LPG | — | — | — | |
| RAVENHEAT CSI PRIMARY WITH TIMER NATURAL GAS | — | — | — | |
| RAVENHEAT CSI SYSTEM AAA LPG | — | — | — | |
| RAVENHEAT CSI SYSTEM AAA NATURAL GAS | — | — | — |
Showing 10 of 43 compatible appliances.
