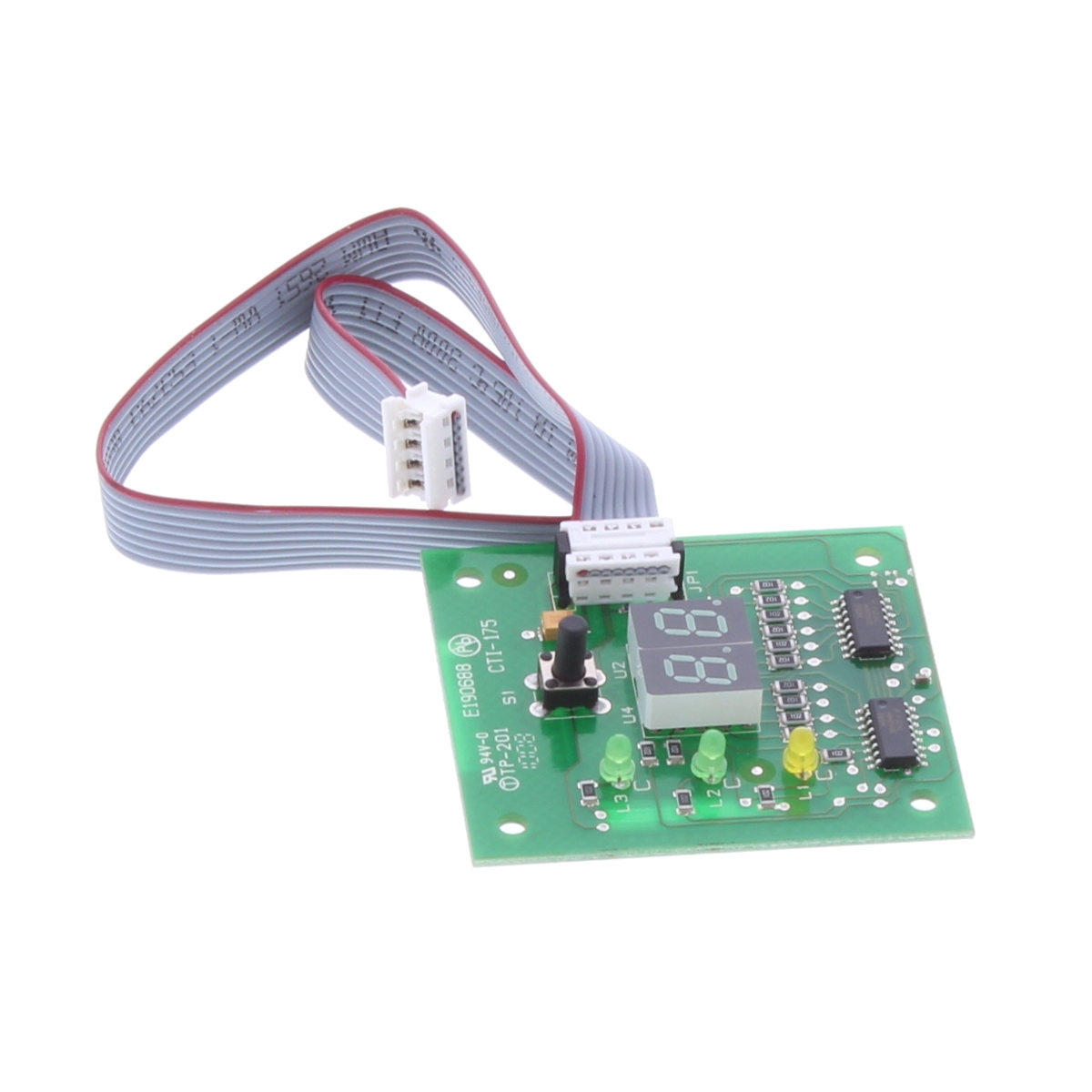

Ravenheat Digital Display Board 0012CIR11020/0
At a glance
- Part type: Printed circuit board (digital display board)
- Appliance family: Ravenheat CSI Low NOX
- Also known as DIGITAL-DISPLAY-BOARD---CSI120150, RAVENHEAT0012CIR11020/0, 1841601
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£88.38
£73.65 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0012CIR11020/0 is a digital display board — a printed circuit board (PCB) that forms the control centre of the appliance. It monitors and controls every process that occurs in the boiler via the sensors, thermostats and switches, and it enforces the safety measures that stop the appliance functioning when a fault condition is present. It is used across the Ravenheat CSI Low NOX boiler family.
Signs this part needs replacing
- The display is blank, dim or shows incomplete segments
- The boiler does not respond to the controls or runs without a readable status
- Repeated lockouts or fault codes that clear only temporarily
- The boiler fails to fire or cycles erratically with no obvious mechanical cause
- Visible damage, discolouration or moisture tracking on the board
Before you order
- Check the GC number or serial plate on the appliance against the compatibility list to confirm the correct board
- Confirm the model and variant, as LPG and natural gas versions of the same output use different listings
- Inspect the wiring loom and connectors before fitting, as damaged plugs can mimic board failure
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed circuit board |
|---|---|
| Appliance family | CSI Low NOX |
Compliance
| Manufacturer part number (MPN) | 0012CIR11020/0 |
|---|---|
| Barcode / EAN | 5060022143241 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 7625870409666, RAVENHEAT0012CIR11020/0, 0012CIR110200, RAVENHEAT0012CIR11020/0, 0012CIR110200, DIGITAL-DISPLAY-BOARD---CSI120150, RAVENHEAT0012CIR11020/0, RAVENHEAT0012CIR11020/0, 1841601 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 120 LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 LOW NOX NATURAL GAS | 47-581-37 | 47-581-37 | — | — |
| RAVENHEAT CSI 120 T LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 T LOW NOX NATURAL GAS | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT CSI 150 LOW NOX LPG | — | — | — | |
| RAVENHEAT CSI 150 LOW NOX NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 150 T LOW NOX LPG | 47-581-42 | 47-581-42 | — | — |
| RAVENHEAT CSI 150 T LOW NOX NATURAL GAS | 47-581-40 | 47-581-40 | — | — |
| RAVENHEAT HE 120N (T) LOW NOX | — | — | — | |
| RAVENHEAT HE 120N LOW NOX | — | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CSI 120 LOW NOX LPG (GC 47-581-38), CSI 120 LOW NOX NATURAL GAS (GC 47-581-37), CSI 120 T LOW NOX LPG (GC 47-581-38), CSI 120 T LOW NOX NATURAL GAS (GC 47-581-39), CSI 150 LOW NOX LPG, CSI 150 LOW NOX NATURAL GAS, CSI 150 T LOW NOX LPG (GC 47-581-42), CSI 150 T LOW NOX NATURAL GAS (GC 47-581-40)
manualmanualRAVENHEAT appliance manual — HE 120N (T) LOW NOX, HE 120N LOW NOX, HE 150N (T) LOW NOX, HE 150N LOW NOX
manualNo technical questions yet for this part.
