Ravenheat Printed Circuit Board Little Star LS 0012CIR09005/1

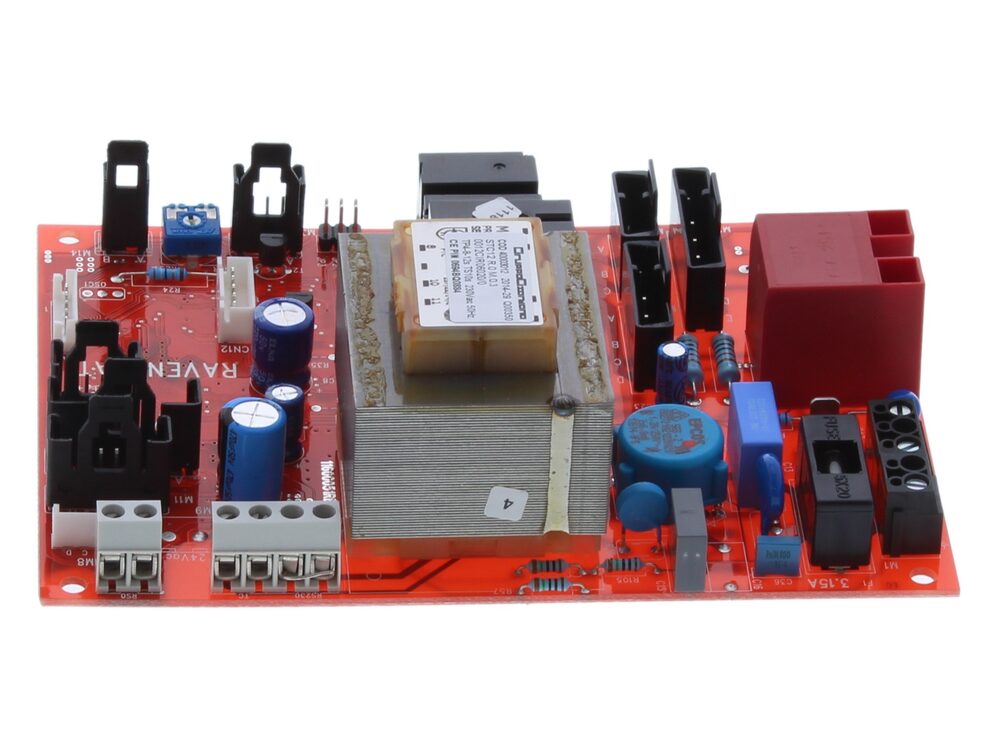

Printed circuit board for Ravenheat Little Star LS boilers, part 0012CIR09005/1, replacing previous number 0012GEN09005/1.
At a glance
- Part type: Printed circuit board (PCB)
- Appliance family: Little Star LS
- Also known as PCB-0904-LS80---MARK-2, RAVENHEAT0012CIR09005/1, 1840857
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£266.57
£222.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0012CIR09005/1 is a printed circuit board (PCB) supplied for Ravenheat Little Star LS boilers. It carries the control electronics that govern boiler sequencing, ignition and safety interlocks, so a failed board typically stops the appliance responding to demand. This board is listed against 22 Little Star LS variants, including LPG and natural gas versions of the LS 80 and LS 100.
Signs this part needs replacing
- The boiler does not respond to a call for heat, with no pump, fan or ignition sequence starting.
- The appliance locks out repeatedly, or locks out immediately after reset.
- Operation is intermittent, with the boiler cutting out mid-cycle without an obvious external cause.
- The display is blank, shows persistent fault codes, or the board shows visible heat damage or track burning.
- Fuses on the board blow again as soon as they are replaced.
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list before ordering, as several Little Star LS variants use different boards.
- If the existing board is marked 0012GEN09005/1, this part is the number to order in its place.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed circuit board (PCB) |
|---|---|
| Appliance family | Little Star LS |
Compliance
| Manufacturer part number (MPN) | 0012CIR09005/1 |
|---|---|
| Barcode / EAN | 5060022142633 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Electronic Circuit Accessories |
| Alternative numbers | 5060022142633, RAVENHEAT0012CIR09005/1, 0012CIR090051, RAVENHEAT0012CIR09005/1, 0012CIR090051, PCB-0904-LS80---MARK-2, RAVENHEAT0012CIR09005/1, RAVENHEAT0012CIR09005/1, 0012GEN09005/1, 1840857 |
| Previous numbers | 0012GEN09005/1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT LITTLE STAR LS 100 LPG | 47-581-35 | 47-581-35 | — | — |
| RAVENHEAT LITTLE STAR LS 100 NATURAL GAS | 47-581-33 | 47-581-33 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T LPG | 47-581-36 | 47-581-36 | — | — |
| RAVENHEAT LITTLE STAR LS 100 T NATURAL GAS | 47-581-34 | 47-581-34 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) LPG | 47-581-32 | 47-581-32 | — | — |
| RAVENHEAT LITTLE STAR LS 80 (T) NATURAL GAS | 47-581-30 | 47-581-30 | — | — |
| RAVENHEAT LITTLE STAR LS 80 LPG | 47-581-31 | 47-581-31 | — | — |
| RAVENHEAT LITTLE STAR LS 80 NATURAL GAS | 47-581-29 | 47-581-29 | — | — |
| RAVENHEAT RAVENHEAT LITTLE STAR LS100 | — | — | — | |
| RAVENHEAT RAVENHEAT LITTLE STAR LS100T | — | — | — |
Showing 10 of 22 compatible appliances.
