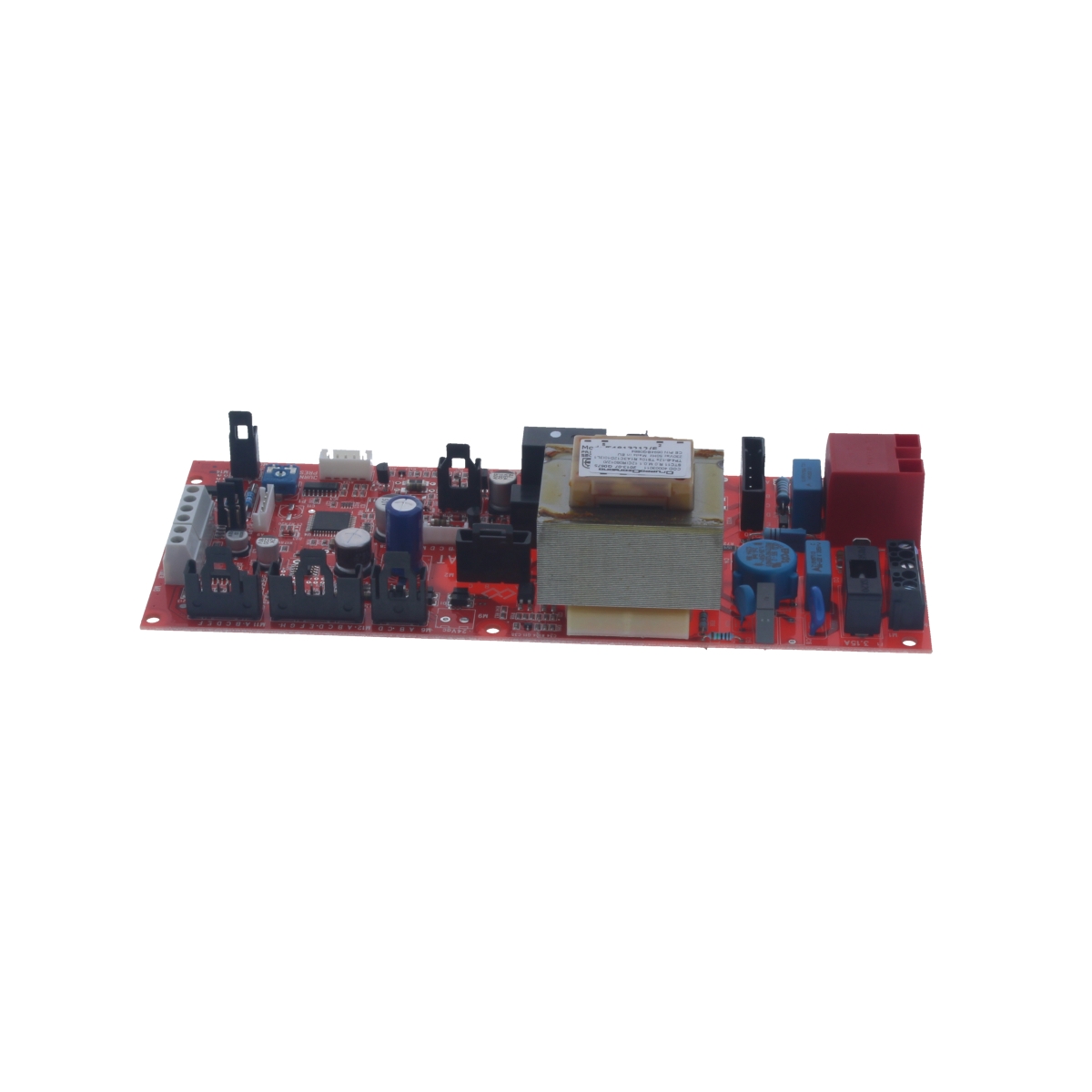

Ravenheat Ignition Control Board Red CSI Mod 0012CIR06012/0
At a glance
- Part type: Printed circuit board (ignition control board)
- Appliance family: Ravenheat CSI 85 and CSI 85T
- Also known as 1841591
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£266.57
£222.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat Red CSI Mod ignition control board is the printed circuit board that governs ignition and burner sequencing on Ravenheat CSI 85 and CSI 85T boilers. It reads inputs from the appliance's switches, sensors and thermostats, drives the ignition sequence, and enforces the safety protocols that shut the boiler down when a fault is detected. It is supplied as a replacement board for the CSI range.
Signs this part needs replacing
- The boiler fails to ignite and goes to lockout on a call for heat
- No response from the appliance when a demand is applied
- Intermittent firing or repeated lockout cycles during operation
- The burner sequence stops partway through start-up
- Fault behaviour traced back to the control board rather than the ignition or sensing components
Before you order
- Confirm the GC number on the appliance data badge matches one of the numbers listed in the compatibility list.
- Check whether the boiler is the LPG or natural gas variant, as the two take different boards.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed circuit board |
|---|---|
| Appliance family | CSI 85 / CSI 85T |
Compliance
| Manufacturer part number (MPN) | 0012CIR06012/0 |
|---|---|
| Barcode / EAN | 5060022143791 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1841591 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 85 LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT CSI 85 NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
| RAVENHEAT CSI 85T LPG | 47-581-24 | 47-581-24 | — | — |
| RAVENHEAT CSI 85T NATURAL GAS | 47-581-20 | 47-581-20 | — | — |
