Ravenheat

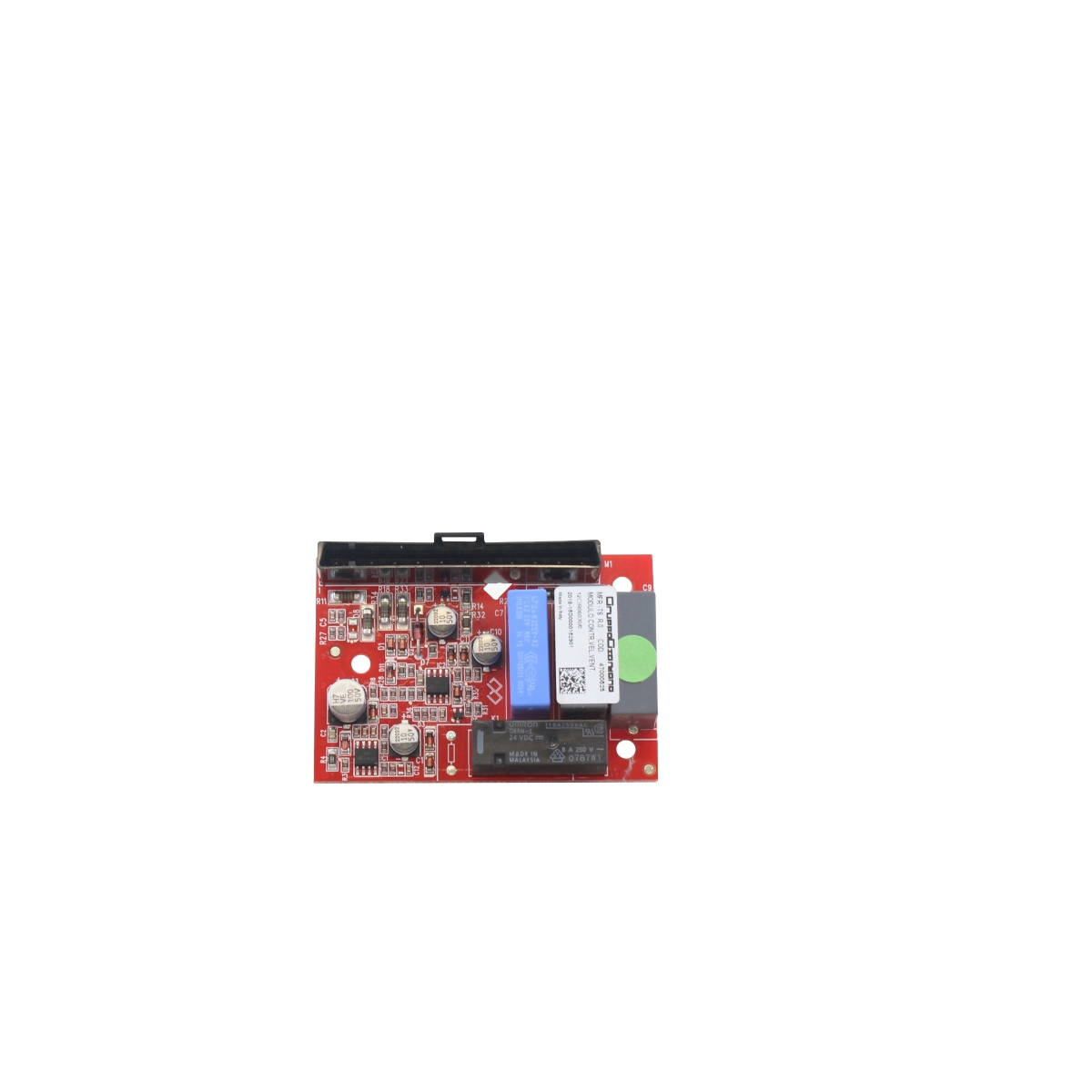

Ravenheat Fan Control PCB 0012CIR06010/0
At a glance
- Part type: Fan control printed circuit board (PCB)
- Also known as 1841173
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£90.02
£75.02 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0012CIR06010/0 is a fan control printed circuit board (PCB) supplied as a spare for Ravenheat gas boilers. As the control centre of the appliance, the board monitors and controls the processes that run through the switches, thermostats and sensors, and it enforces the safety parameters that stop the boiler operating when conditions fall outside its limits. This board is specific to the fan control function within the CSI range.
Signs this part needs replacing
- The fan fails to start when the boiler receives a call for heat.
- The fan runs continuously, including when the appliance is not firing.
- The boiler locks out repeatedly, with the fan circuit identified during fault finding.
- Intermittent operation or lockouts that clear on reset and then return.
- Visible scorching, tracking or moisture damage on the board itself.
Before you order
- Check the appliance GC number and serial to confirm this board matches your model.
- Confirm whether your boiler carries the previous number 0012CIR06011/0 before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 0012CIR06010/0 |
|---|---|
| Barcode / EAN | 5060022142855 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 0012CIR06011/0, 1841173 |
| Previous numbers | 0012CIR06011/0 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 85 AAA LPG | — | — | — | |
| RAVENHEAT CSI 85 AAA NATURAL GAS | 47-581-43 | 47-581-43 | — | — |
| RAVENHEAT CSI 85 AAAT LPG | — | — | — | |
| RAVENHEAT CSI 85 AAAT NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85 LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT CSI 85 NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
| RAVENHEAT CSI 85A LPG | — | — | — | |
| RAVENHEAT CSI 85A NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85A T LPG | — | — | — | |
| RAVENHEAT CSI 85A T NATURAL GAS | — | — | — |
Showing 10 of 35 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CSI 85 AAA LPG, CSI 85 AAA NATURAL GAS (GC 47-581-43), CSI 85 AAAT LPG, CSI 85 AAAT NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI 85 LPG (GC 47-581-23), CSI 85 NATURAL GAS (GC 47-581-19), CSI 85T LPG (GC 47-581-24), CSI 85T NATURAL GAS (GC 47-581-20)
manualmanualRAVENHEAT appliance manual — CSI 85A LPG, CSI 85A NATURAL GAS, CSI 85A T LPG, CSI 85A T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI PRIMARY AAA LPG (GC 47-581-06), CSI PRIMARY AAA NATURAL GAS (GC 47-581-05)
manualmanualRAVENHEAT appliance manual — CSI PRIMARY LPG (GC 41-581-06), CSI PRIMARY NATURAL GAS (GC 41-581-05), CSI PRIMARY WITH TIMER LPG, CSI PRIMARY WITH TIMER NATURAL GAS
manualmanualRAVENHEAT appliance manual — HE PRIMARY AAA LPG (GC 47-581-06), HE PRIMARY AAA NATURAL GAS (GC 47-581-05)
manualNo technical questions yet for this part.
