Ravenheat

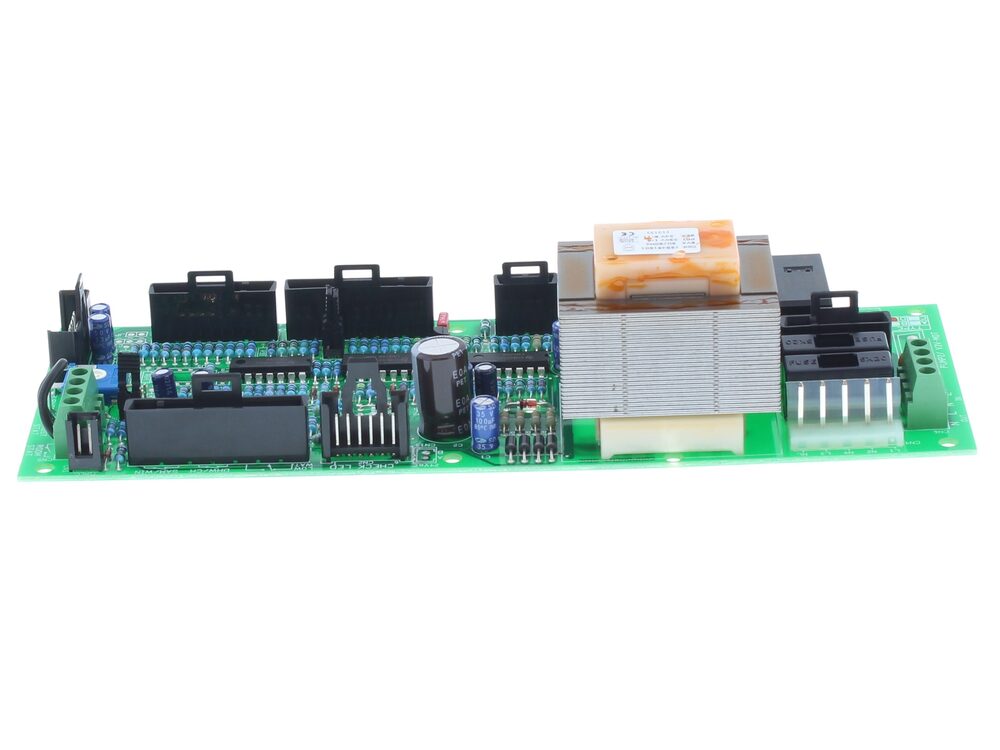

Ravenheat Printed Circuit Board CSI 85 0012CIR05005/2
At a glance
- Part type: Printed circuit board
- Also known as 1840833
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£242.62
£202.18 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The 0012CIR05005/2 is a printed circuit board supplied by Ravenheat for its CSI range of gas boilers. It is the main control board, handling ignition sequencing, fan and pump control, temperature monitoring and fault signalling across the appliance. The board is a direct replacement item for the original fitted unit and is listed against the CSI 85 and CSI 85A family.
Signs this part needs replacing
- The boiler has no display or no power at the control panel despite a live supply.
- The appliance locks out repeatedly and will not complete an ignition sequence.
- The fan, pump or diverter runs erratically, continuously, or not at all.
- Fault codes appear that clear only briefly before returning.
- The boiler fires intermittently or shuts down mid-cycle without a demand change.
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the board matches your model.
- Confirm the number on the existing board reads 0012CIR05005/2 or the alternative number 1840833 before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed circuit board |
|---|
Compliance
| Manufacturer part number (MPN) | 0012CIR05005/2 |
|---|---|
| GC number | 47-581-20 |
| Barcode / EAN | 5060022146235 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Electronic Circuit Accessories |
| Alternative numbers | 1840833 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 85 LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT CSI 85 NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
| RAVENHEAT CSI 85A NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85A T NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85T LPG | 47-581-24 | 47-581-24 | — | — |
| RAVENHEAT CSI 85T NATURAL GAS | 47-581-20 | 47-581-20 | — | — |
| RAVENHEAT RAVENHEAT CSI 85 | — | — | — | |
| RAVENHEAT RAVENHEAT CSI 85B | — | — | — | |
| RAVENHEAT RAVENHEAT CSI 85BT | — | — | — | |
| RAVENHEAT RAVENHEAT CSI 85T | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
