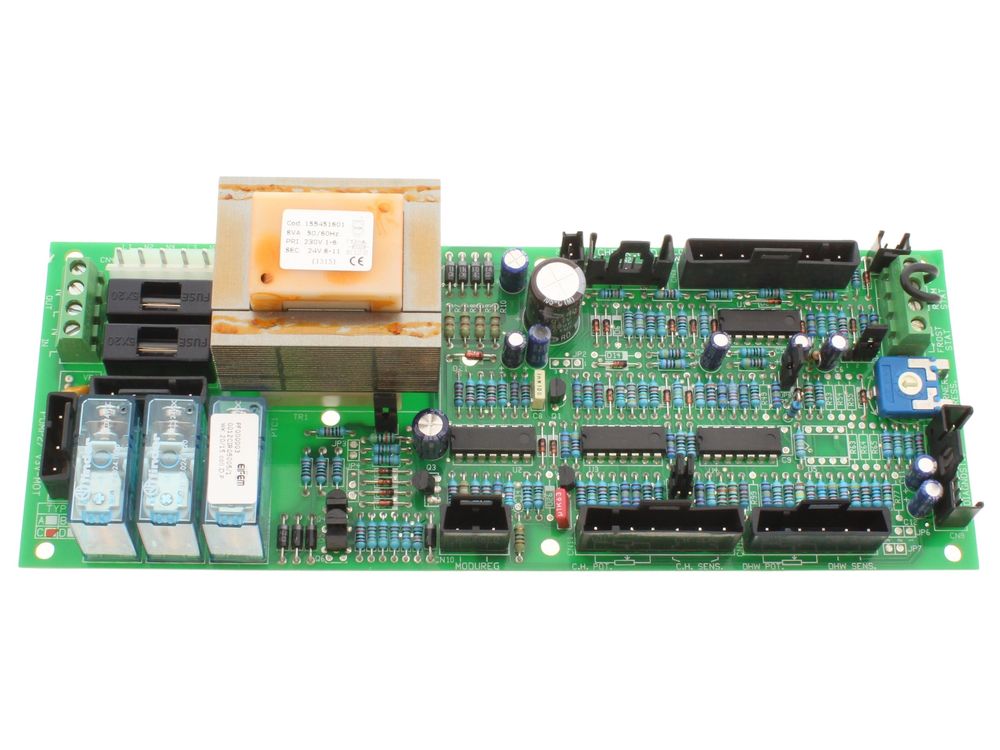

Ravenheat Printed Control Board 0012CIR05005/1
Printed control board for Ravenheat CSI System boilers, managing ignition, sequencing and safety functions.
At a glance
- Appliance family: CSI System
- Also known as PRINTED-CONTROL-BOARD-SYSTEM, 1840827
£222.17
£185.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The printed control board is the main electronic controller for Ravenheat CSI System boilers. It manages ignition sequencing, flame supervision, pump and fan operation, and safety lockout functions. This board is the CSI System variant supplied under part number 0012CIR05005/1.
Signs this part needs replacing
- Boiler fails to fire or locks out repeatedly with no fault code progression
- No display, no LEDs, or a completely dead control panel
- Fan, pump or ignition sequence does not start when demand is present
- Erratic or intermittent operation, including random lockouts and resets
- Visible damage, burning, scorching or corrosion on the board
Before you order
- Confirm your boiler model against the CSI System fit list above
- Check the part number printed on the existing board matches 0012CIR05005/1
- Inspect connector layout and pin count against the board being replaced
- Verify the boiler variant (LPG or natural gas) matches the appliance being worked on
Compliance
| Barcode / EAN | 5060022146228 |
|---|---|
| Alternative numbers | PRINTED-CONTROL-BOARD-SYSTEM, 1840827 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI SYSTEM AAA LPG | — | — | — | |
| RAVENHEAT CSI SYSTEM AAA NATURAL GAS | — | — | — | |
| RAVENHEAT CSI SYSTEM AAA T LPG | — | — | — | |
| RAVENHEAT CSI SYSTEM AAA T NATURAL GAS | — | — | — | |
| RAVENHEAT CSI SYSTEM LPG | 47-581-03 | 47-581-03 | — | — |
| RAVENHEAT CSI SYSTEM NATURAL GAS | 47-581-01 | 47-581-01 | — | — |
| RAVENHEAT CSI SYSTEM T LPG | 41-581-04 | 41-581-04 | — | — |
| RAVENHEAT CSI SYSTEM T NATURAL GAS | 47-581-02 | 47-581-02 | — | — |
| RAVENHEAT RAVENHEAT CSI SYSTEM | — | — | — | |
| RAVENHEAT RAVENHEAT CSI SYSTEM AAA NG | — | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CSI SYSTEM AAA LPG, CSI SYSTEM AAA NATURAL GAS, CSI SYSTEM AAA T LPG, CSI SYSTEM AAA T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI SYSTEM LPG (GC 47-581-03), CSI SYSTEM NATURAL GAS (GC 47-581-01), CSI SYSTEM T LPG (GC 41-581-04), CSI SYSTEM T NATURAL GAS (GC 47-581-02)
manualNo technical questions yet for this part.
