Ravenheat

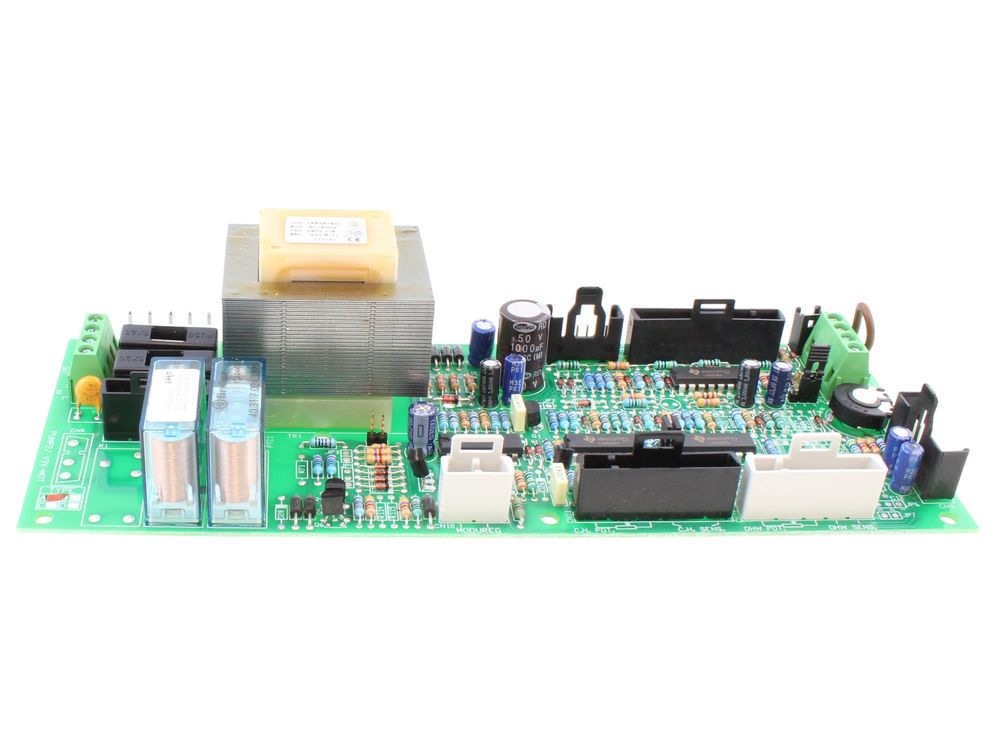

Ravenheat Printed Control Board MK1 Version 0012CIR05005/0
At a glance
- Part type: Printed control board (PCB)
- Also known as 1840821
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£222.17
£185.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0012CIR05005/0 is a printed control board (PCB) used in Ravenheat RSF range boilers. It is the MK1 version of the board, which works alongside a separate ignition board. The PCB carries the boiler's programmed operating routines, sequencing ignition and managing the fan, pump and gas valve through each demand for heat and hot water.
Signs this part needs replacing
- The boiler locks out and will not fire, or resets repeatedly without completing a cycle
- No response from the controls, thermostat demand or any indicator on the appliance
- The fan, pump or gas valve is not energised when there is a call for heat or hot water
- Intermittent operation, with the boiler running normally on some demands and failing on others
- Visible heat damage, corrosion or tracking on the board itself
Before you order
- Check the GC number and data plate on the appliance to confirm the model before ordering
- Confirm the boiler is the MK1 version, as MK1 appliances use a separate ignition board
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed control board (PCB) |
|---|
Compliance
| Manufacturer part number (MPN) | 0012CIR05005/0 |
|---|---|
| GC number | E24-627 |
| Barcode / EAN | 5060022146211 |
| Commodity code | 8537 10 98 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | PRINTED-CONTROL-BOARD-RSF, 0012CIR05010/0, 1840821 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT RAVENHEAT RSF 100E | — | — | — | |
| RAVENHEAT RAVENHEAT RSF 100ET | — | — | — | |
| RAVENHEAT RAVENHEAT RSF 82E | — | — | — | |
| RAVENHEAT RAVENHEAT RSF 82ET | — | — | — | |
| RAVENHEAT RAVENHEAT RSF 84E | — | — | — | |
| RAVENHEAT RAVENHEAT RSF 84ET | — | — | — | |
| RAVENHEAT RSF 100E LPG | — | — | — | |
| RAVENHEAT RSF 100E NATURAL GAS | 47-581-25 | 47-581-25 | — | — |
| RAVENHEAT RSF 100E T LPG | — | — | — | |
| RAVENHEAT RSF 100E T NATURAL GAS | 47-581-26 | 47-581-26 | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — RSF 100E LPG, RSF 100E NATURAL GAS (GC 47-581-25), RSF 100E T LPG, RSF 100E T NATURAL GAS (GC 47-581-26), RSF 84E LPG, RSF 84E NATURAL GAS (GC 47-581-27), RSF 84E T LPG, RSF 84E T NATURAL GAS (GC 47-581-28)
manualmanualRAVENHEAT appliance manual — RSF 82E LPG, RSF 82E NATURAL GAS (GC 47-581-18), RSF 82E T LPG, RSF 82E T NATURAL GAS (GC 47-581-04)
manualNo technical questions yet for this part.
