Ravenheat

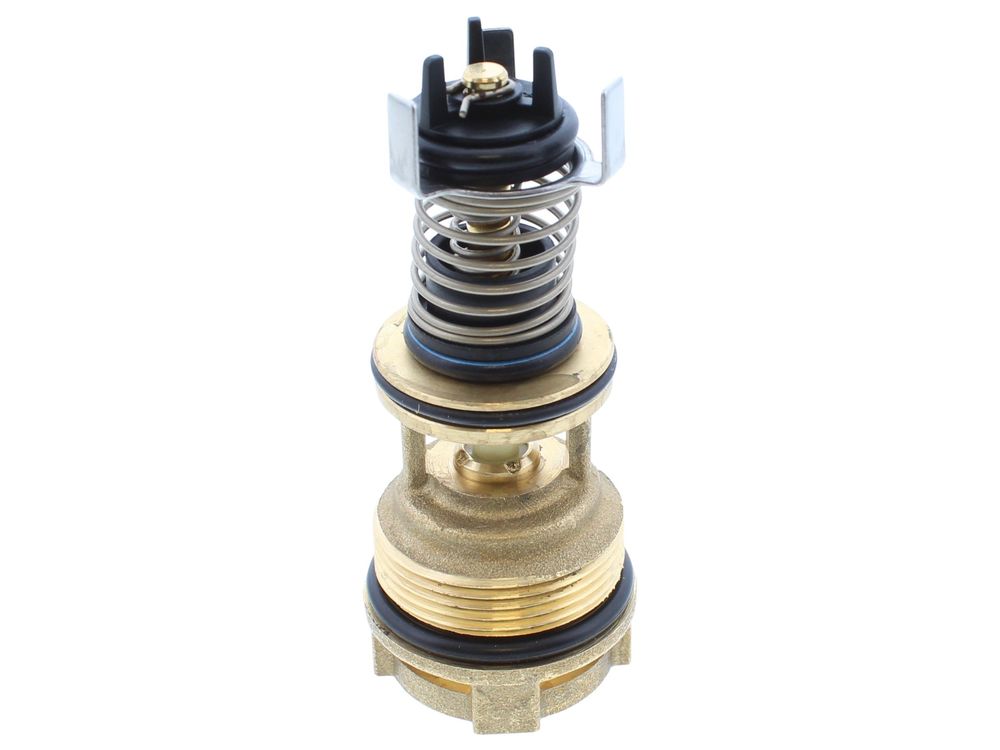

Ravenheat Diverter Valve Head 0011TRA11000/0
Diverter valve head with spring assembly for Ravenheat combi and White HEAT boilers.
At a glance
- Also known as DIV-VALVE-HEAD-COMP-WITH-SPRING-ASSEMBLY, 1840853
£108.55
£90.46 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 0011TRA11000/0 is a diverter valve head supplied complete with its spring assembly. It forms the actuating head of the diverter valve on Ravenheat combi and White HEAT appliances, directing flow between domestic hot water and central heating modes. The head is the moving section of the valve, separate from the valve body itself.
Signs this part needs replacing
- Domestic hot water runs cold or only lukewarm while the heating circuit is calling
- Radiators heat up when only hot water is demanded
- No hot water at the tap despite the boiler firing
- Diverter valve sticking or failing to change position between modes
- Water weeping from the head area of the diverter valve
Before you order
- Confirm your appliance model against the fitment list above, as the head is used across several Ravenheat ranges
- Check the part number on the existing head or valve body matches 0011TRA11000/0
- Establish whether the head alone has failed or whether the valve body also requires attention
- Verify the spring assembly is present and undamaged on the replacement before fitting
Compliance
| Alternative numbers | DIV-VALVE-HEAD-COMP-WITH-SPRING-ASSEMBLY, 1840853 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT 120 COMBISTORE (T) LOW NOX | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT 150 COMBISTORE (T) LOW NOX | 47-581-40 | 47-581-40 | — | — |
| RAVENHEAT CSI 120 LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 LOW NOX NATURAL GAS | 47-581-37 | 47-581-37 | — | — |
| RAVENHEAT CSI 120 T COMBIPLUS LOW NOX | — | — | — | |
| RAVENHEAT CSI 120 T LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 T LOW NOX NATURAL GAS | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT CSI 150 LOW NOX LPG | — | — | — | |
| RAVENHEAT CSI 150 LOW NOX NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 150 T COMBIPLUS LOW NOX | — | — | — |
Showing 10 of 34 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — 120 COMBISTORE (T) LOW NOX (GC 47-581-39), 150 COMBISTORE (T) LOW NOX (GC 47-581-40), CSI 120 T COMBIPLUS LOW NOX, CSI 150 T COMBIPLUS LOW NOX
manualmanualRAVENHEAT appliance manual — CSI 120 LOW NOX LPG (GC 47-581-38), CSI 120 LOW NOX NATURAL GAS (GC 47-581-37), CSI 120 T LOW NOX LPG (GC 47-581-38), CSI 120 T LOW NOX NATURAL GAS (GC 47-581-39), CSI 150 LOW NOX LPG, CSI 150 LOW NOX NATURAL GAS, CSI 150 T LOW NOX LPG (GC 47-581-42), CSI 150 T LOW NOX NATURAL GAS (GC 47-581-40)
manualmanualRAVENHEAT appliance manual — HE 120N (T) LOW NOX, HE 120N LOW NOX, HE 150N (T) LOW NOX, HE 150N LOW NOX
manualmanualRAVENHEAT appliance manual — WHITE HEAT WH 100 LPG, WHITE HEAT WH 100 NAT GAS, WHITE HEAT WH 100 T LPG (GC 47-506-02), WHITE HEAT WH 100 T NAT GAS (GC 47-506-01), WHITE HEAT WH 130 LPG (GC 47-506-03), WHITE HEAT WH 130 NAT GAS (GC 47-506-03), WHITE HEAT WH 130 T LPG (GC 47-506-04), WHITE HEAT WH 130 T NAT GAS (GC 47-506-03)
manualNo technical questions yet for this part.
