Ravenheat

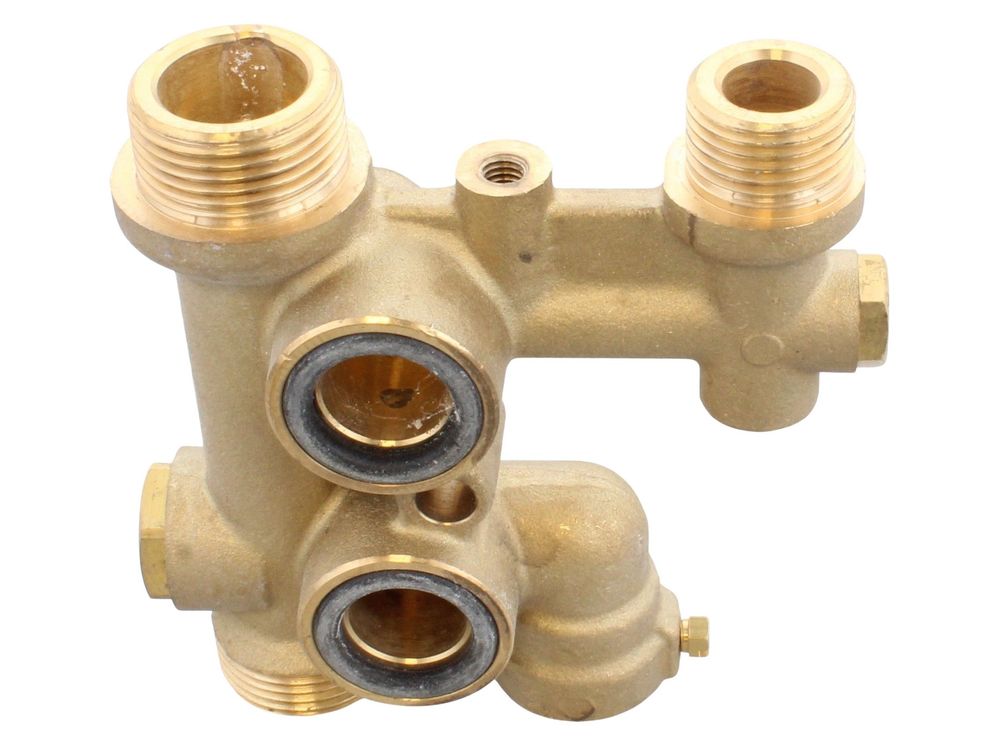

Ravenheat Flow Manifold 0011GRU11005/0
Flow manifold for Ravenheat gas boilers, part number 0011GRU11005/0.
At a glance
- Also known as 1841543
- Work on gas appliances must be carried out by a Gas Safe registered engineer
£78.37
£65.31 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat flow manifold (part number 0011GRU11005/0) is a component within the diverter valve assembly of Ravenheat gas boilers. It routes water through the diverter valve, which controls the changeover between domestic hot water and central heating operation. This part is listed under gas boiler spares for the Ravenheat appliance range.
Signs this part needs replacing
- Water leaking from the diverter valve area
- Reduced or intermittent hot water flow
- Unstable domestic hot water temperature
- Visible cracks, scale build-up or damage on the manifold
- Diverter valve failing to switch between heating and hot water
Before you order
- Confirm your boiler model and GC number against the fitment list above
- Check the existing part number 0011GRU11005/0 on the component
- Inspect the diverter valve assembly for related wear
- Work on gas appliances must be carried out by a Gas Safe registered engineer
Compliance
| Barcode / EAN | 5060022143814 |
|---|---|
| Alternative numbers | 1841543 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT 120 COMBISTORE (T) LOW NOX | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT 150 COMBISTORE (T) LOW NOX | 47-581-40 | 47-581-40 | — | — |
| RAVENHEAT CSI 120 LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 LOW NOX NATURAL GAS | 47-581-37 | 47-581-37 | — | — |
| RAVENHEAT CSI 120 T COMBIPLUS LOW NOX | — | — | — | |
| RAVENHEAT CSI 120 T LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 T LOW NOX NATURAL GAS | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT CSI 150 LOW NOX LPG | — | — | — | |
| RAVENHEAT CSI 150 LOW NOX NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 150 T COMBIPLUS LOW NOX | — | — | — |
Showing 10 of 40 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — 120 COMBISTORE (T) LOW NOX (GC 47-581-39), 150 COMBISTORE (T) LOW NOX (GC 47-581-40), CSI 120 T COMBIPLUS LOW NOX, CSI 150 T COMBIPLUS LOW NOX
manualmanualRAVENHEAT appliance manual — CSI 120 LOW NOX LPG (GC 47-581-38), CSI 120 LOW NOX NATURAL GAS (GC 47-581-37), CSI 120 T LOW NOX LPG (GC 47-581-38), CSI 120 T LOW NOX NATURAL GAS (GC 47-581-39), CSI 150 LOW NOX LPG, CSI 150 LOW NOX NATURAL GAS, CSI 150 T LOW NOX LPG (GC 47-581-42), CSI 150 T LOW NOX NATURAL GAS (GC 47-581-40)
manualmanualRAVENHEAT appliance manual — CSI 85 AAA LPG, CSI 85 AAA NATURAL GAS (GC 47-581-43), CSI 85 AAAT LPG, CSI 85 AAAT NATURAL GAS
manualmanualRAVENHEAT appliance manual — HE 120N (T) LOW NOX, HE 120N LOW NOX, HE 150N (T) LOW NOX, HE 150N LOW NOX
manualmanualRAVENHEAT appliance manual — WHITE HEAT WH 100 LPG, WHITE HEAT WH 100 NAT GAS, WHITE HEAT WH 100 T LPG (GC 47-506-02), WHITE HEAT WH 100 T NAT GAS (GC 47-506-01), WHITE HEAT WH 130 LPG (GC 47-506-03), WHITE HEAT WH 130 NAT GAS (GC 47-506-03), WHITE HEAT WH 130 T LPG (GC 47-506-04), WHITE HEAT WH 130 T NAT GAS (GC 47-506-03)
manualNo technical questions yet for this part.
